Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

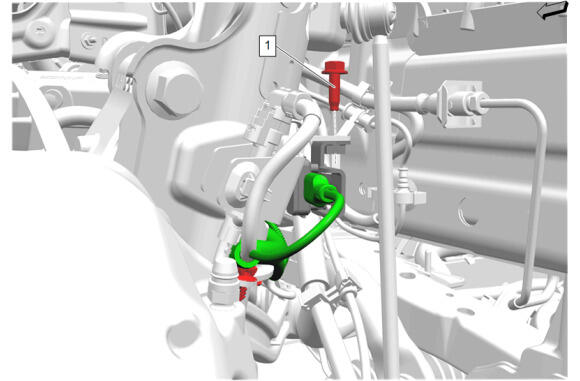

Electronic Suspension Rear Vertical Accelerometer Replacement (FE3, F55)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Rear Vertical Accelerometer Bolt | - | - | 9 N.m (7 lb ft) | Electronic Suspension Rear Vertical Accelerometer Replacement (FE3, F55) , or Electronic Suspension Rear Vertical Accelerometer Replacement (FE4, F55) |
Electronic Suspension Rear Vertical Accelerometer Replacement (FE4, F55)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Rear Vertical Accelerometer Bolt | - | - | 9 N.m (7 lb ft) | Electronic Suspension Rear Vertical Accelerometer Replacement (FE3, F55) , or Electronic Suspension Rear Vertical Accelerometer Replacement (FE4, F55) |

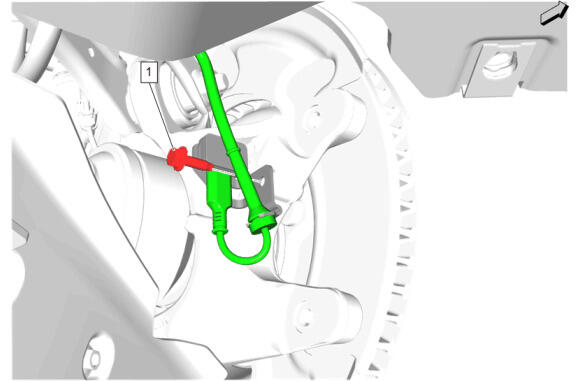

Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE3, F55)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Front Vertical Accelerometer Bolt | - | - | 9 N.m (7 lb ft) | Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE3, F55) , or Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE4, F55) |
Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE4, F55)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Front Vertical Accelerometer Bolt | - | - | 9 N.m (7 lb ft) | Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE3, F55) , or Electronic Suspension Wheel Front Vertical Accelerometer Replacement (FE4, F55) |

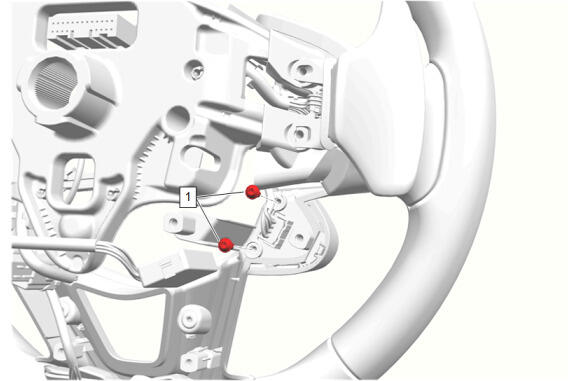

Ride Control Switch Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Bolt @ Ride Control Switch [2x] | - | - | 0.8 N.m (7.1 lb in) | Ride Control Switch Replacement (Blackwing with MHU) , or Ride Control Switch Replacement (Blackwing with MG9) |
