Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Drive Mode Selector Auxiliary Switch Replacement

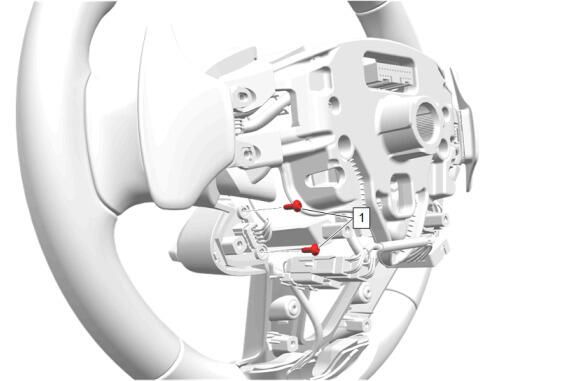

| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Bolt @ Drive Mode Selector Auxiliary Switch [2x] | - | - | 0.8 N.m (7.1 lb in) | Drive Mode Selector Auxiliary Switch Replacement - Steering Wheel (Blackwing with MHU) , or Drive Mode Selector Auxiliary Switch Replacement - Steering Wheel (Blackwing with MG9) |
