Body Control Module Shield Replacement
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the floor rear air outlet duct - right side front. Floor Rear Air Outlet Duct Replacement - Right Side (Equinox Front)Floor Rear Air Outlet Duct Replacement - Right Side (Eqionox Rear)Floor Rear Air Outlet Duct Replacement - Right Side (Terrain Front)Floor Rear Air Outlet Duct Replacement - Right Side (Terrain Rear) |
|

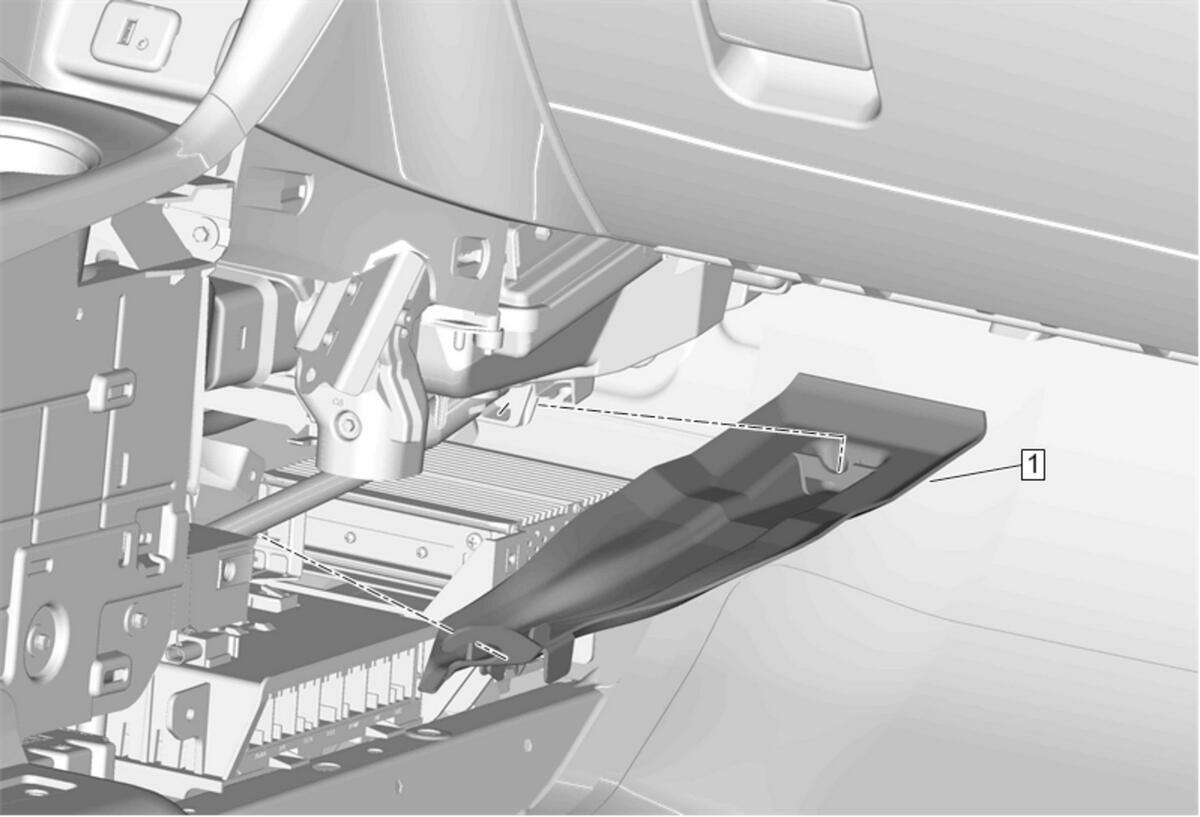

| 1 | Body Control Module Shield Procedure Reposition the wiring harness. |
