Lighting Control Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

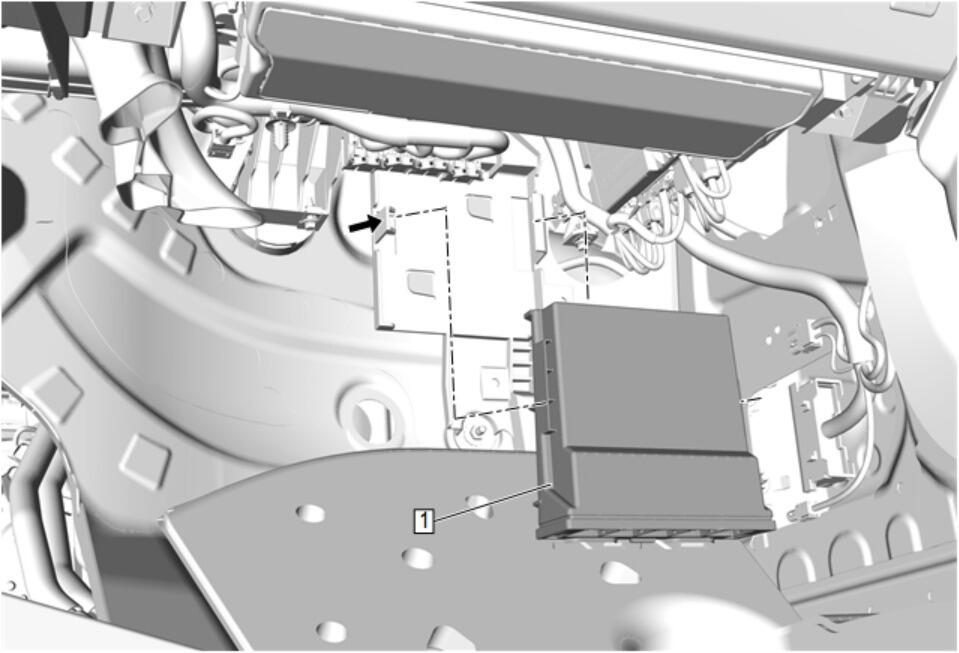

GM5335418Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1 Lighting Control Module

Procedure

  1. Reposition the front floor panel carpet as necessary.
  2. Disconnect the electrical connectors.
  3. Release the retaining tab.
  4. Perform the necessary programming and setup procedure: Control Module References
