Airbag Front End Discriminating Sensor Protector Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

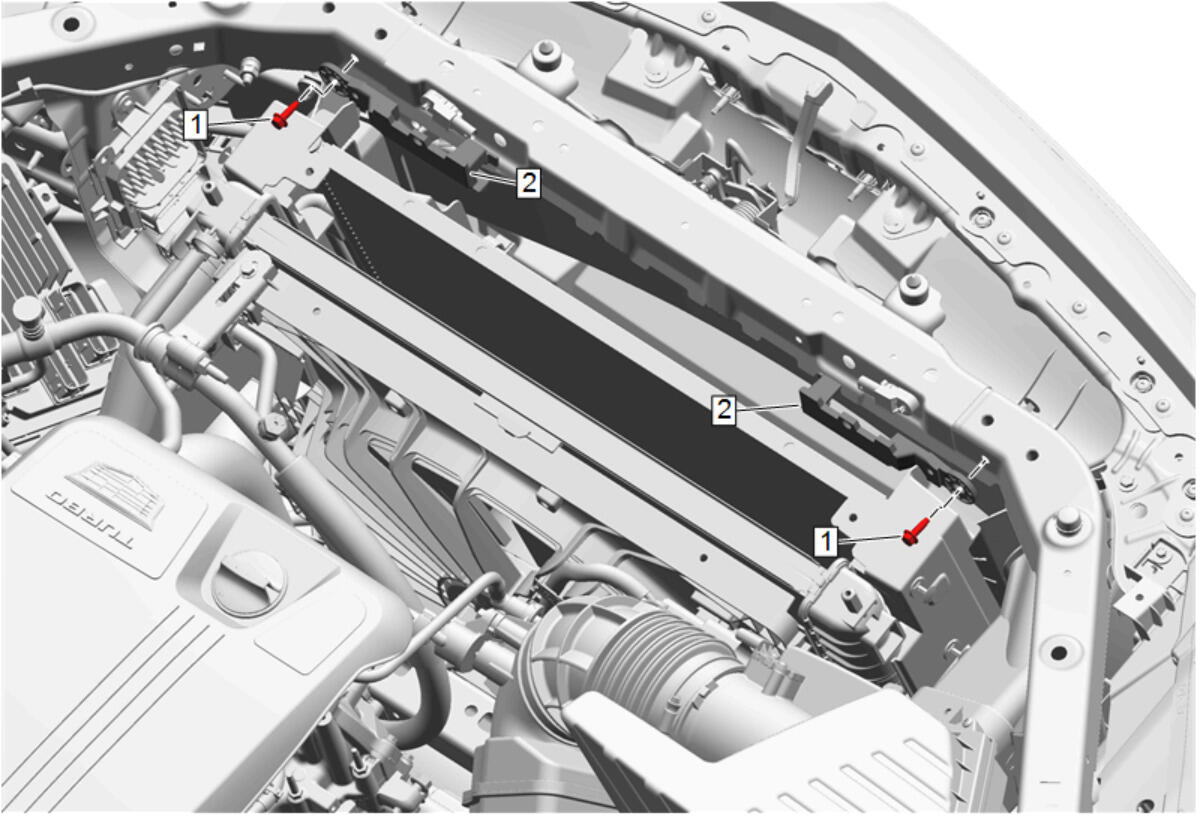

Callout	Component Name
Preliminary Procedures Radiator Air Upper Baffle Replacement (LSY)Radiator Air Upper Baffle Replacement (LGY)Radiator Air Upper Baffle Replacement (LT4) Radiator Upper Bracket Replacement - Left Side (LGY, LSY)Radiator Upper Bracket Replacement - Left Side (LT4) Radiator Upper Bracket Replacement - Right Side (LGY, LSY)Radiator Upper Bracket Replacement - Right Side (LT4)
1	Airbag Front End Discriminating Sensor Bolt [2x] CAUTION: Fastener Caution Tighten 9N.m (80 lb in)
2	Airbag Front End Discriminating Sensor Protector [2x]

Callout

Component Name

Preliminary Procedures

Radiator Air Upper Baffle Replacement (LSY)Radiator Air Upper Baffle Replacement (LGY)Radiator Air Upper Baffle Replacement (LT4)
Radiator Upper Bracket Replacement - Left Side (LGY, LSY)Radiator Upper Bracket Replacement - Left Side (LT4)
Radiator Upper Bracket Replacement - Right Side (LGY, LSY)Radiator Upper Bracket Replacement - Right Side (LT4)

Airbag Front End Discriminating Sensor Bolt [2x]

CAUTION:

Fastener Caution

Tighten
9N.m (80 lb in)

Airbag Front End Discriminating Sensor Protector [2x]
