Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

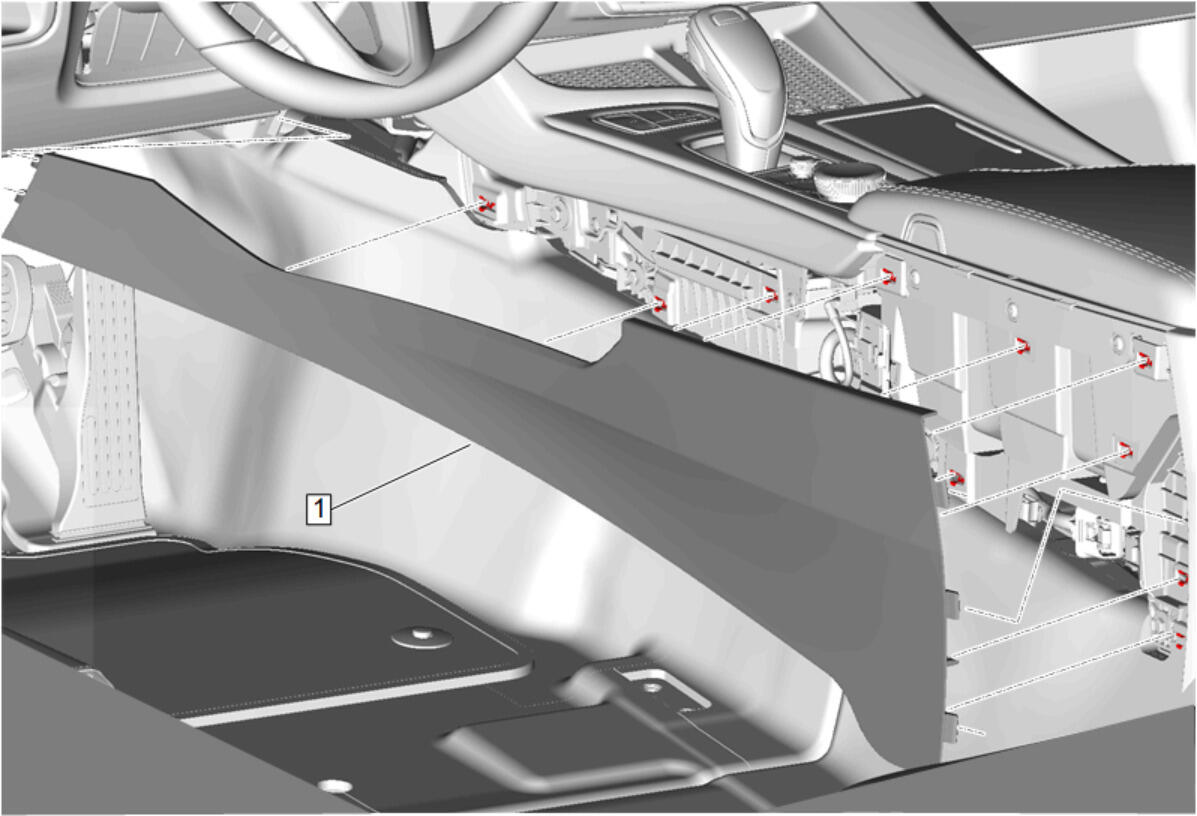

Front Floor Console Extension Panel - Right Side (1) - Remove - Front Floor Console Extension Panel Replacement - Right Side , or Front Floor Console Extension Panel Replacement - Right Side (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

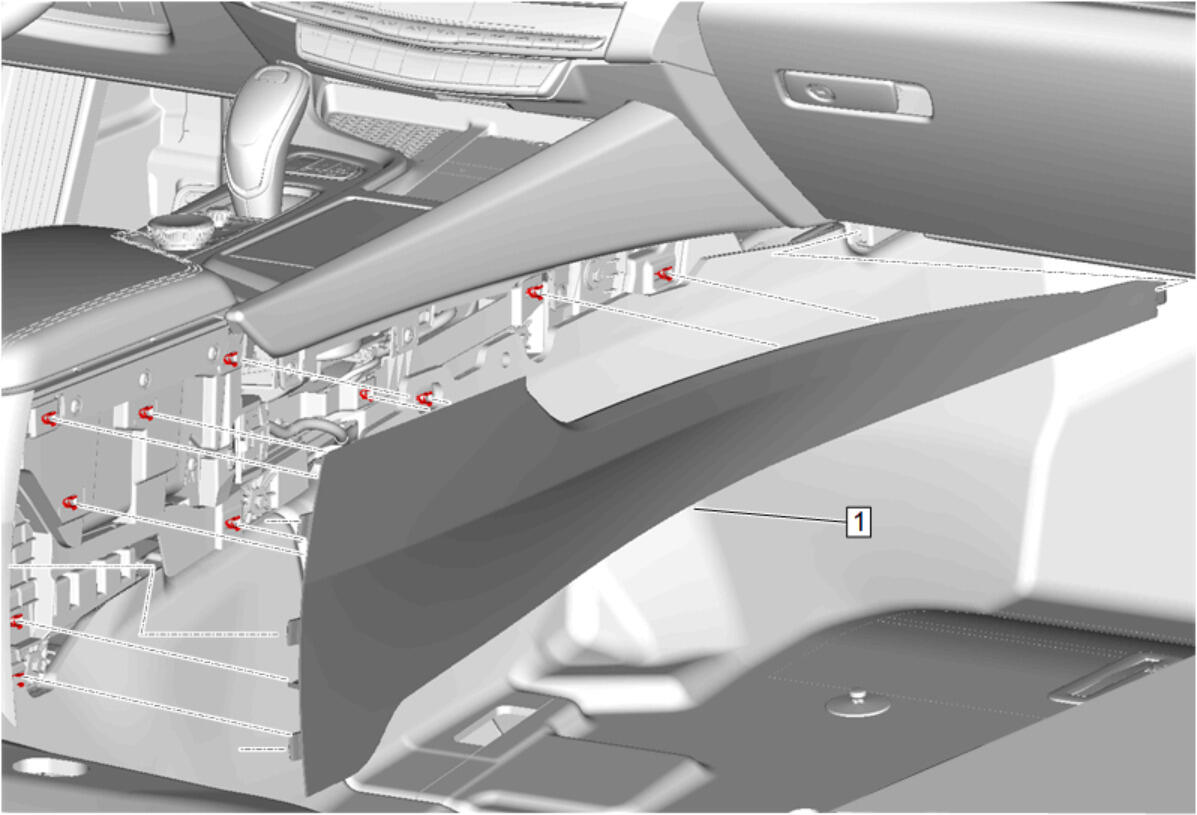

Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

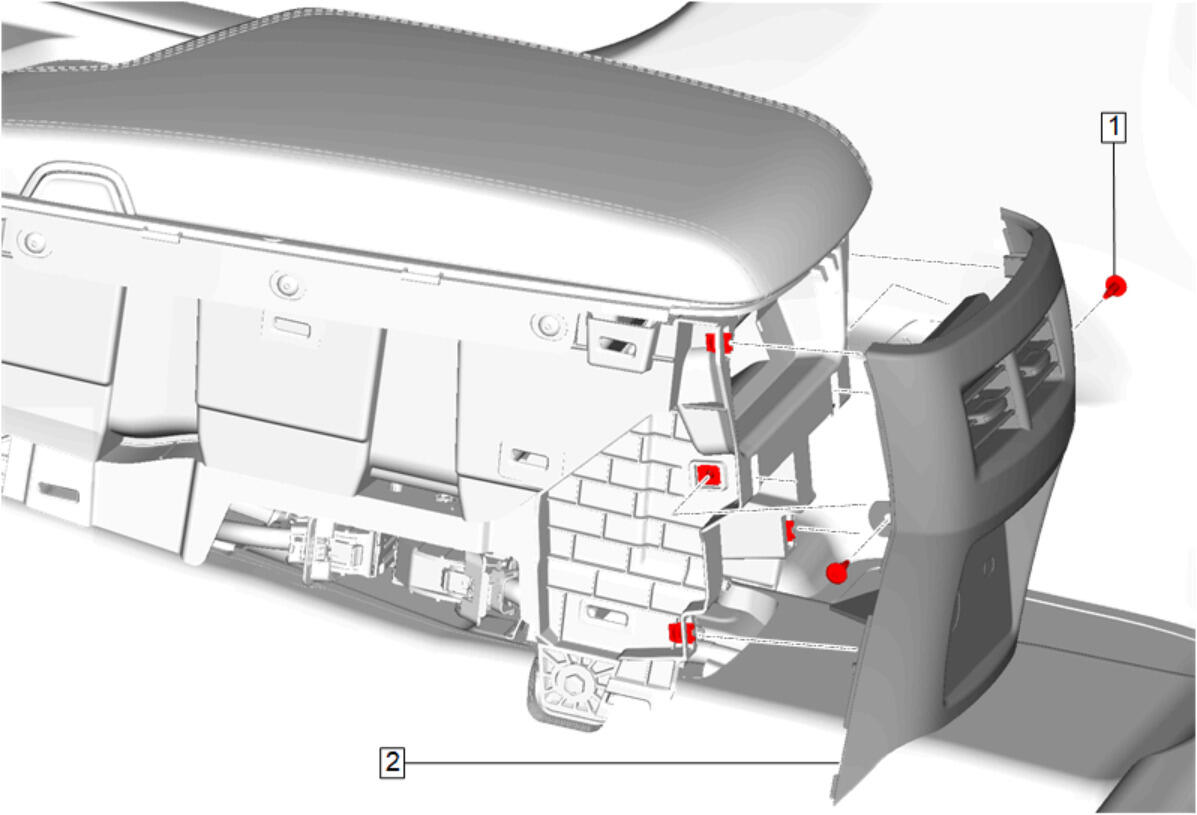

Front Floor Console Rear Trim Panel (2) - Remove - Front Floor Console Rear Trim Panel Replacement , or Front Floor Console Rear Trim Panel Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

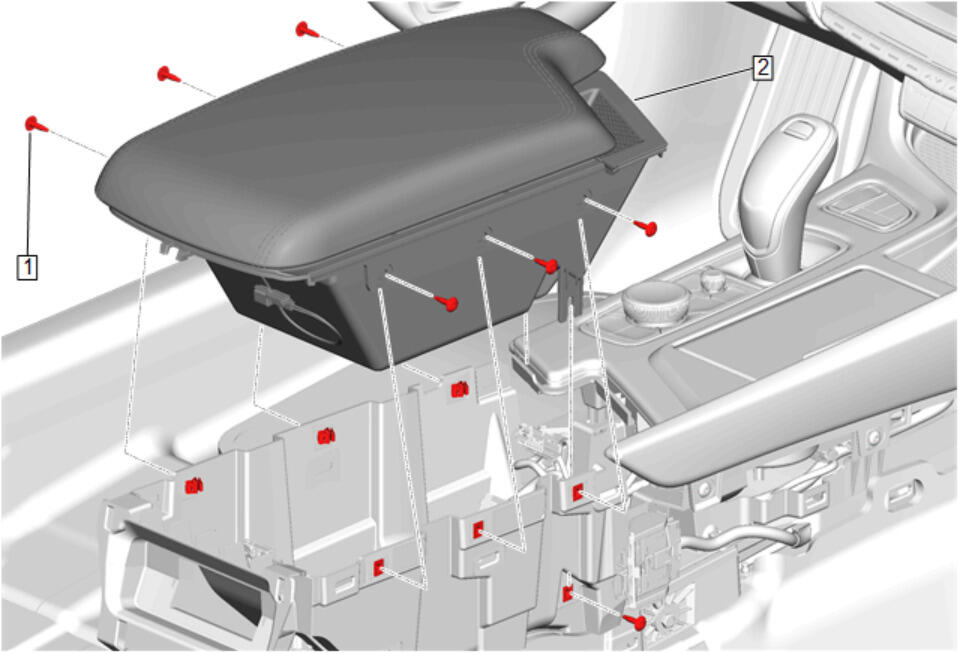

Front Floor Console Armrest (2) - Remove - Front Floor Console Armrest Replacement , or Front Floor Console Armrest Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

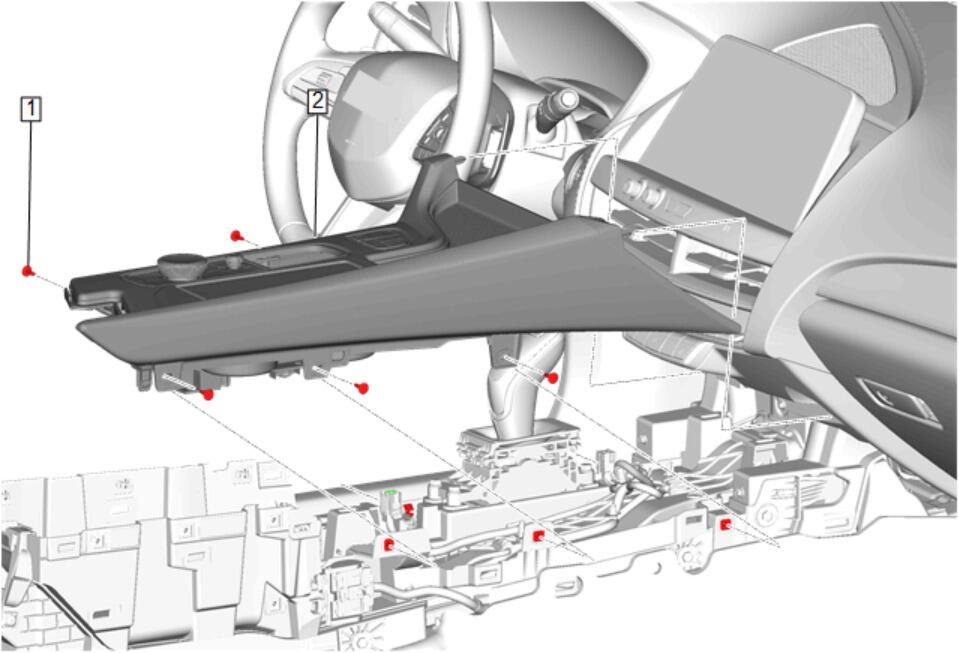

Front Floor Console Trim Plate (2) - Remove - Front Floor Console Trim Plate Replacement , or Front Floor Console Trim Plate Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

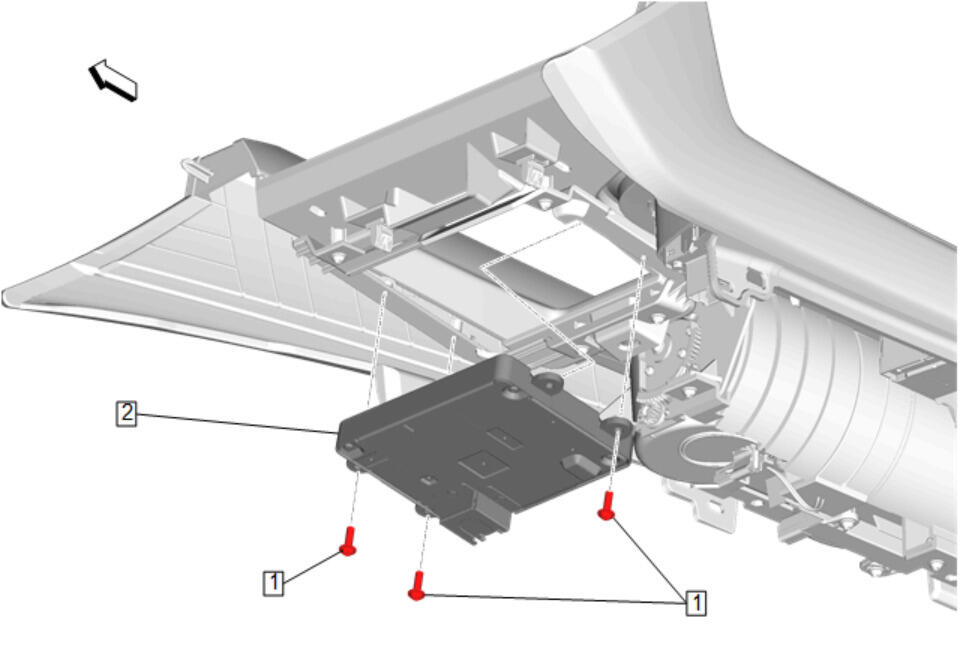

Wireless Charging System Module (2) - Remove - Wireless Charging System Module Replacement , or Wireless Charging System Module Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

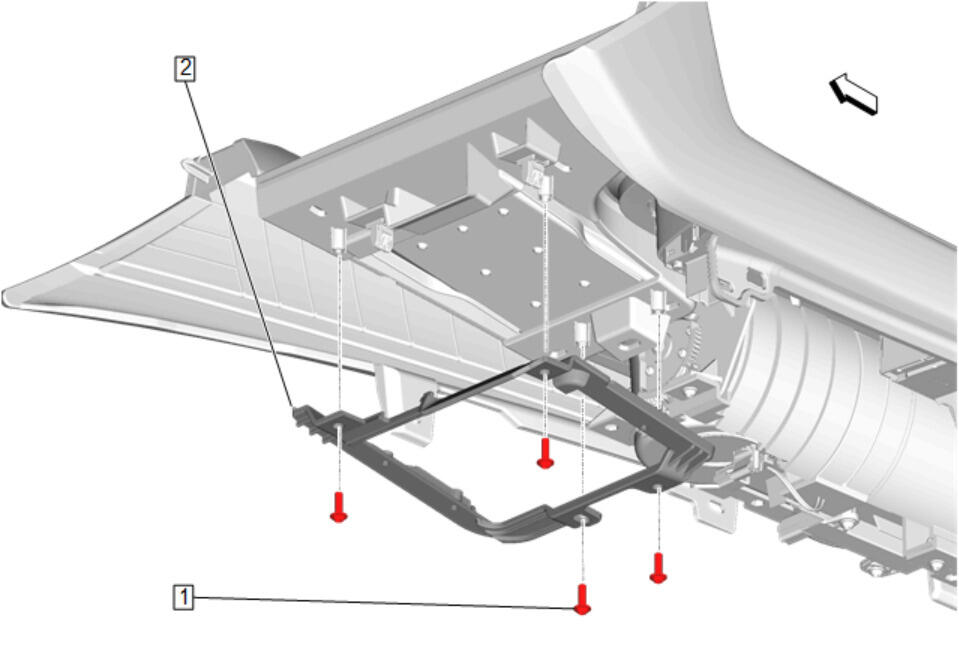

Wireless Charging System Module Bracket Bolt (1) - Remove [4x]
Wireless Charging System Module Bracket (2) - Remove
