Image Processing Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

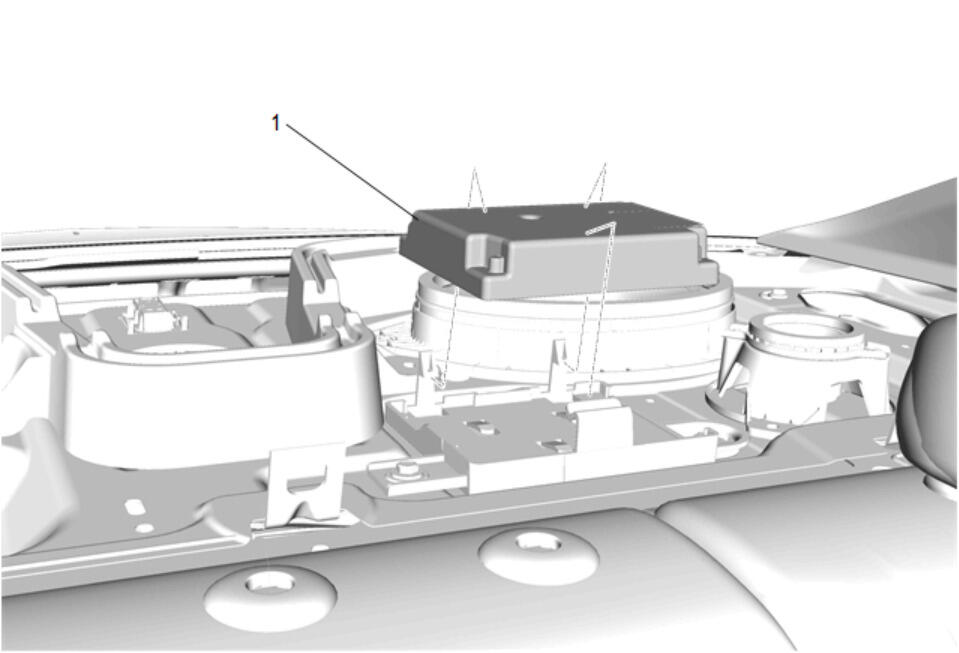

GM5330015Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Rear Window Panel Trim Replacement
1 Image Processing Module

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connectors.
  3. Perform the necessary programming and setup procedure:Control Module References
