Side Obstacle Detection Control Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

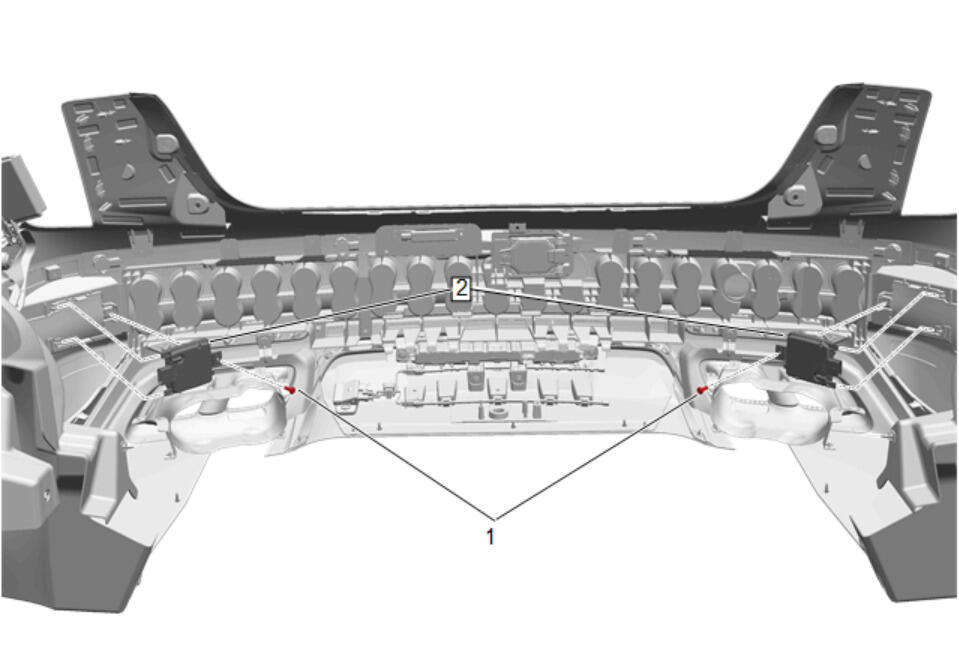

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
1	Side Object Sensing Alert Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5N.m (22 lb in)
2	Side Object Sensing Alert Module [2x] Procedure Disconnect the electrical connector. Slide the module out of the retaining bracket. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)

Side Object Sensing Alert Module Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5N.m (22 lb in)

Side Object Sensing Alert Module [2x]

Procedure

Disconnect the electrical connector.
Slide the module out of the retaining bracket.
Perform the necessary programming and setup procedure:Control Module References
