Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

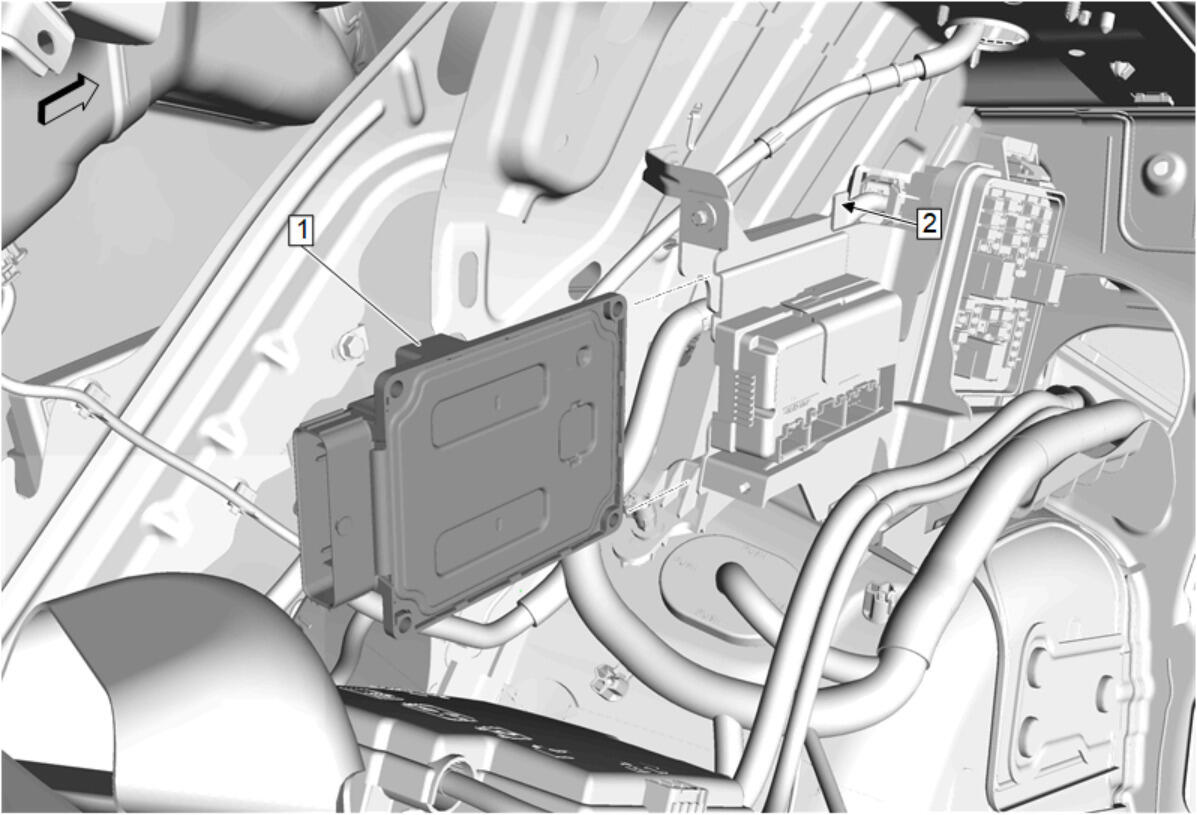

- Slide the electronic suspension control module (1) into the rear body fuse block bracket until the retaining tab (2) is engaged.

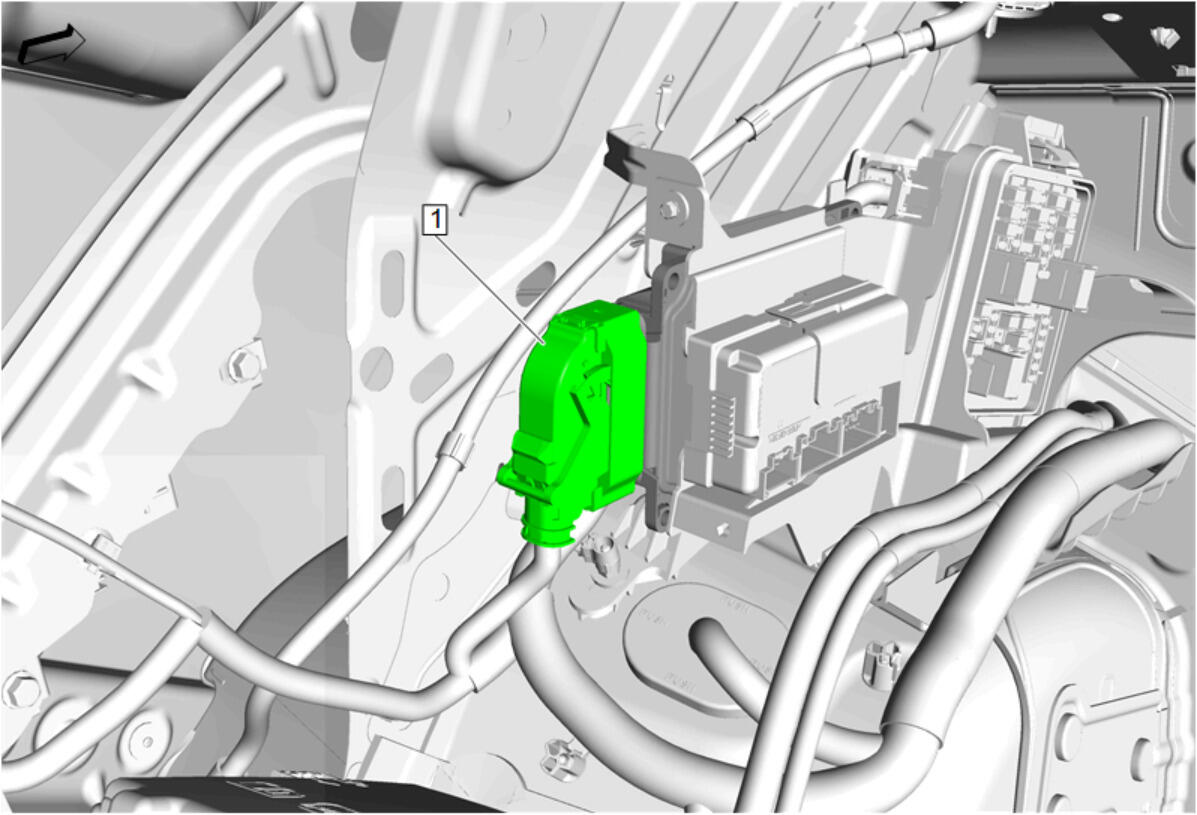

- Electrical Connector (1) @Electronic Suspension Control Module - Connect
- Rear Compartment Side Trim- Left Side - Install - Rear Compartment Side Trim Replacement - Left Side
- Perform the necessary programming and setup procedure:Control Module References
