Ignition Lock Key Transmitter Antenna Bracket Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Low Frequency Body Side Antenna Replacement It is only necessary to reposition the rocker panel molding enough to gain access to the ignition lock key transmitter antenna bracket. Rocker Panel Molding Replacement , or Rocker Panel Molding Replacement (Blackwing)

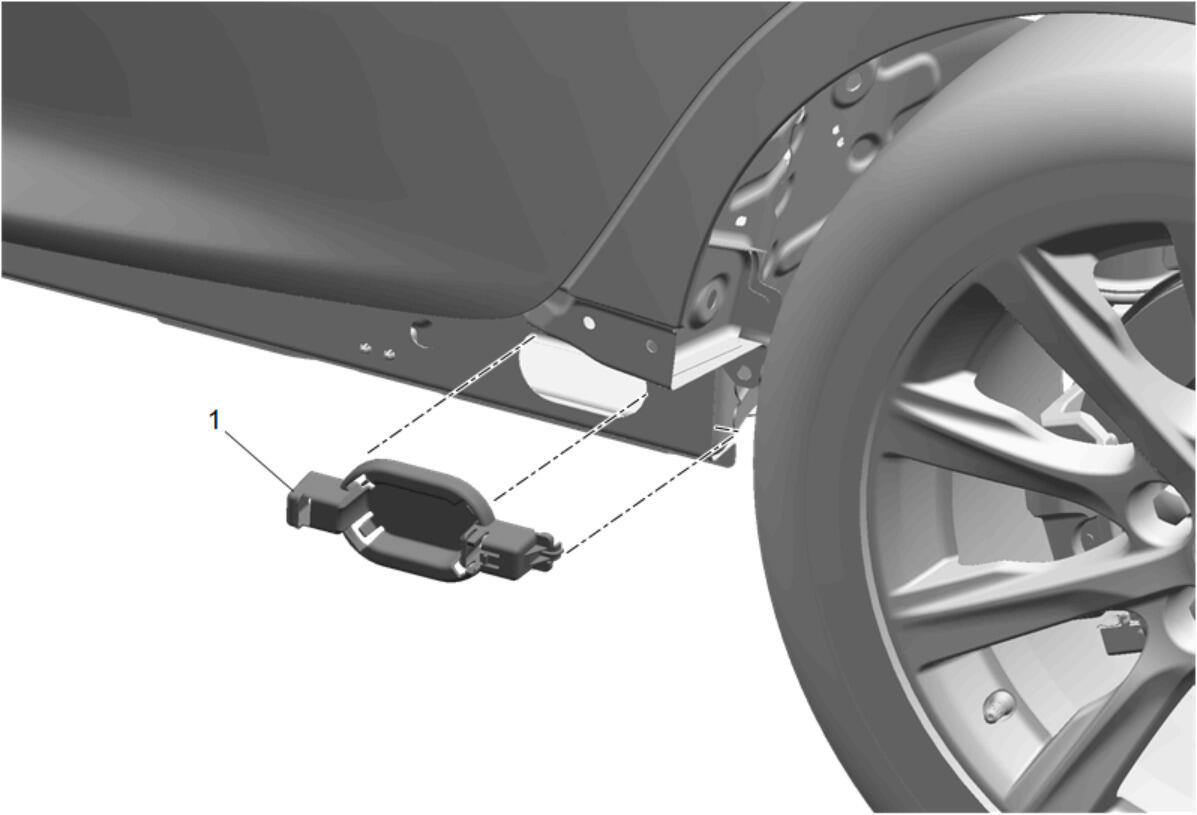

1	Ignition Lock Key Transmitter Antenna Bracket Procedure Release the retaining tab.

Callout

Component Name

Preliminary Procedures

Low Frequency Body Side Antenna Replacement
It is only necessary to reposition the rocker panel molding enough to gain access to the ignition lock key transmitter antenna bracket. Rocker Panel Molding Replacement , or Rocker Panel Molding Replacement (Blackwing)

Ignition Lock Key Transmitter Antenna Bracket
Procedure
Release the retaining tab.
