Low Frequency Body Side Antenna Replacement: Notes

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

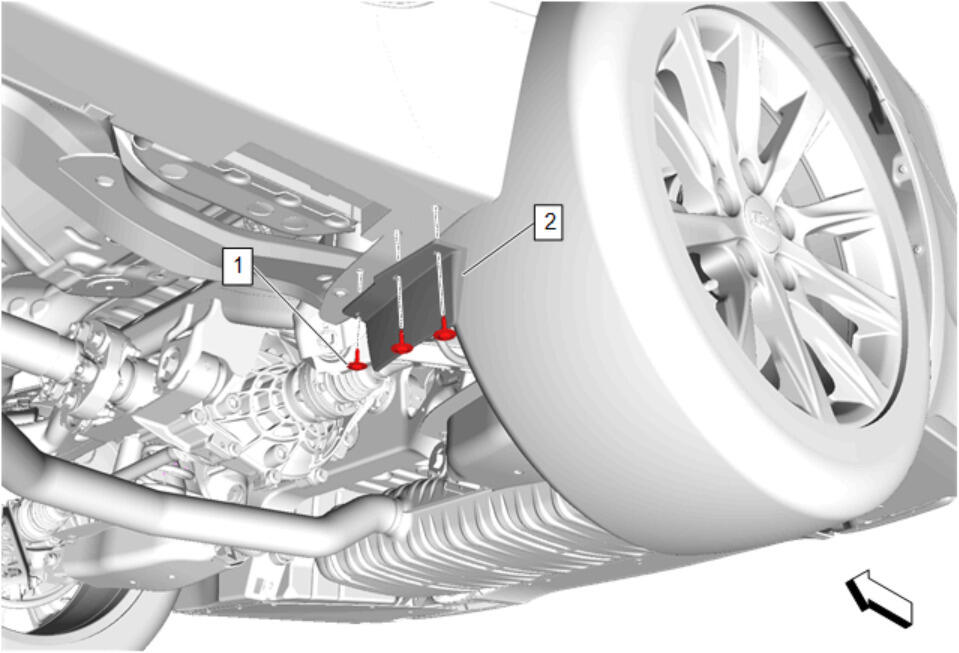

Rear Tire Front Air Deflector (2) - Remove - Rear Tire Front Air Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

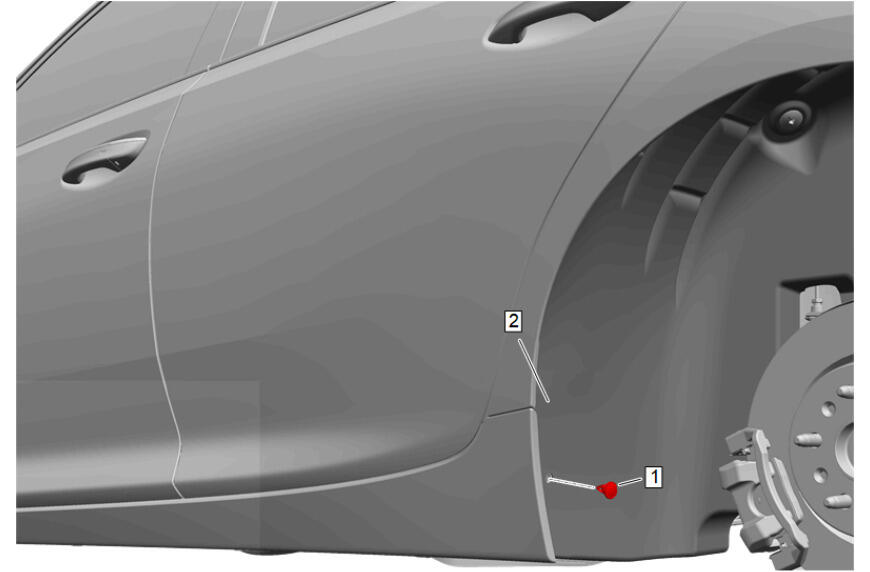

Rear Wheelhouse Liner Retainer (1) - Remove
Reposition rear wheelhouse liner (2) to gain access to the antenna.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Release the retaining tab.
Disconnect the electrical connector.

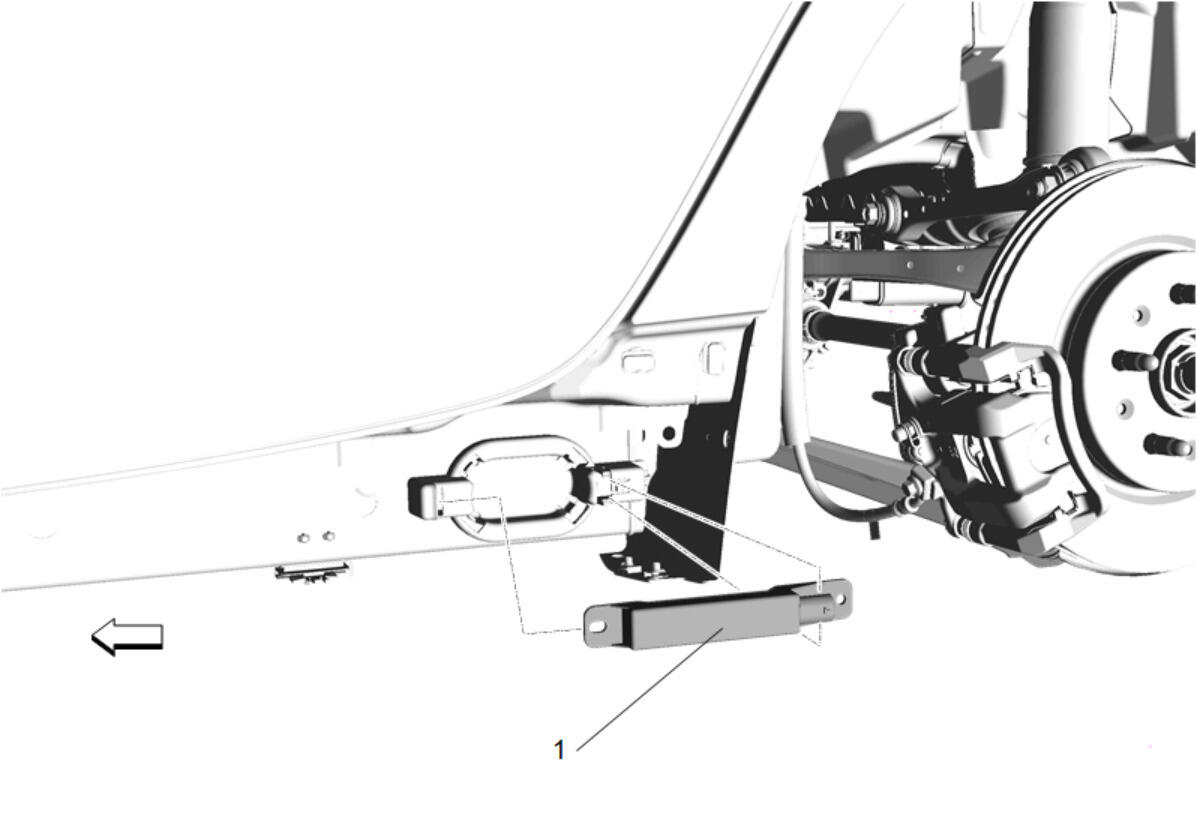

Low Frequency Body Side Antenna (1) - Remove
