Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

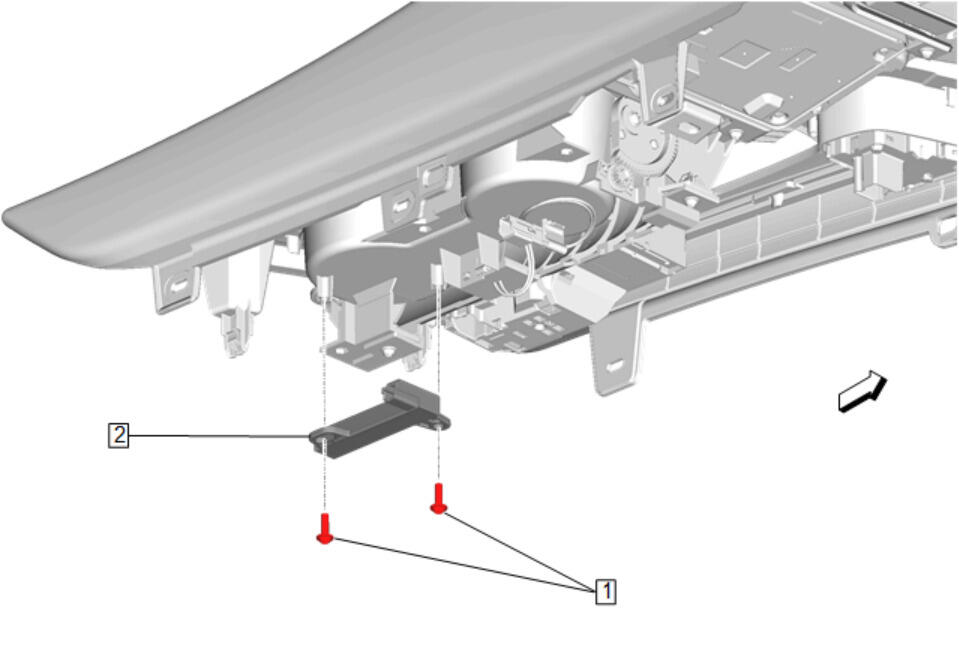

Low Frequency Instrument Panel Antenna (2) - Install

CAUTION:

Refer to Fastener Caution .

Low Frequency Instrument Panel Antenna Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (2) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
