Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Radio Speaker Amplifier - Remove - Radio Speaker Amplifier Replacement

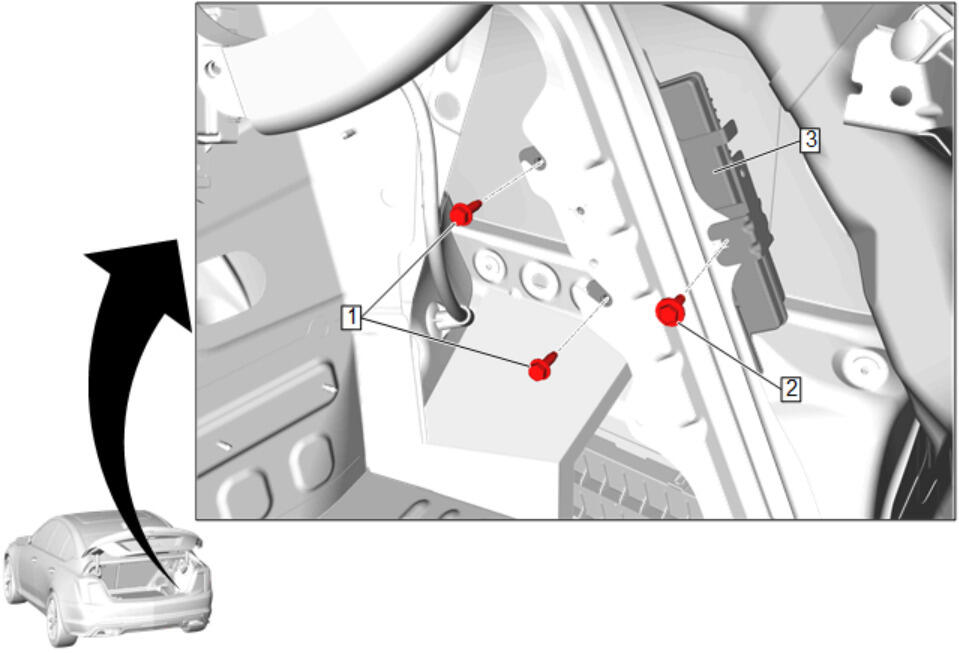

Video Processing Module Bracket Front Bolt (1) - Remove [2x]
- Video Processing Module Bracket Rear Bolt (2) - Remove

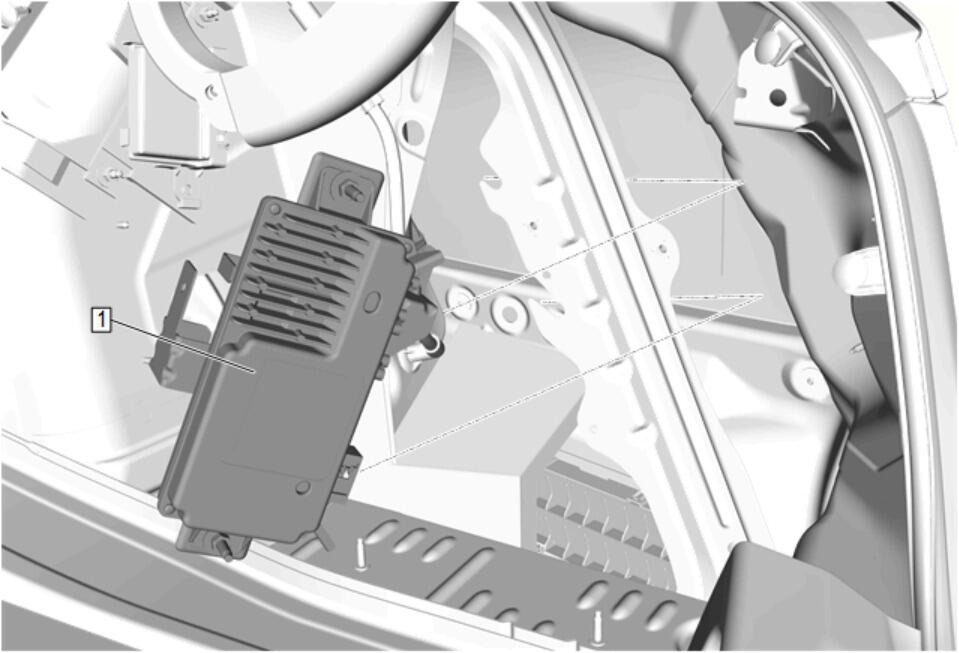

Remove the video processing module (1) with bracket.
- Disconnect the electrical connectors.

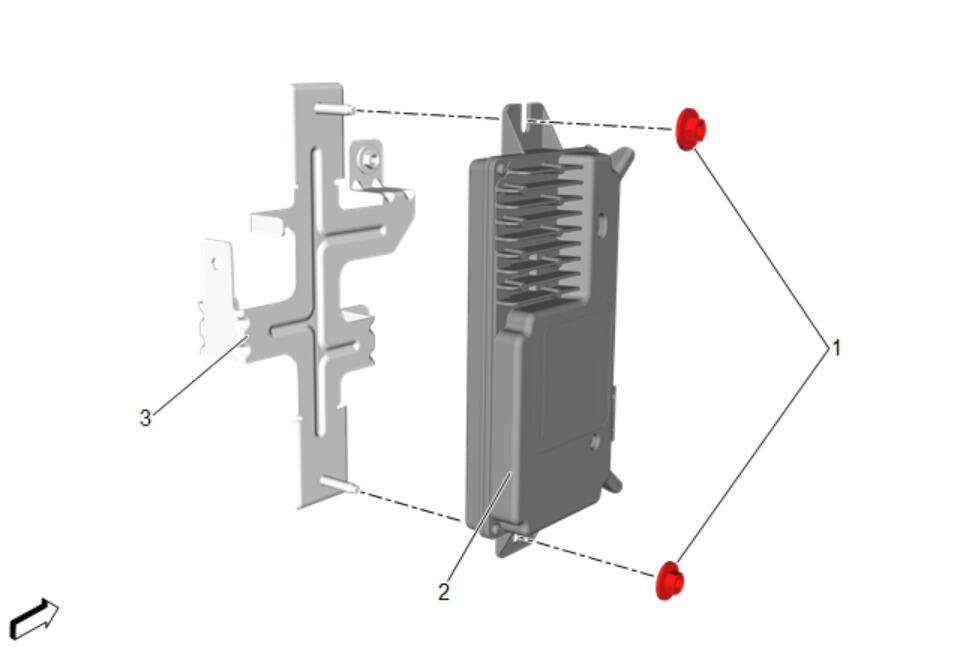

Video Processing Module Nut (1) - Remove [2x]
- Remove the video processing module (2) from the video processing module bracket (3).
- Transfer components as necessary.
