Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

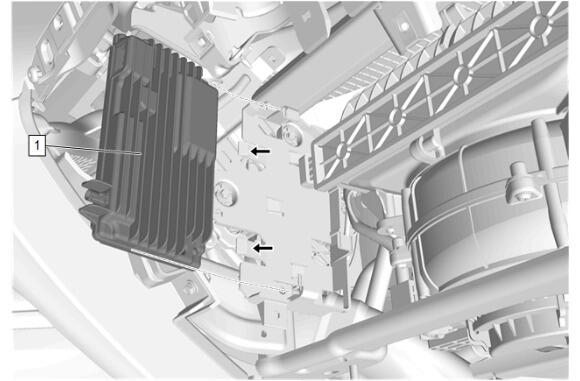

Driver Monitoring System Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connectors.

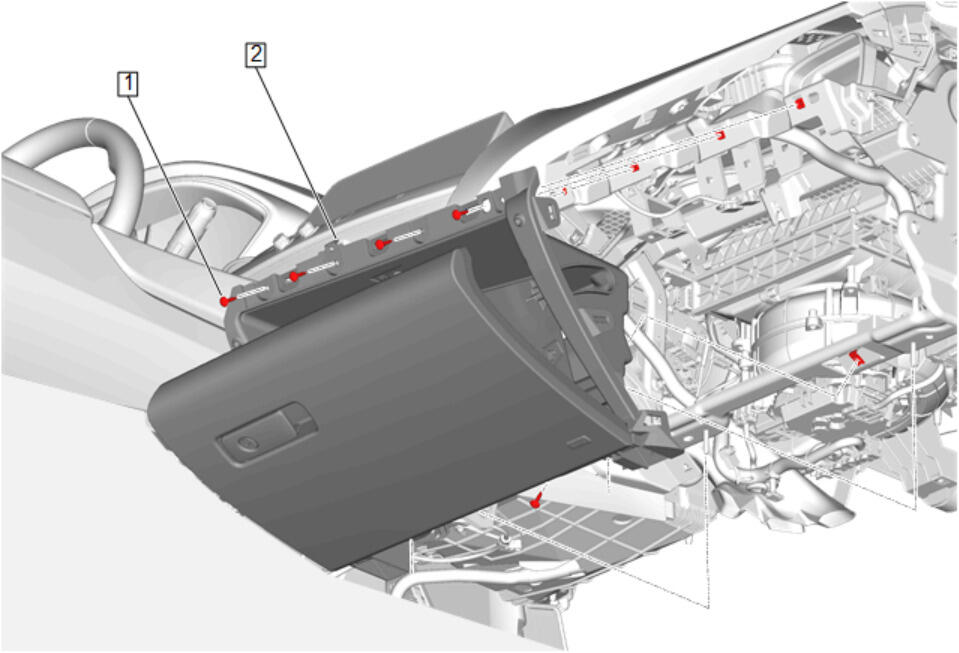

Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement
- Perform the necessary programming and setup procedure: Control Module References
