Tire Pressure Sensor Relearn

NOTE: If using the TPM tool to activate the sensors, any stray sensor signals will not affect the relearn procedure. In the event a particular sensor's information is displayed on the special tool upon activation but the horn does not chirp, it may be necessary to rotate the wheel valve stem to a different position due to the sensor signal is being blocked by another component

NOTE: If using the Pressure Increase/Decrease sensor activation method, ensure that no other learn procedure is being performed simultaneously or that tire pressures are not being adjusted on another TPM equipped vehicle within close proximity. Stray signals from other TPM equipped vehicles just driving by can be inadvertently learned. If any random horn chirps are heard from the vehicle while performing the learn procedure, most likely a stray sensor has been learned and the procedure will need to be cancelled and repeated. Under these circumstances, performing the TPM Relearn Procedure away from other vehicles would be highly recommended. In the event a particular sensor activation does not cause the horn to chirp, it may be necessary to rotate the wheel valve stem to a different position due to the sensor signal is being blocked by another component.

NOTE: The Relearn mode will cancel if the ignition is cycled to OFF or if more than 2 minutes has elapsed for any sensor that has not been learned. If the relearn mode is cancelled before the first sensor is learned, the original sensor IDs will be maintained. If the relearn mode is canceled after the first sensor is learned, the following will occur:

All stored sensor IDs will be invalidated in the BCM memory.
If equipped, the DIC will display dashes instead of tire pressures.
DTC C0775 will be set.

Turn ignition switch to ACC position.

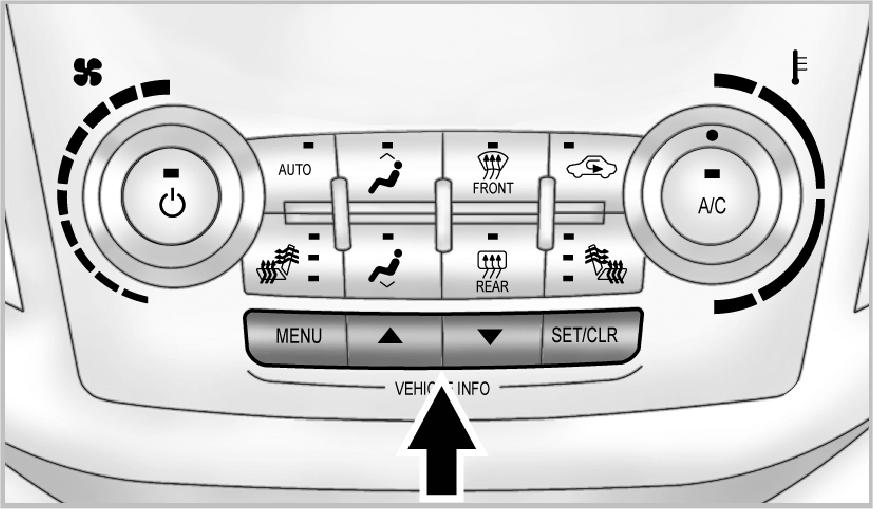

Activate the Relearn mode using a OEM scan tool or driver information center controls (see Figure). A double horn chirp sounds indicating the Relearn mode has been enabled and the left front turn signal will also be illuminated.
Starting with the left front tire, activate the tire pressure sensor using one of the following methods:
- Increase/decrease the tire pressure for 8-10 seconds then wait for a horn chirp. The horn chirp may occur before or up to 30 seconds after the 8-10 second pressure increase/decrease time period has been reached. Once the horn chirp has sounded, the sensor information is learned and the turn signal in the next location to be learned will illuminate.
- Hold the antenna of the TPM Special Tool (EL-46079 or EL-50448) aimed upward against the tire sidewall close to the wheel rim at the valve stem location. Press and release the activate button. Ensure that the transmit indicator on the special tool indicates that the sensor activation signal is being transmitted. Wait for a horn chirp. If the horn does not chirp, repeat the sensor activation sequence with the tool. Once the horn chirp has sounded, the sensor information is learned and the turn signal in the next location to be learned will illuminate.
After horn chirp has sounded and the right front turn signal is illuminated, repeat procedure for the next 3 sensors in the following order: Right Front, Right Rear, Left Rear.
After left rear sensor has been learned, a double horn chirp will sound, indicating all 4 sensor IDs have been learned. Turn ignition switch to OFF position. Adjust all tire pressures to specification.
