Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Battery Tray (2) - Install
Windshield Washer Solvent Container Bolt (1) - Install - Windshield Washer Solvent Container Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

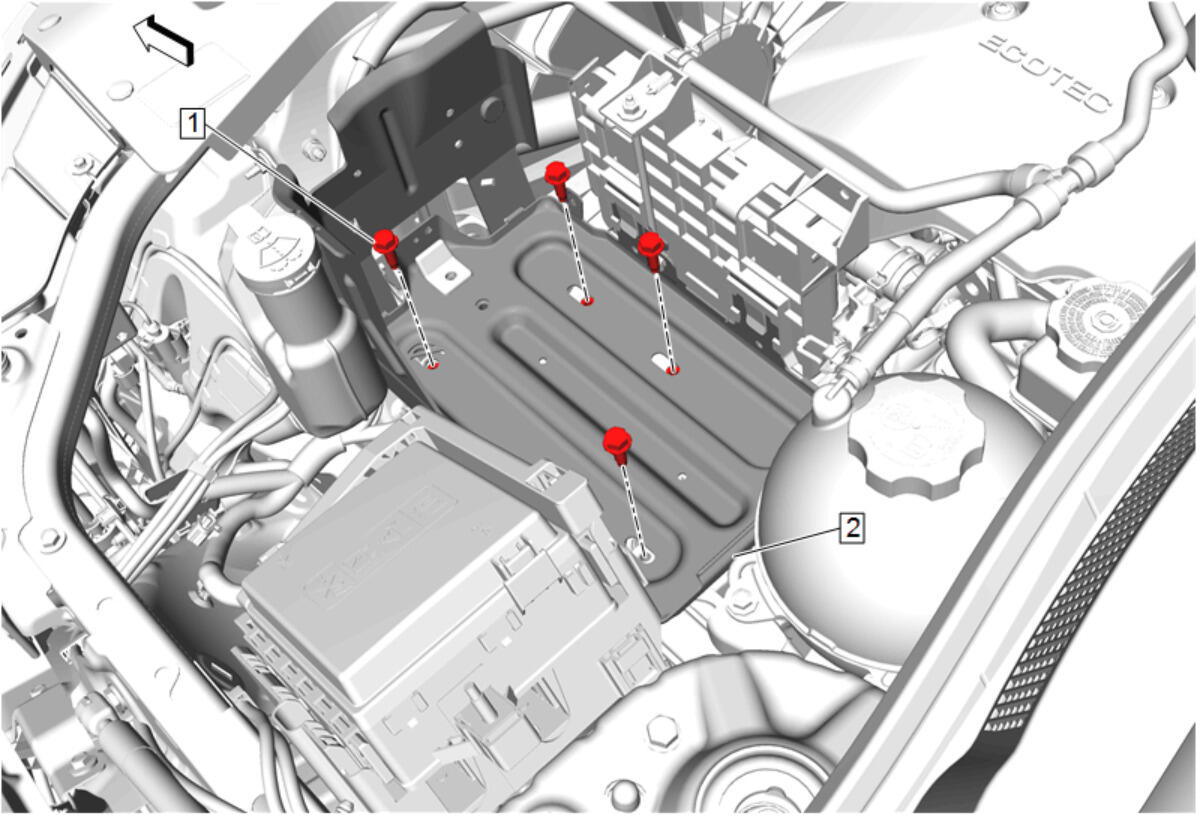

Battery Tray Guide Bolt (1) @Battery Tray (2) - Install and tighten [4x] 22 N.m (16 lb ft)
Connect any harness retainers to the battery tray.
Courtesy of GENERAL MOTORS COMPANY

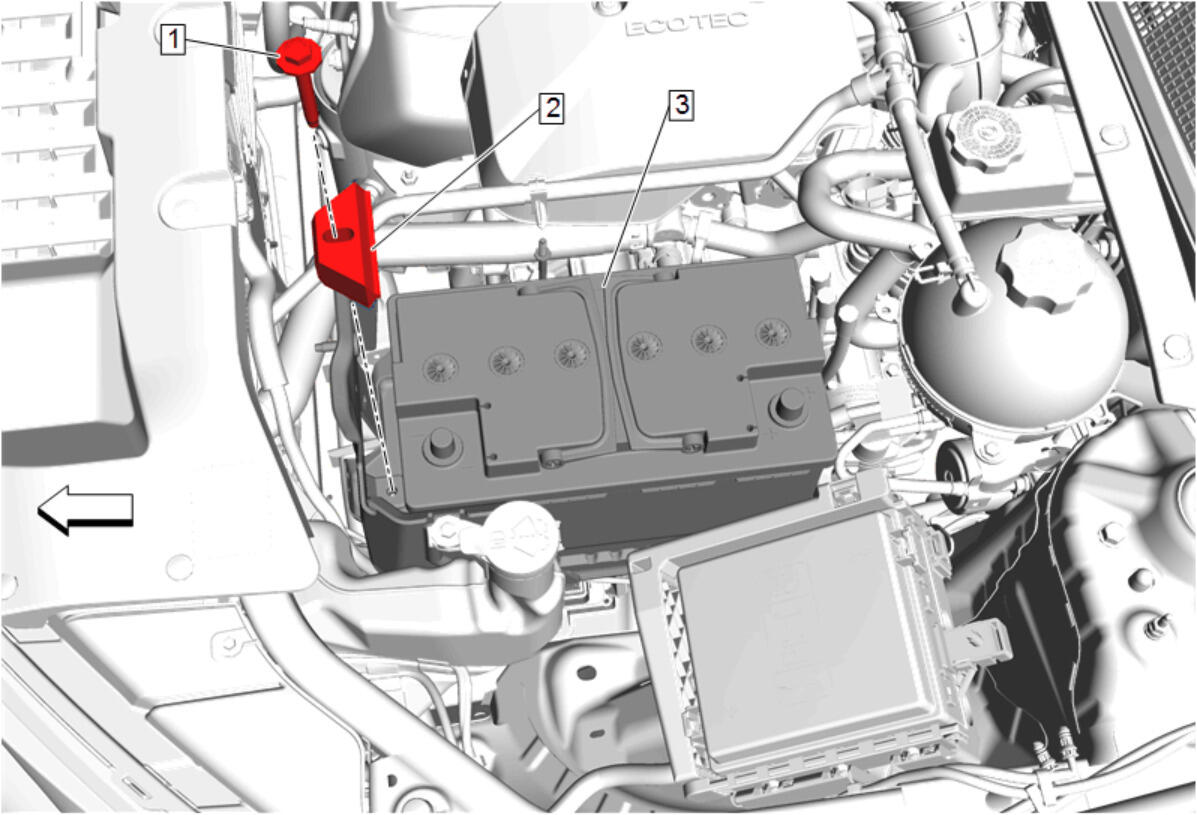

Battery (3) - Install - Battery Replacement
