Installation Procedure

CAUTION:

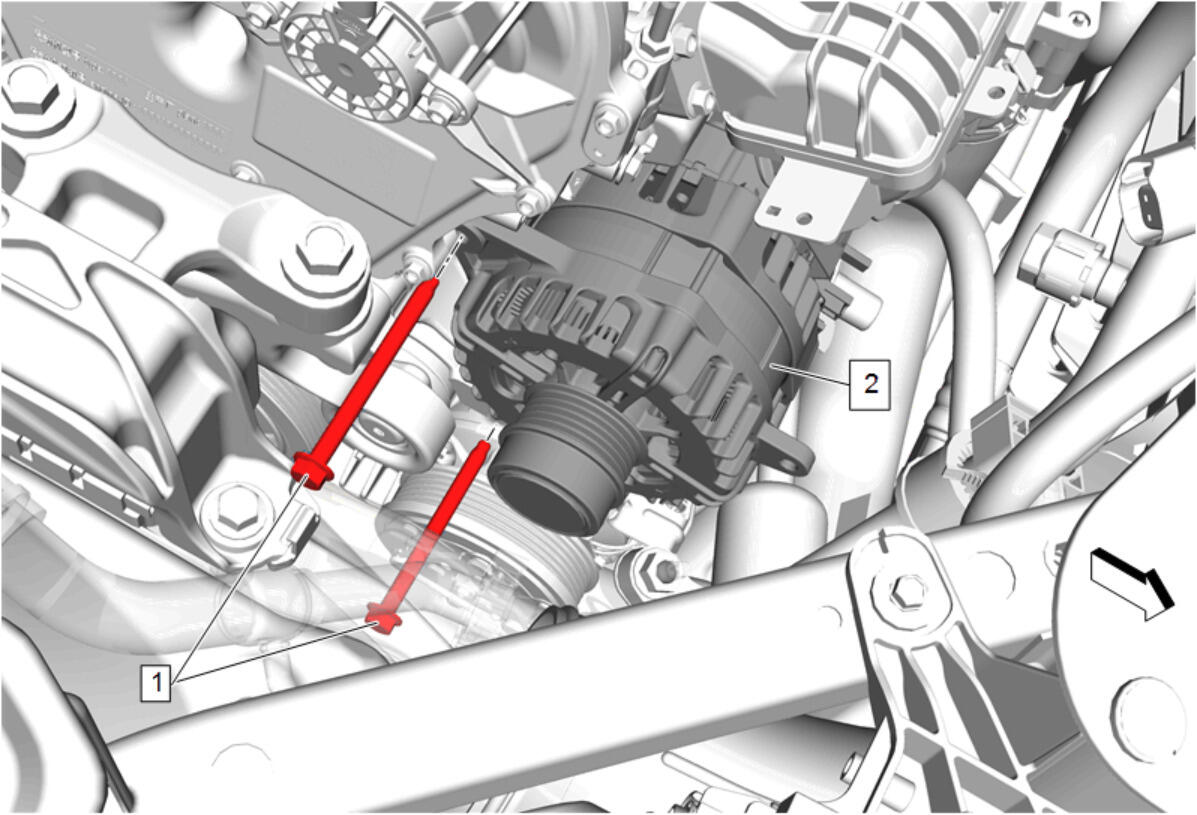

Generator Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

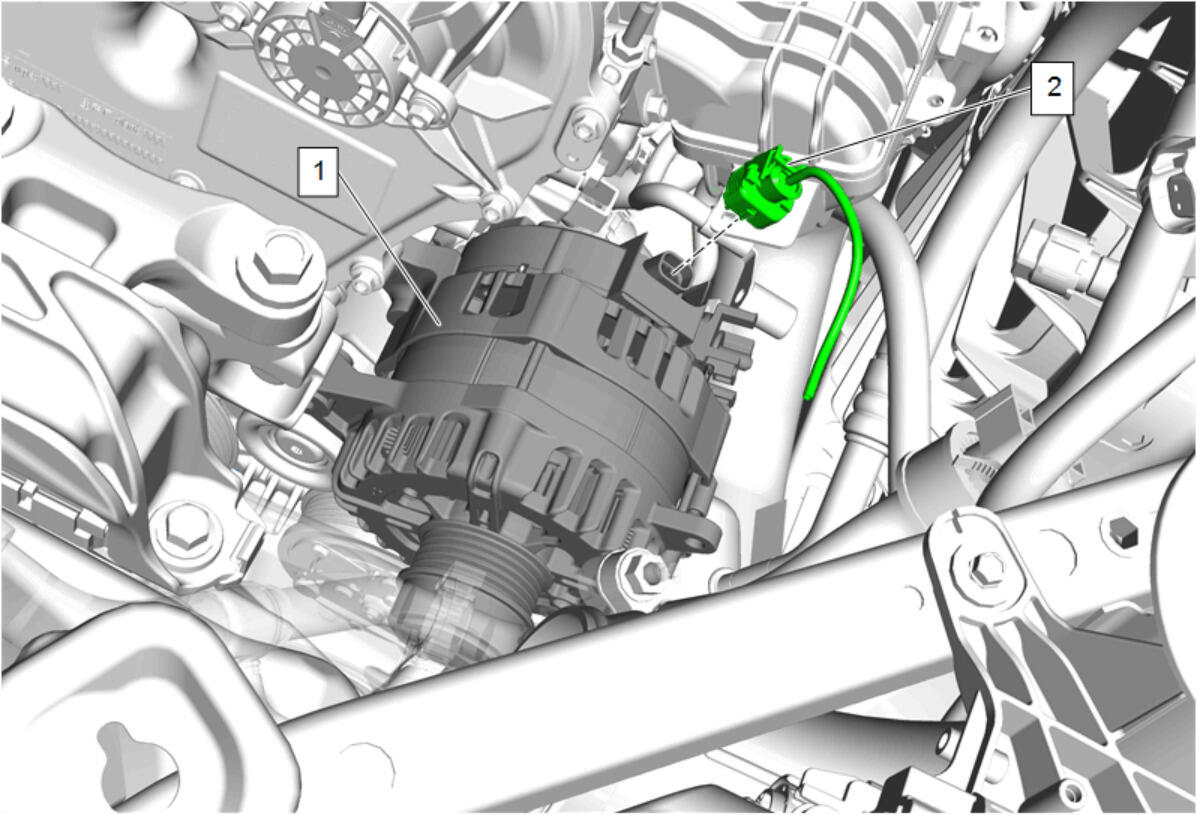

Electrical Connector (2) - Connect
Courtesy of GENERAL MOTORS COMPANY

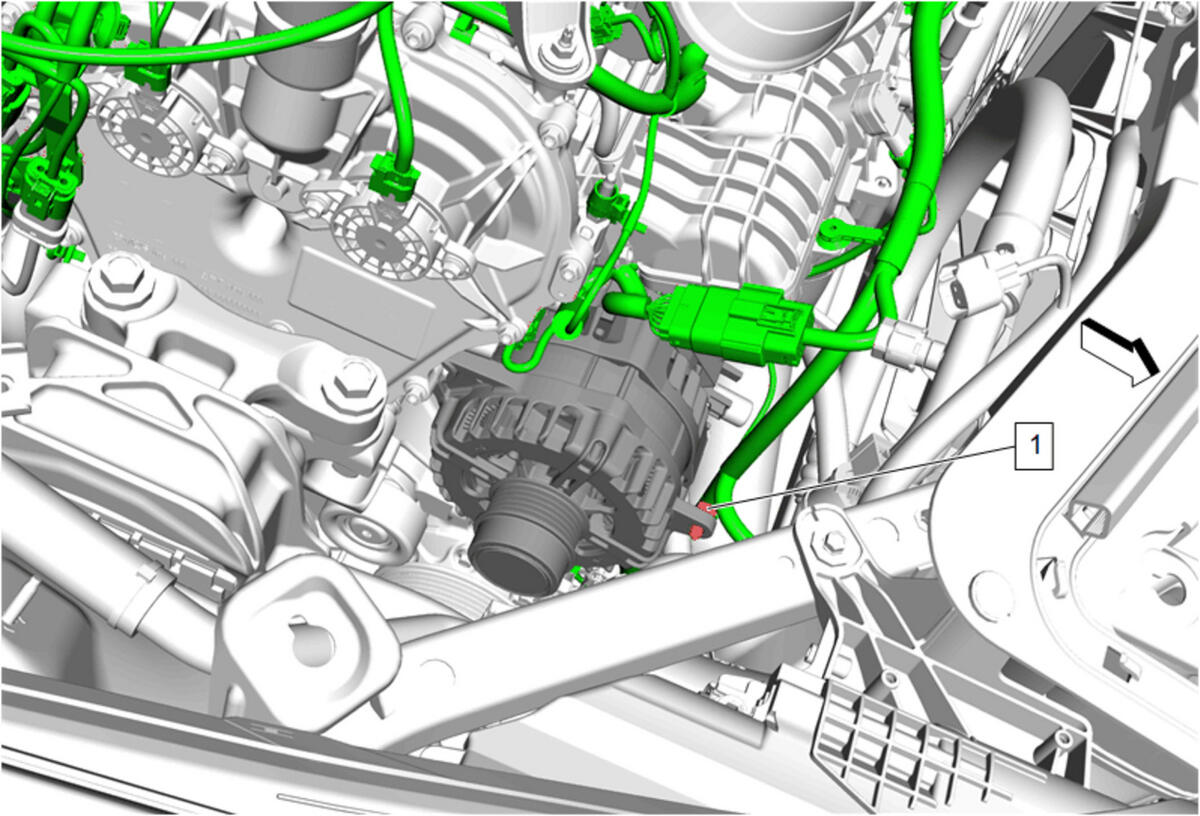

Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

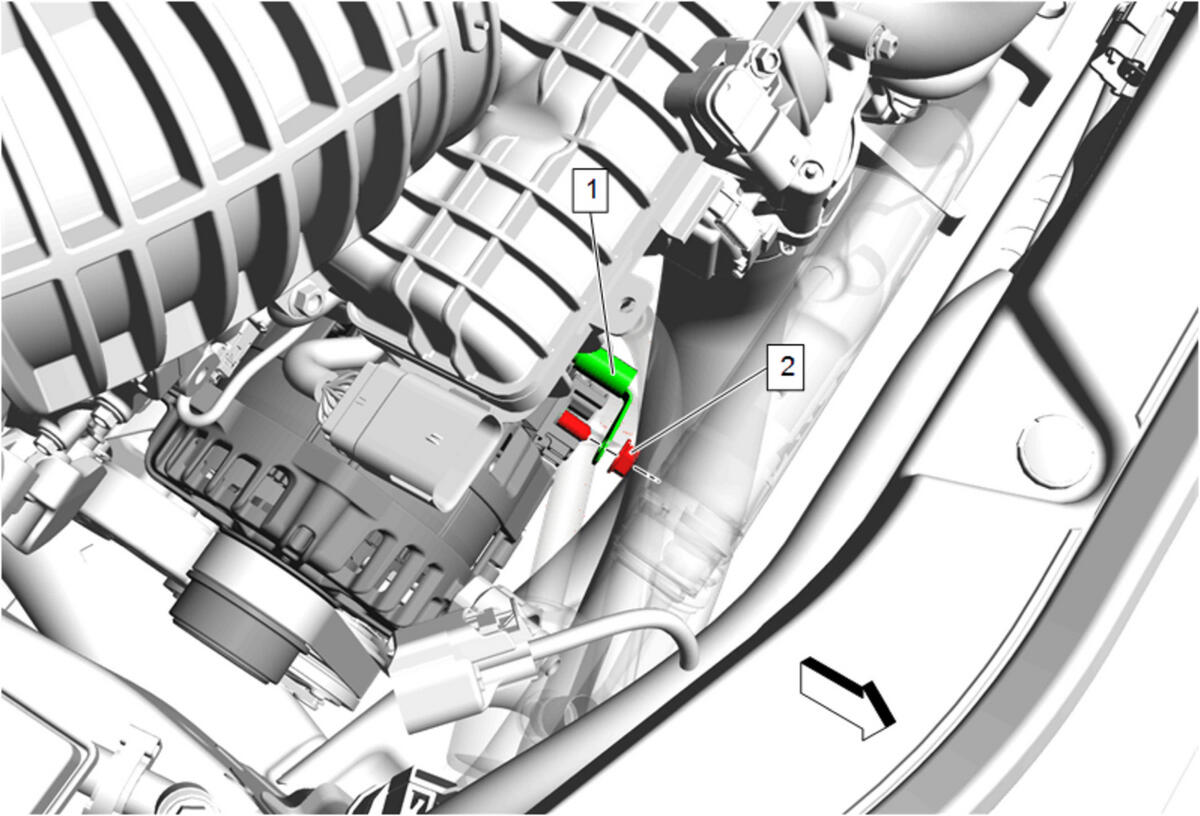

Battery Positive Cable (1) - Install
Battery Positive Cable Nut (2) @Generator - Install and tighten 15 N.m (11 lb ft)
Drive Belt Tensioner - Install - Drive Belt Tensioner Replacement
Accessory Drive Primary Belt - Install - Accessory Drive Primary Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

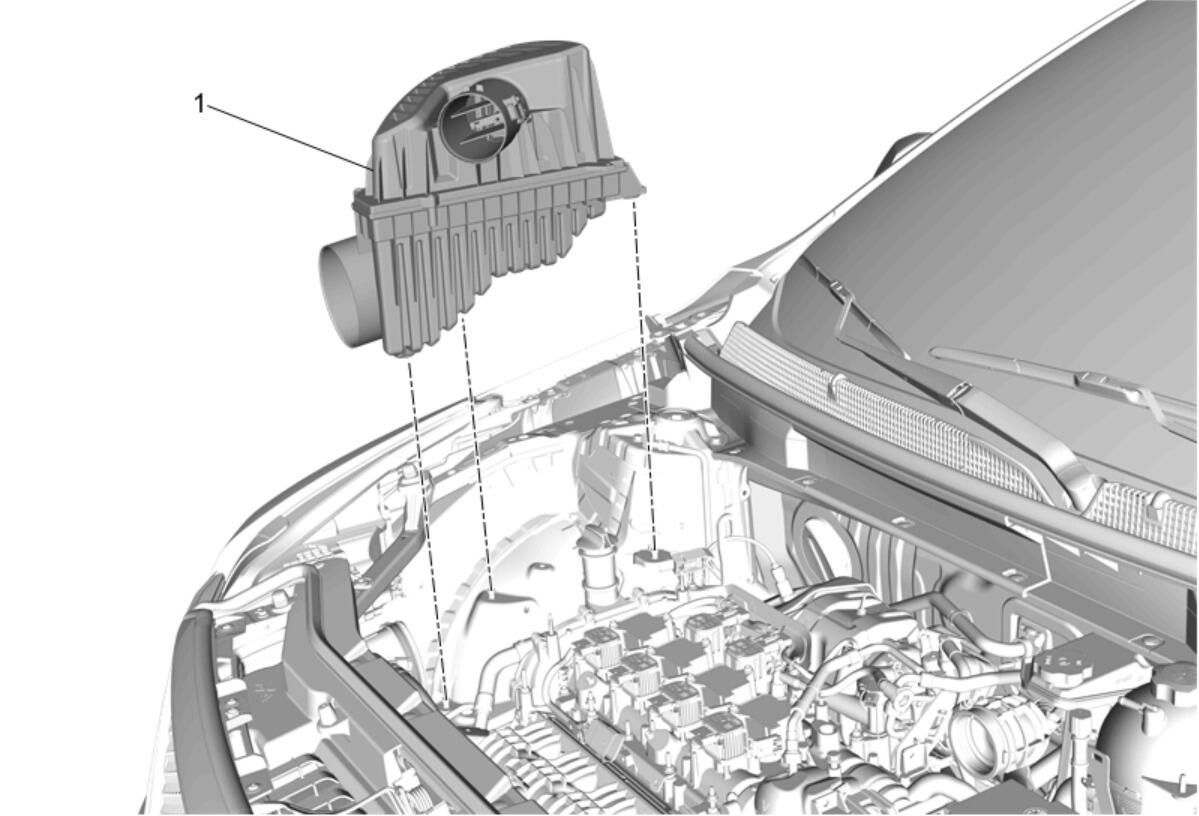

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
