Installation Procedure

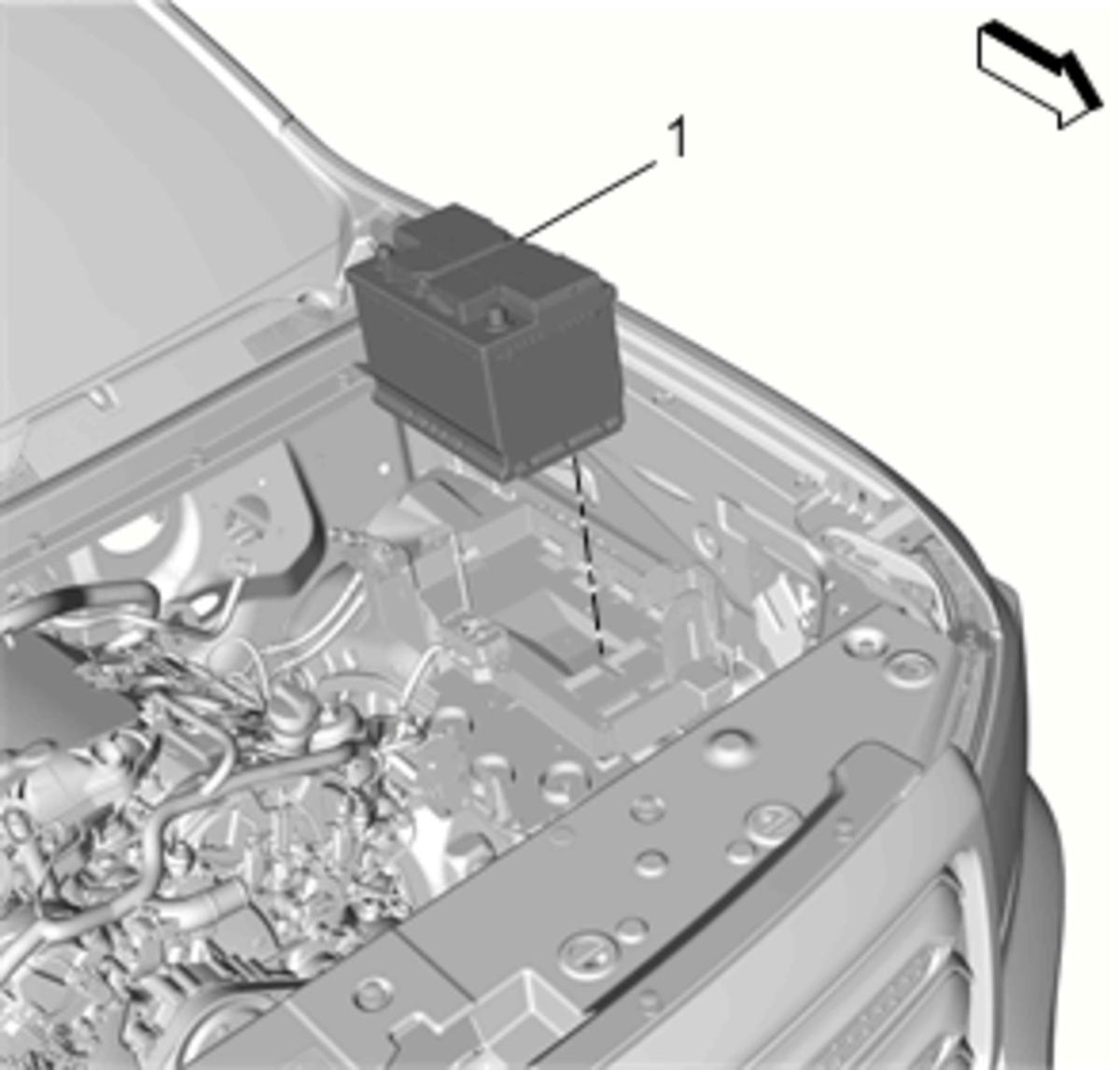

Install the battery. (1)

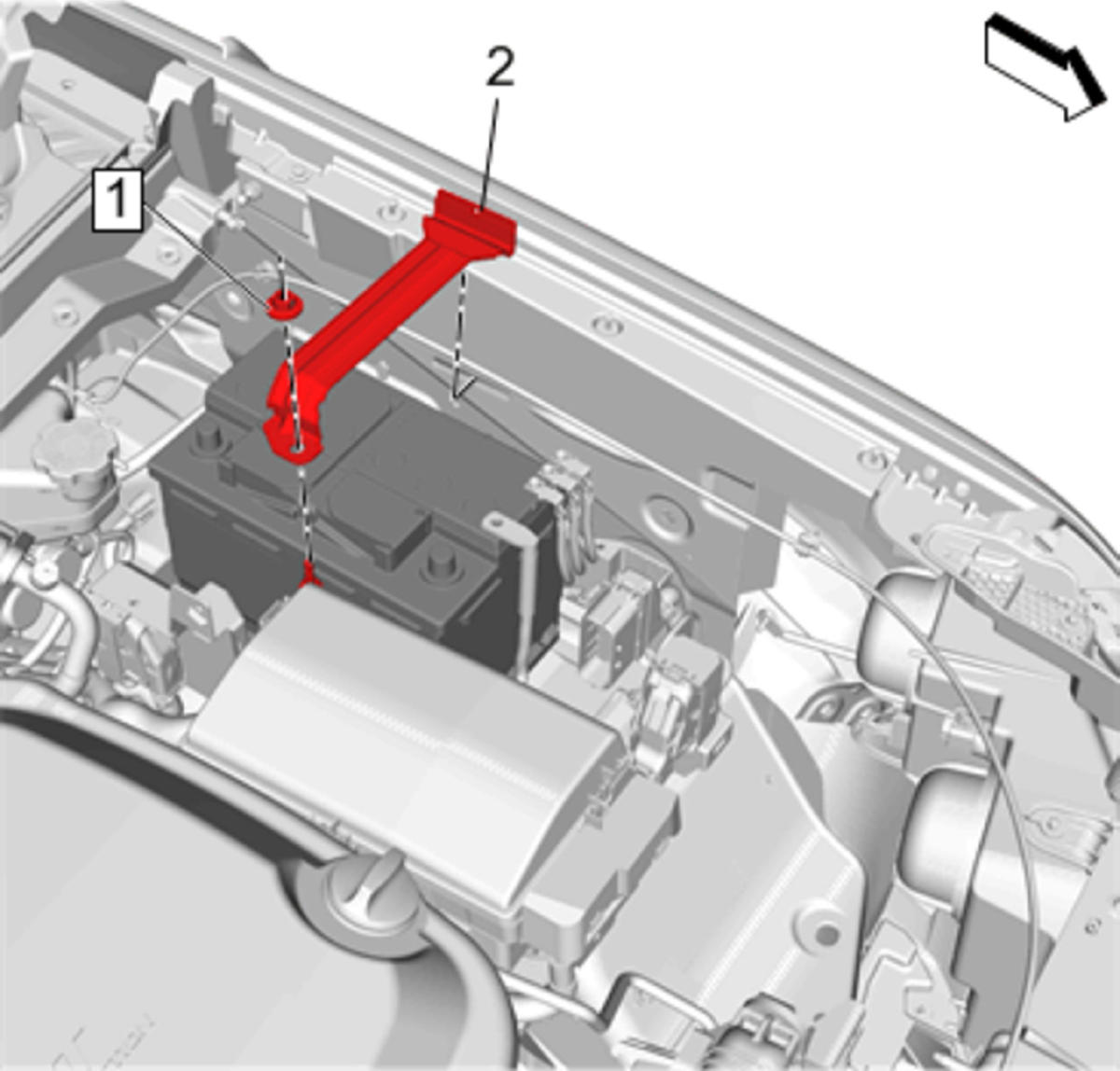

Battery Hold Down Retainer (2) - Install
- Battery Hold Down Retainer Rod (1) - Install and tighten 22 N.m (16 lb ft)

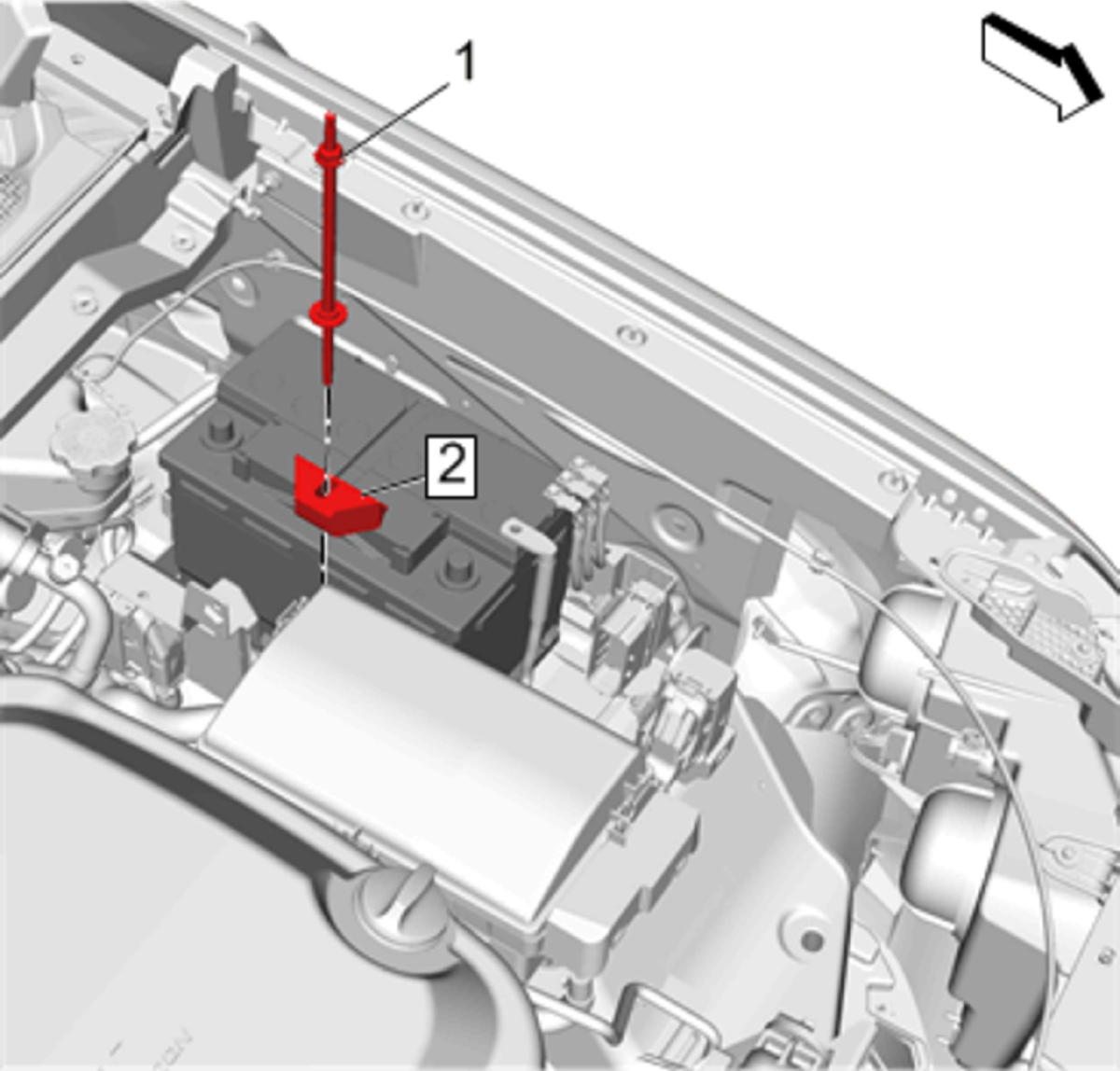

Battery Hold Down Retainer (2) - Install
- Battery Hold Down Retainer Nut (1) - Install and tighten 22 N.m (16 lb ft)

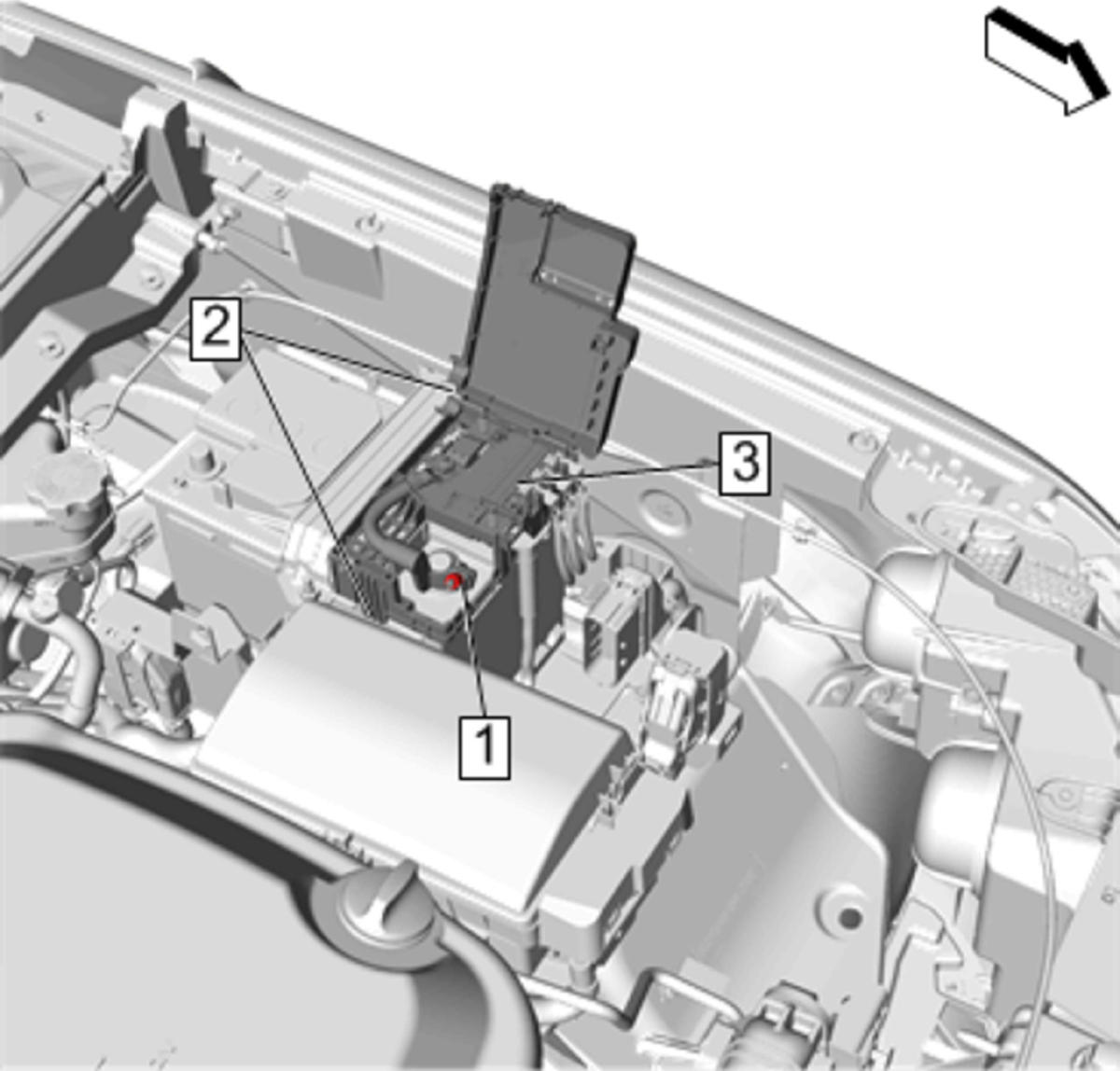

Front Compartment Fuse Block (3) - Install
- Engage the retaining tabs. (2)
- Battery Positive Post Clamp Nut (1) - Install and tighten 4.5 N.m (40 lb in)

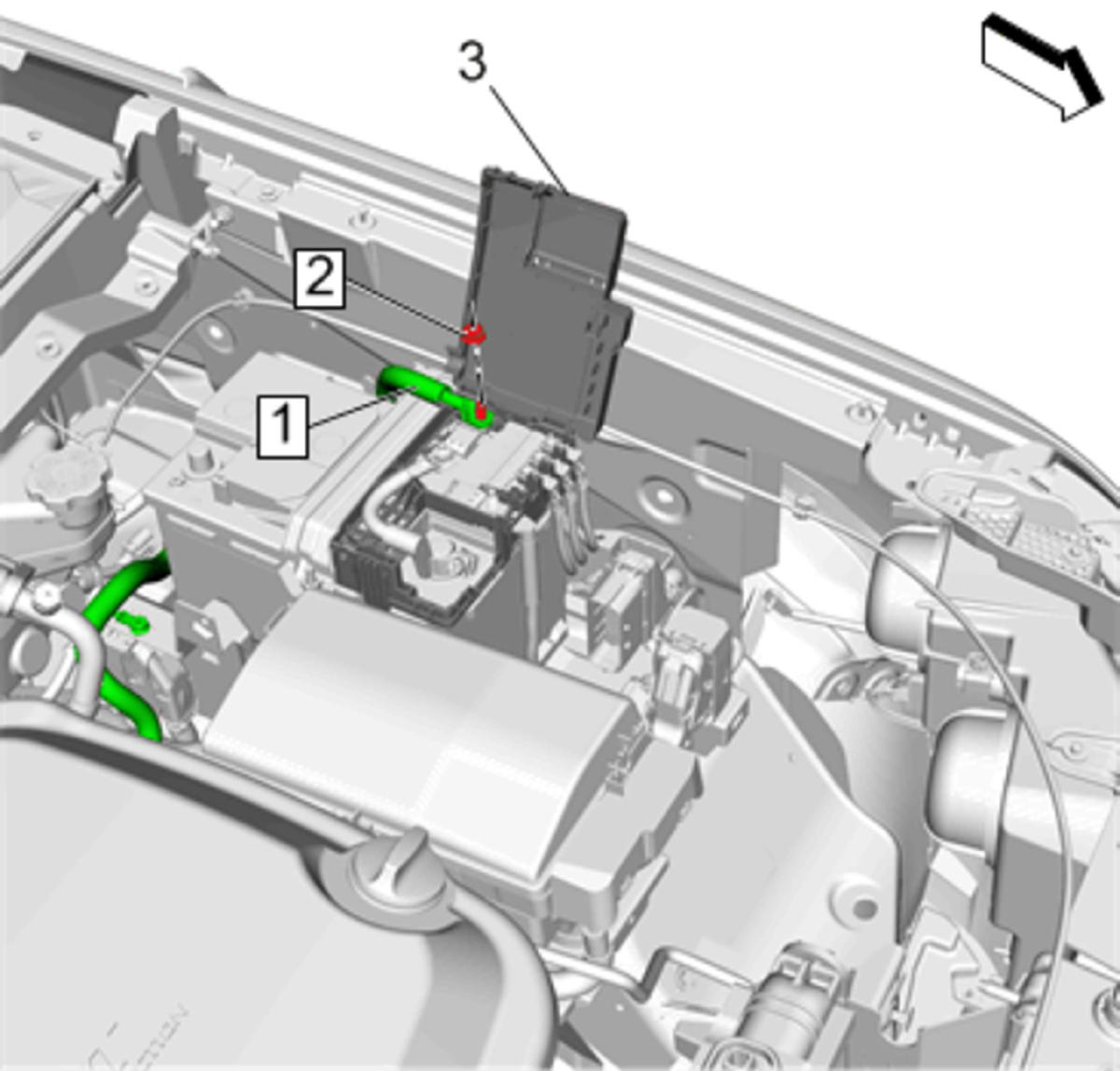

Battery Positive Cable (1) - Install
- Front Compartment Fuse Block Cable Nut (2) - Install and tighten 15 N.m (11 lb ft)
- Close the battery fuse block cover. (3)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
CAUTION:
Refer to Fastener Caution .
