Installation Procedure
Route the connector through the accessory power receptacle retainer. Align the retainer to the slot in the opening.
- Install the retainer by pressing into place until fully seated.

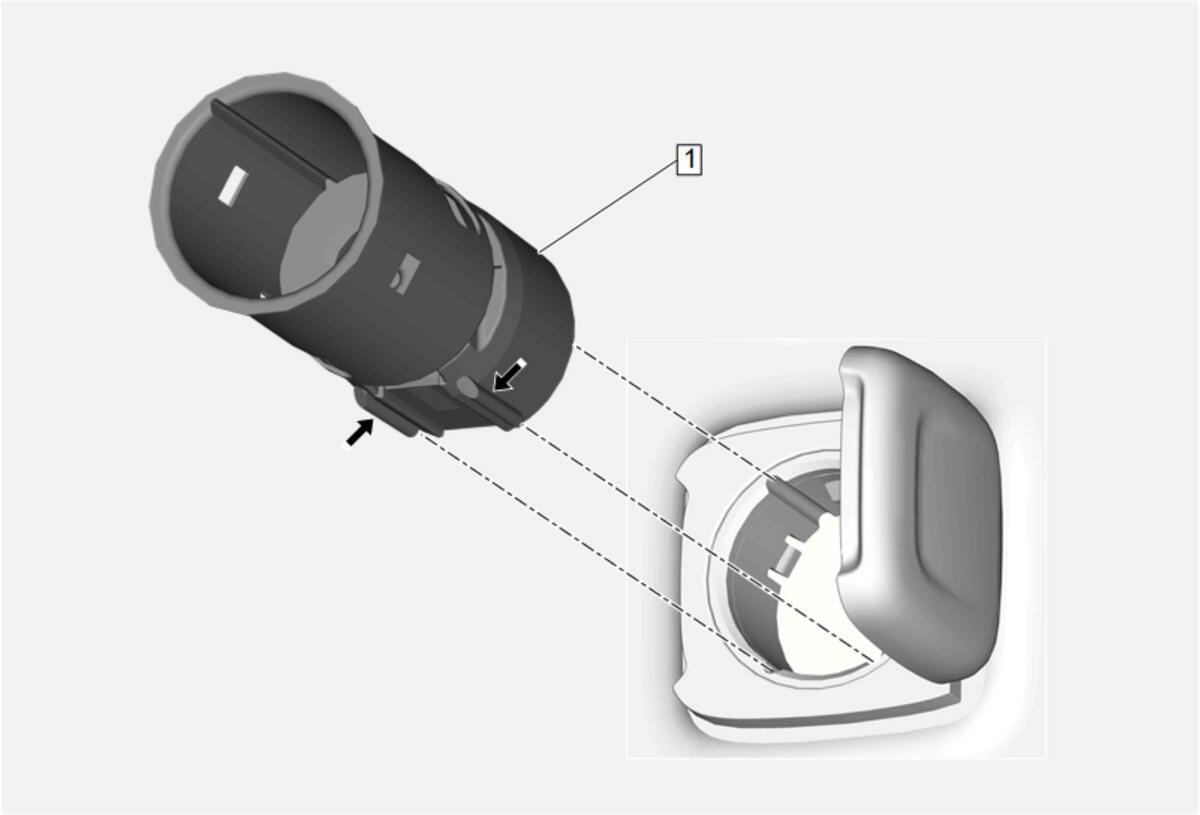

- Connect the electrical connector to the accessory power receptacle (1).
- Align the tabs on the receptacle (1)to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
- Install the auxiliary power outlet fuse.
