Front View Driver Information Camera Replacement

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

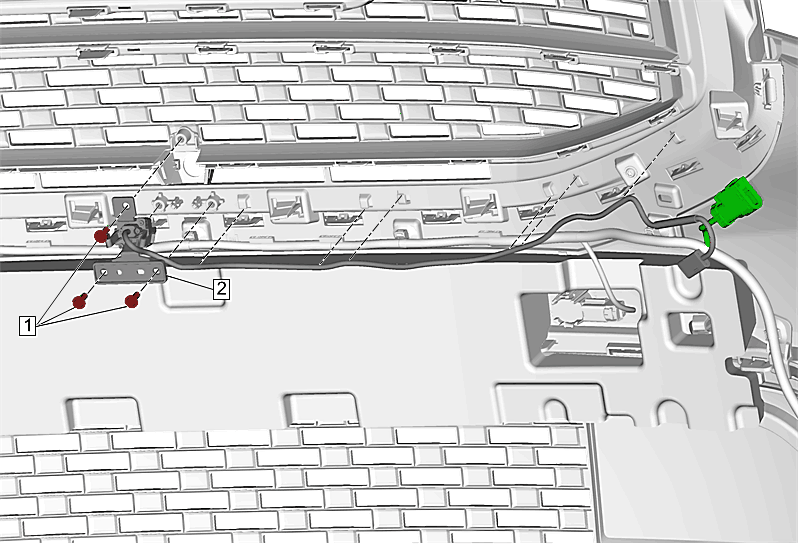

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front View Camera Bracket Bolt [3x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. Video Processing Control Module Calibration (with UVH) Video Processing Control Module Calibration (with UV2)

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement

Front View Camera Bracket Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5N.m (22 lb in)

Front View Driver Information Camera

Procedure

Disconnect the electrical connector.
Video Processing Control Module Calibration (with UVH) Video Processing Control Module Calibration (with UV2)
