Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

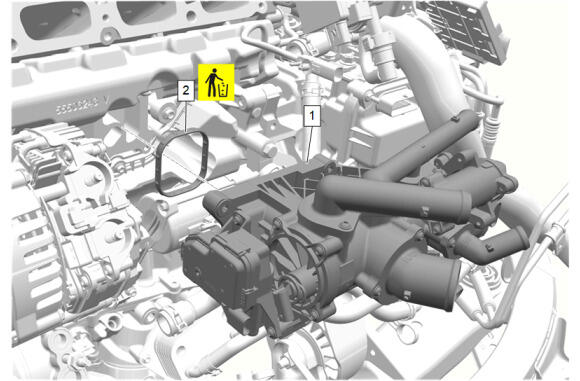

Water Outlet Seal (2) - Install NEW
Engine Coolant Flow Control Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

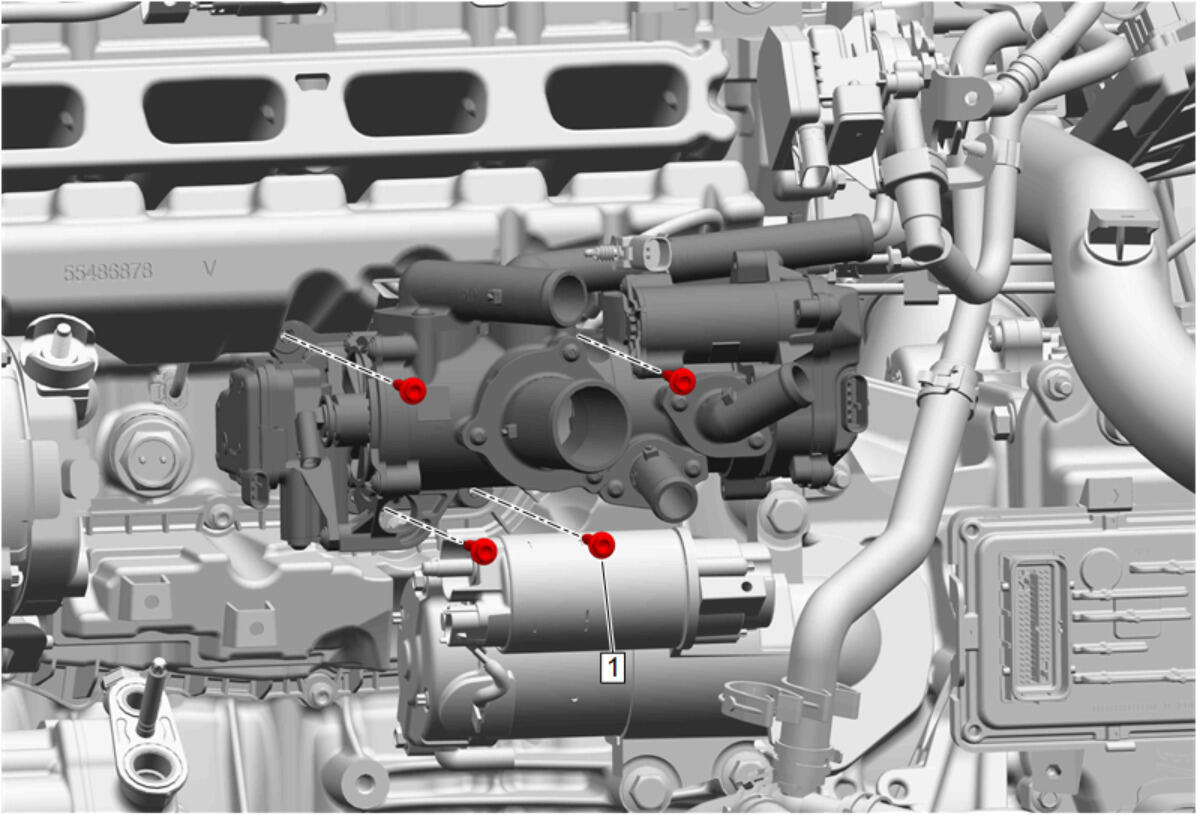

Engine Coolant Flow Control Valve Bolt (1) - Install [4x] - Engine Coolant Flow Control Valve Installation
Courtesy of GENERAL MOTORS COMPANY

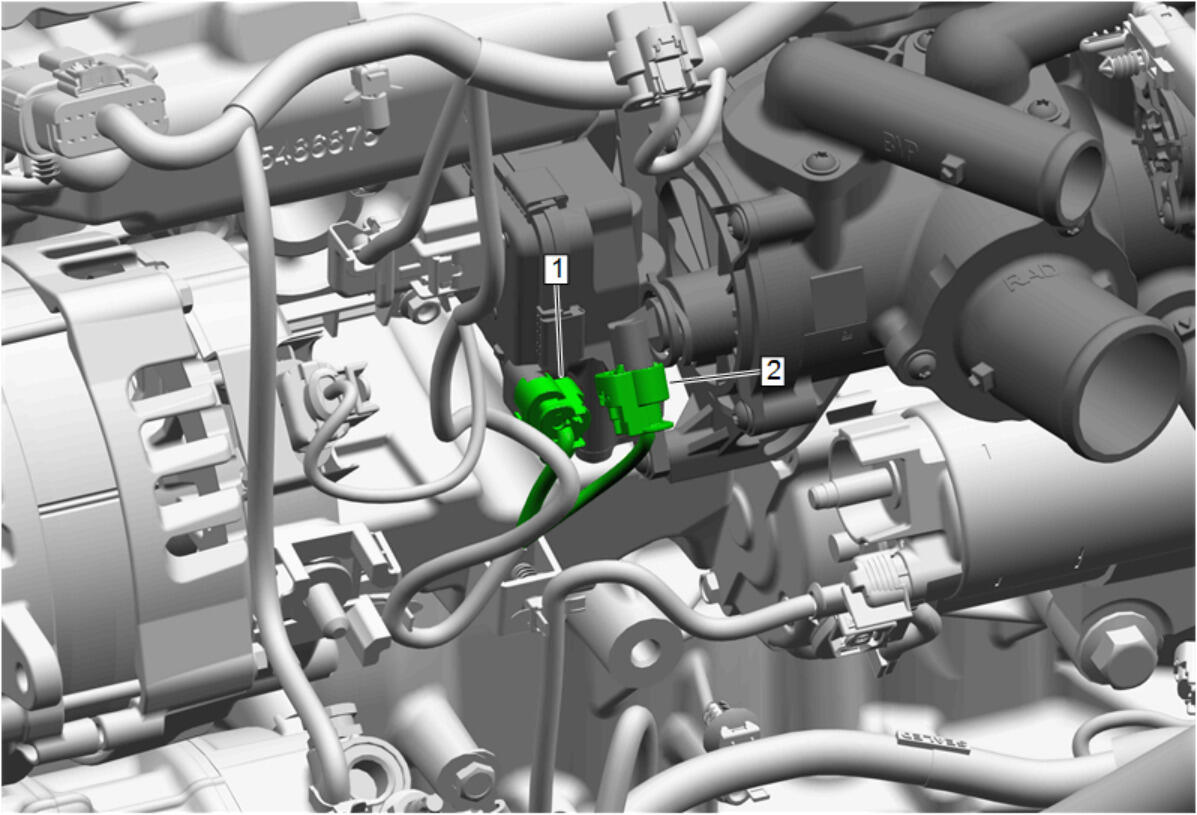

Electrical Connector (2) @Engine Coolant Temperature Sensor - Connect

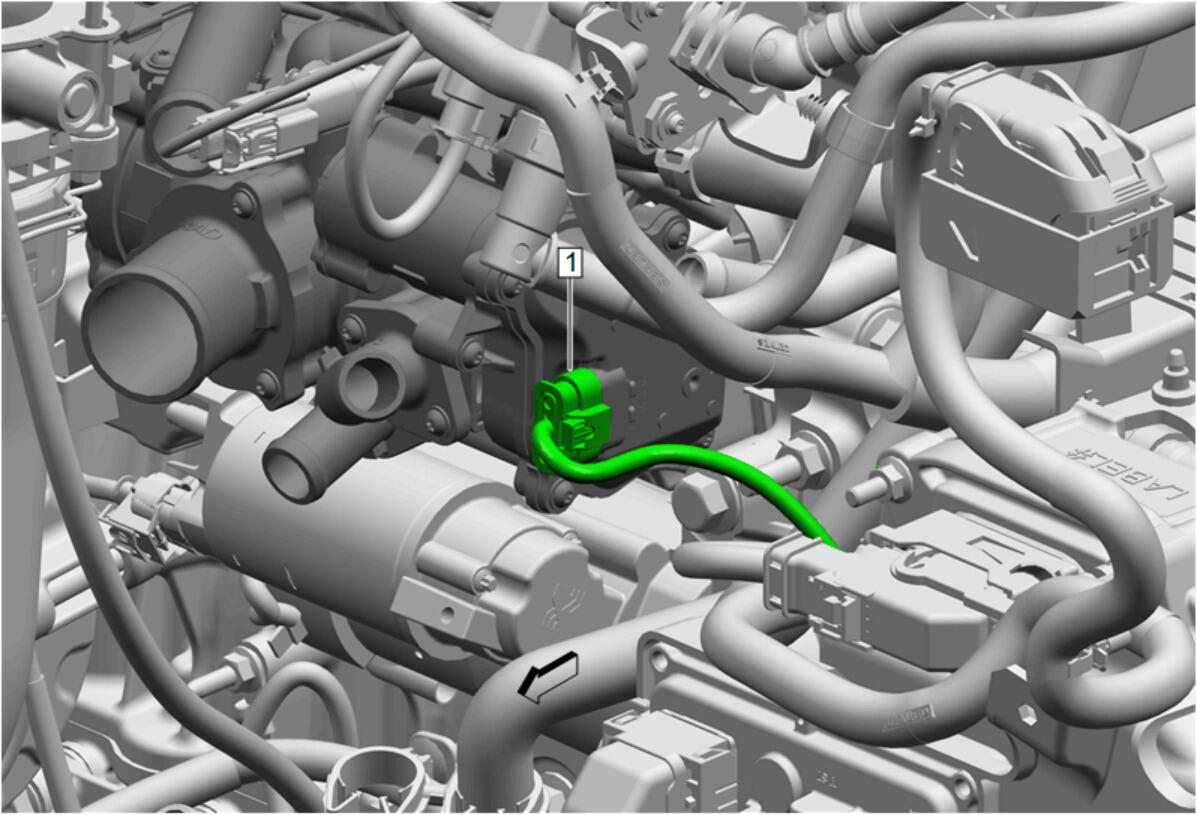

Electrical Connector (1) @Engine Coolant Flow Control Valve - Connect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @Engine Coolant Flow Control Valve - Connect
Courtesy of GENERAL MOTORS COMPANY

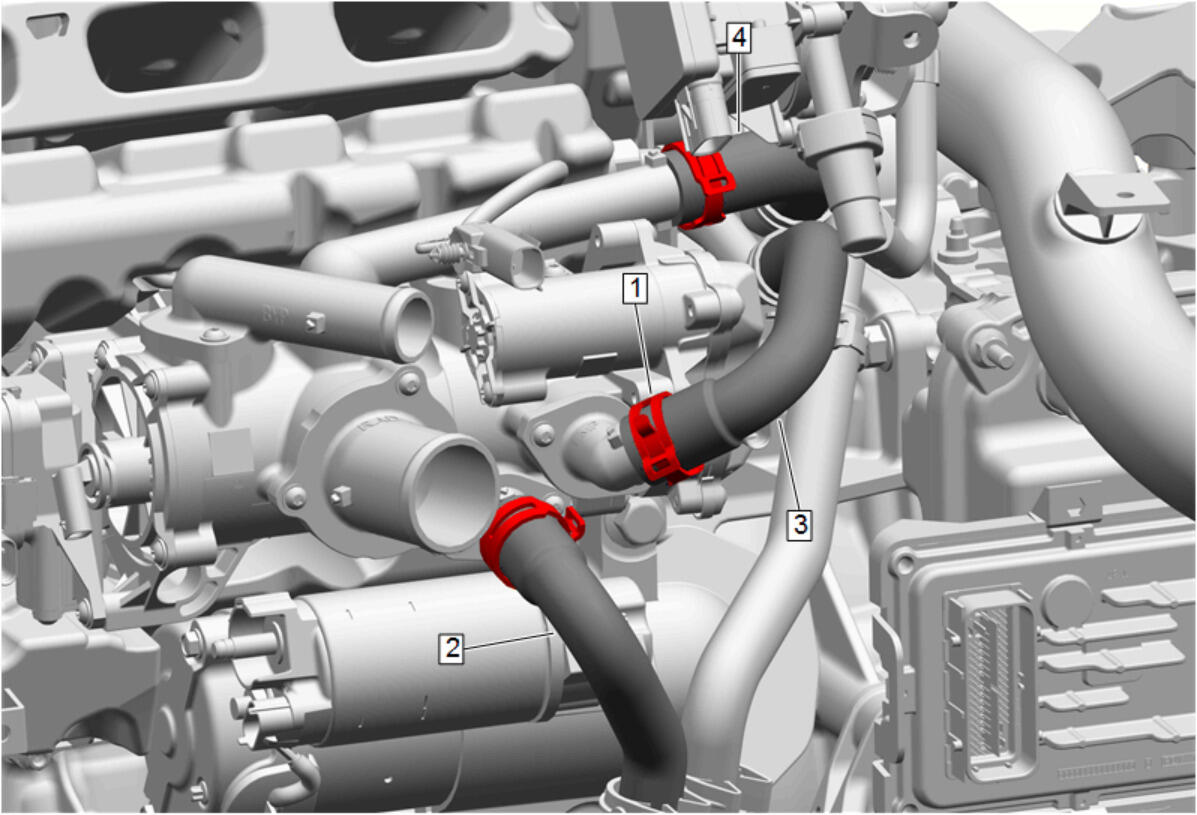

Engine Coolant Air Bleed Hose (4) @Engine Coolant Flow Control Valve - Install
Engine Coolant Air Bleed Hose (3) @Engine Coolant Flow Control Valve - Install
Engine Oil Cooler Coolant Inlet Hose (2) @Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [3x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

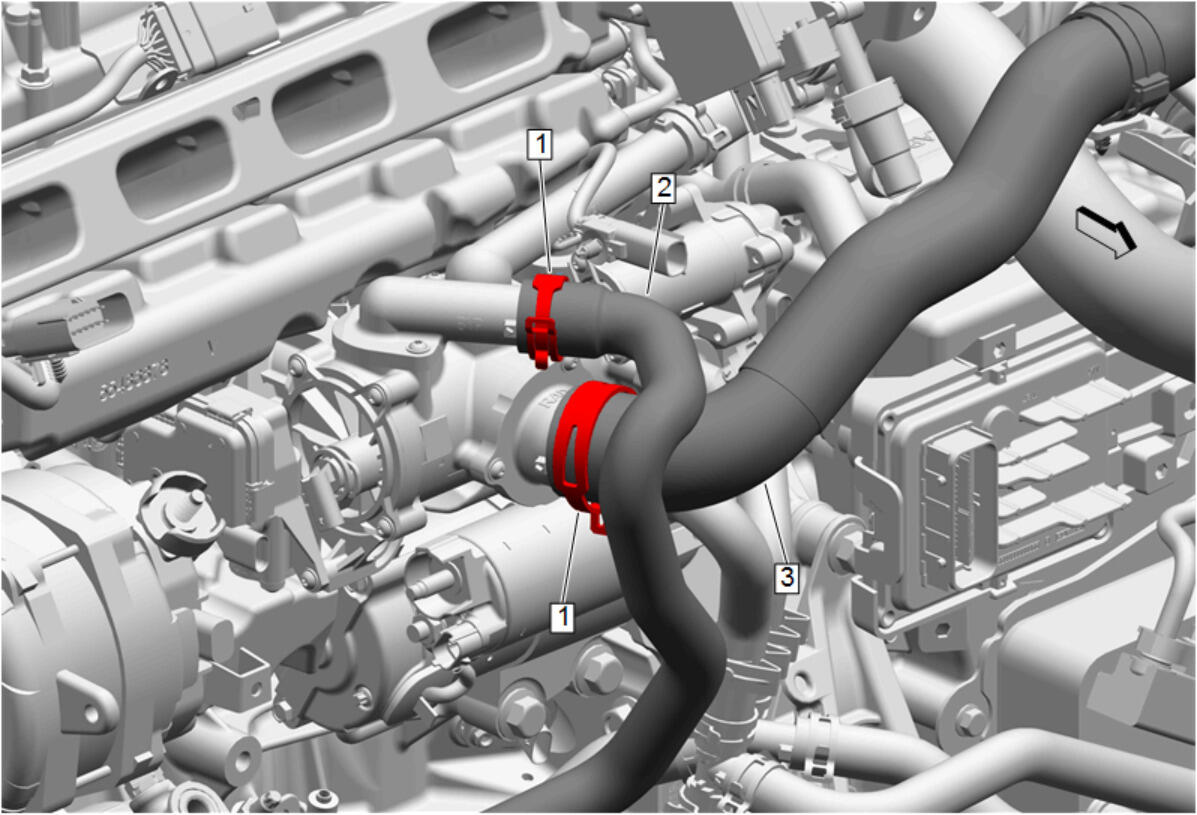

Radiator Inlet Hose (3) @Engine Coolant Flow Control Valve - Install
Thermostat Bypass Hose (2) @Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install the throttle body and the intake manifold together as an assembly.

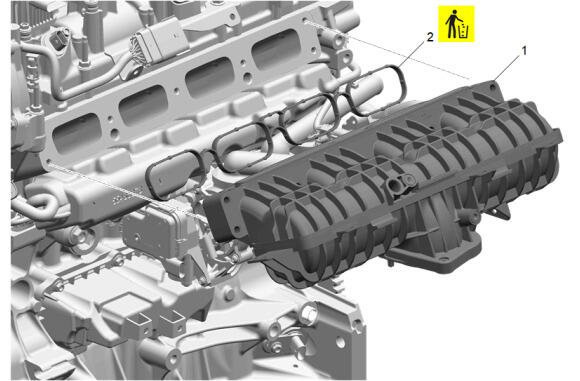

Intake Manifold (1) - Install - Intake Manifold Replacement
Fill the cooling system. Cooling System Draining and Filling (Static Fill LCV, LGX) , or Cooling System Draining and Filling (GE-47716 LCV, LGX) , or Cooling System Draining and Filling (Static Fill LSY) , or Cooling System Draining and Filling (GE-47716 LSY)
Start the engine and check for leaks.
