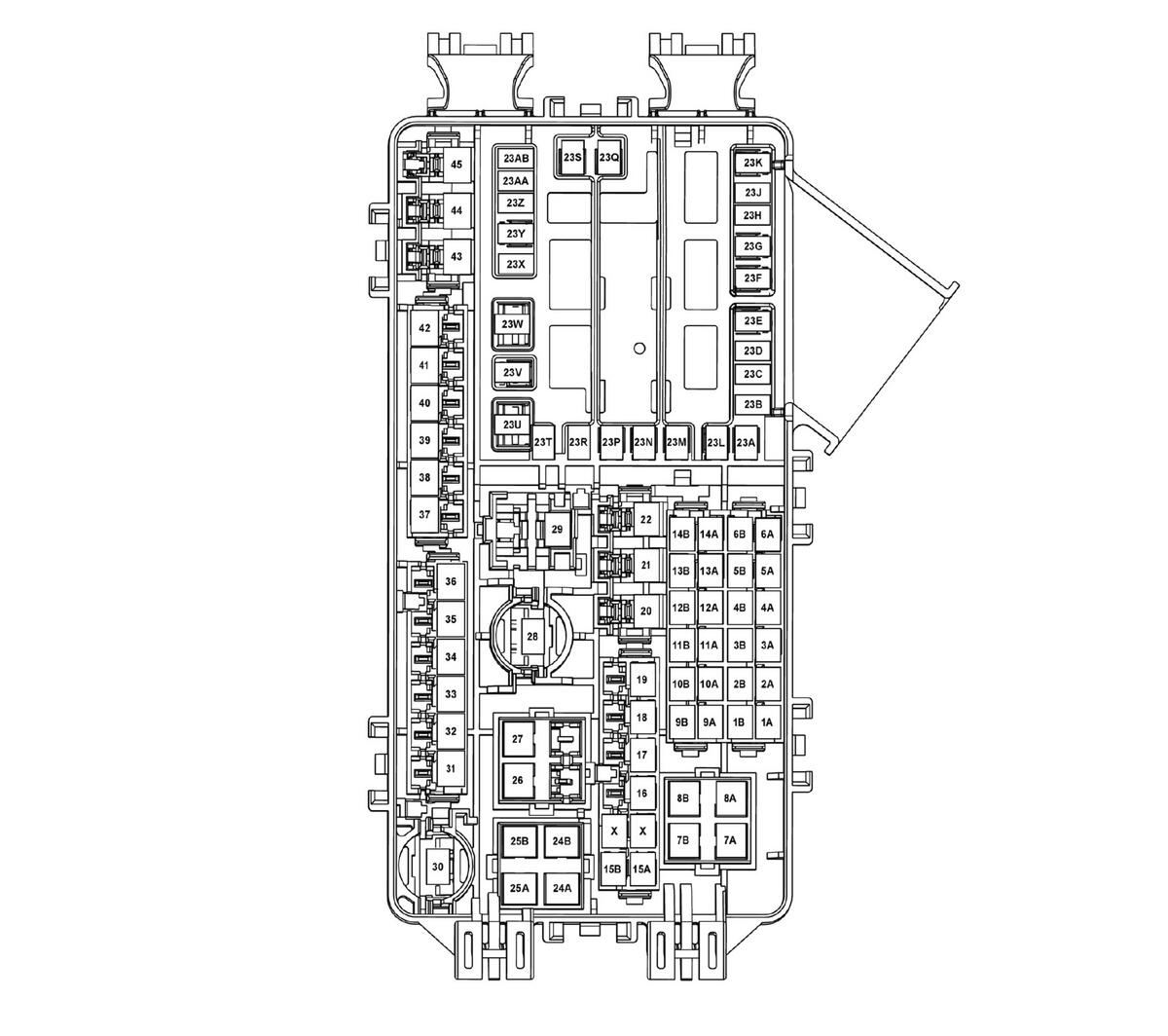

X51A Fuse Block - Instrument Panel Bottom View

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
GM4293773Courtesy of GENERAL MOTORS COMPANY
