K22 Cooling Fan Control Module
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

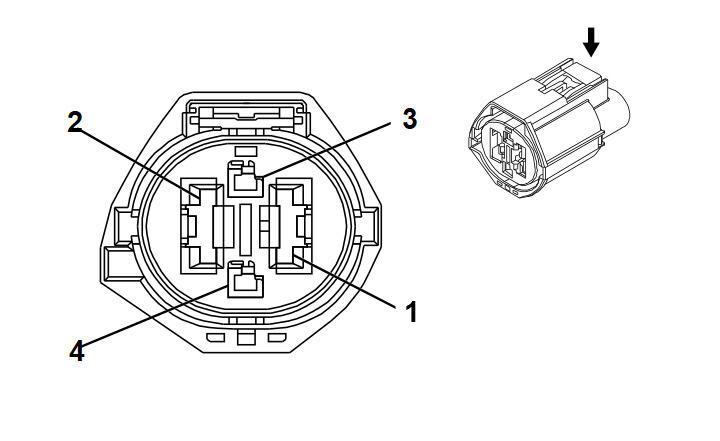

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13528406
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.5, 9.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD/GN |
242 |
Battery Positive Voltage |
II |
- |
| 2 |
10 |
BK |
450 |
Ground |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.75 |
GN/VT |
4621 |
Engine Control Module LIN Bus 1 |
I |
- |
