K157 Video Processing Control Module X3
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

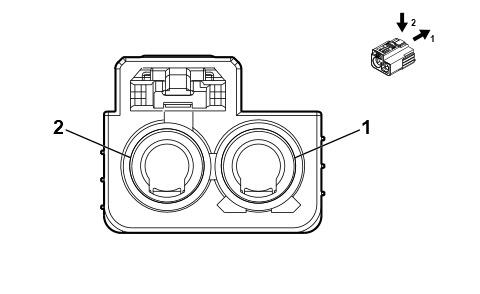

Connector Part Information
- Harness Type: Body Wiring Harness COAX
- OEM Connector: 13516084
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (RD)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
Rear Vision Camera Coaxial Video Signal |
I |
- |
