Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

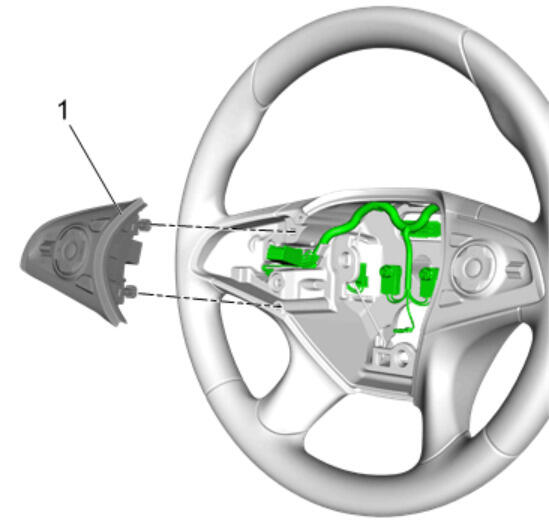

  1. GM4853559Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Switch (1) - Install

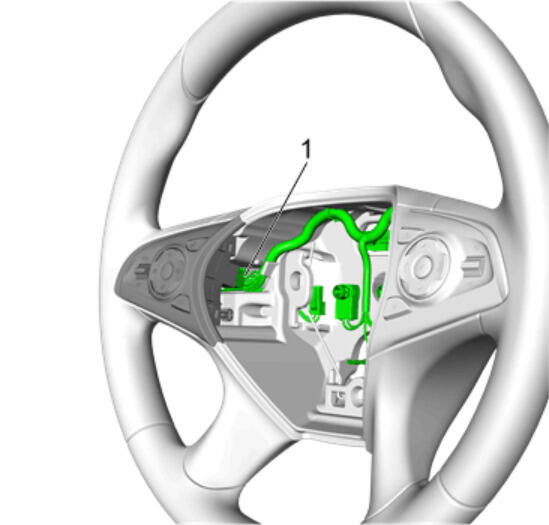

  2. GM4853650Courtesy of GENERAL MOTORS COMPANY

    Connect electrical connection (1).

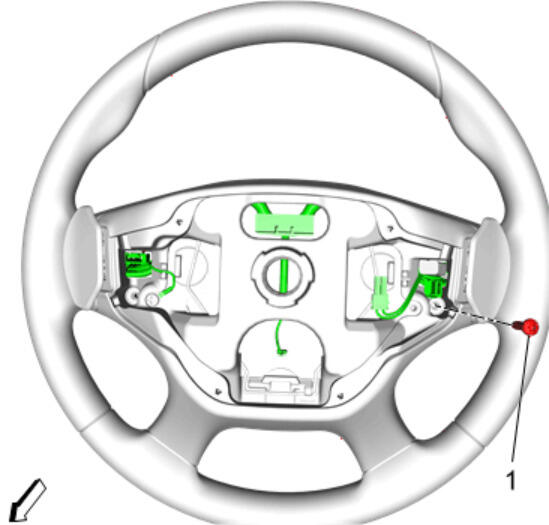

  3. GM4806693Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Cruise control switch screw (1) - Install and tighten 2.5 N.m (2 lb/in)

  4. GM4806246Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install

  5. GM4806049Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install - Steering Wheel Replacement

  6. GM4806796Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag (1) - Install - Steering Wheel Airbag Replacement
