Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

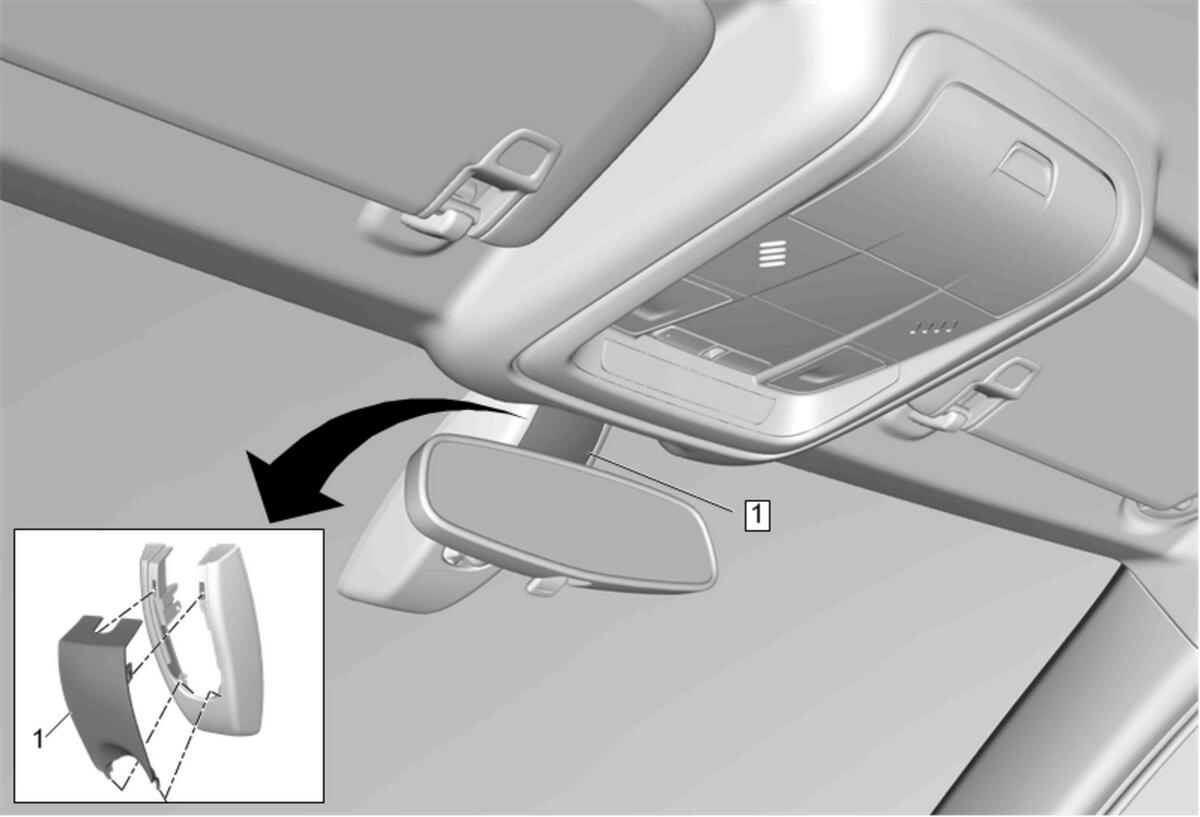

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Procedure Using a plastic trim tool, carefully pry downward on the cover to release from windshield. Squeeze tabs on insert and pull apart from cover.

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Procedure

Using a plastic trim tool, carefully pry downward on the cover to release from windshield.
Squeeze tabs on insert and pull apart from cover.
