Front View Driver Information Camera Bracket Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front View Camera Replacement

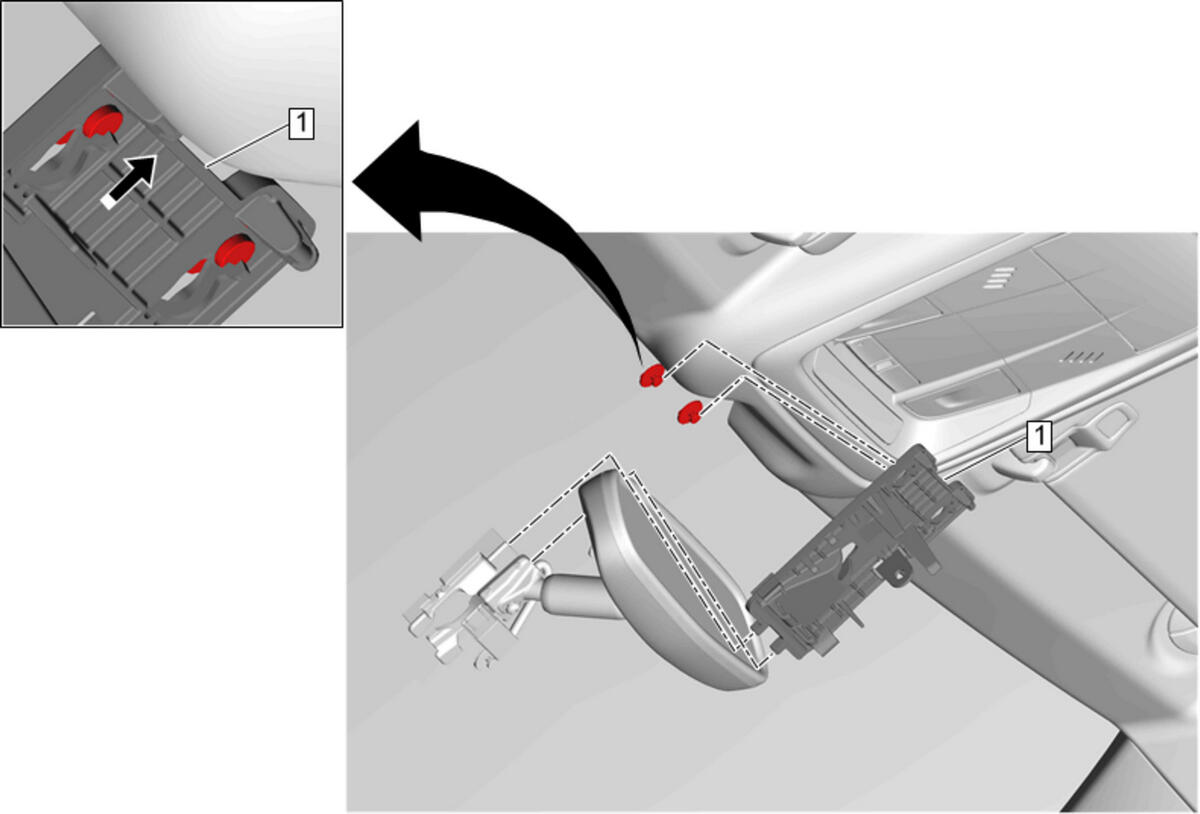

1	Front View Driver Information Camera Bracket Procedure Release inside air moisture and windshield temperature sensor harness retainer from camera bracket. Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield. Ensure the inside of the windshield is clean before reinstalling the bracket. NOTE: Do Not remove or service the sensor farm pins.

Callout

Component Name

Preliminary Procedure
Front View Camera Replacement

Front View Driver Information Camera Bracket

Procedure

Release inside air moisture and windshield temperature sensor harness retainer from camera bracket.
Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
