Installation Procedure

WARNING: This page is about a different variant/trim than selected.

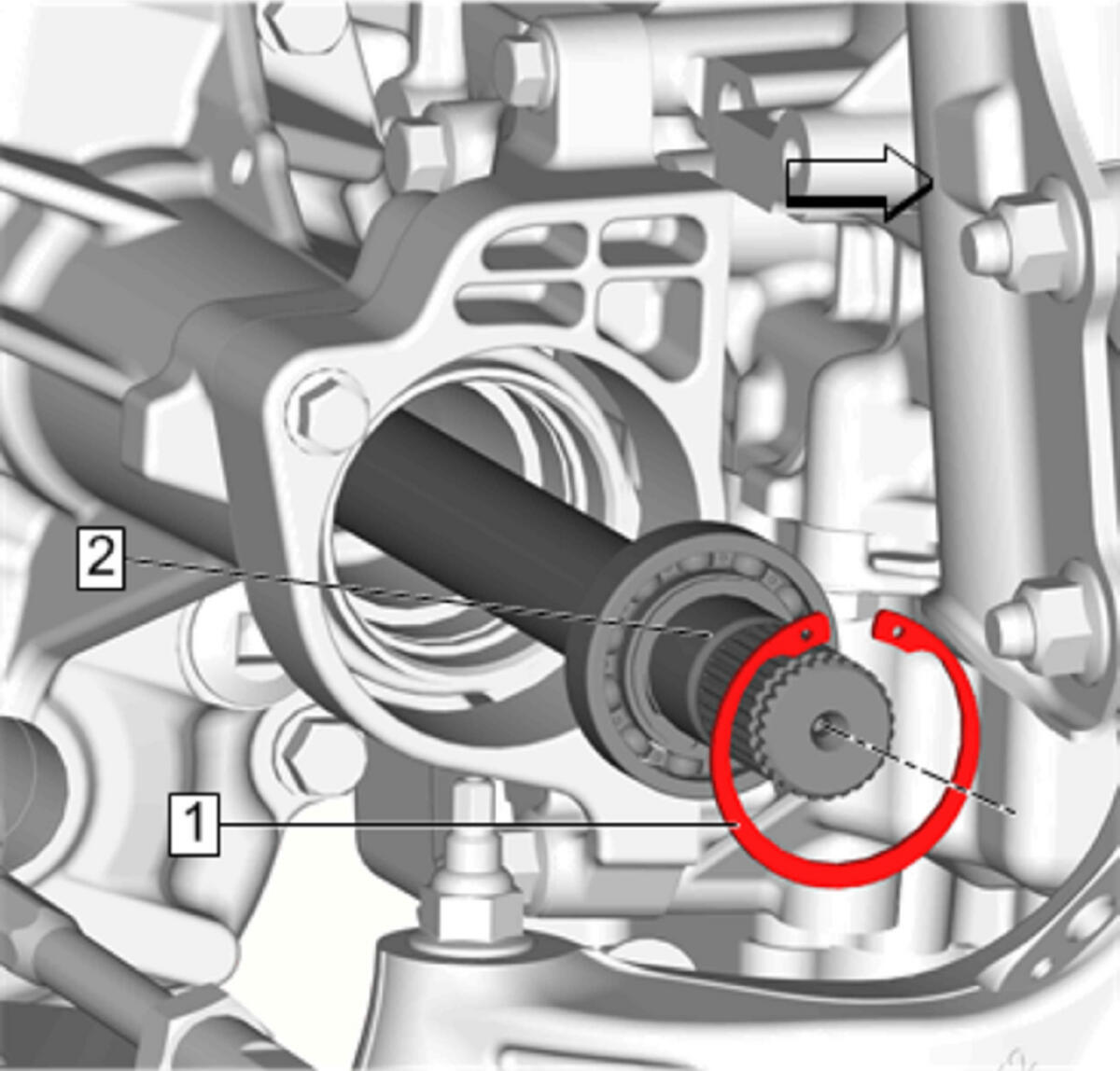

  1. GM3958699Courtesy of GENERAL MOTORS COMPANY

    Install the intermediate drive shaft (2) to the transfer case.

  2. Install the NEW intermediate drive shaft retainer (1) to the transfer case.
  3. Power Transfer Unit Cover to Intermediate Drive Shaft Seal Replacement  - Install
