Ground Views: G106
Courtesy of GENERAL MOTORS COMPANY

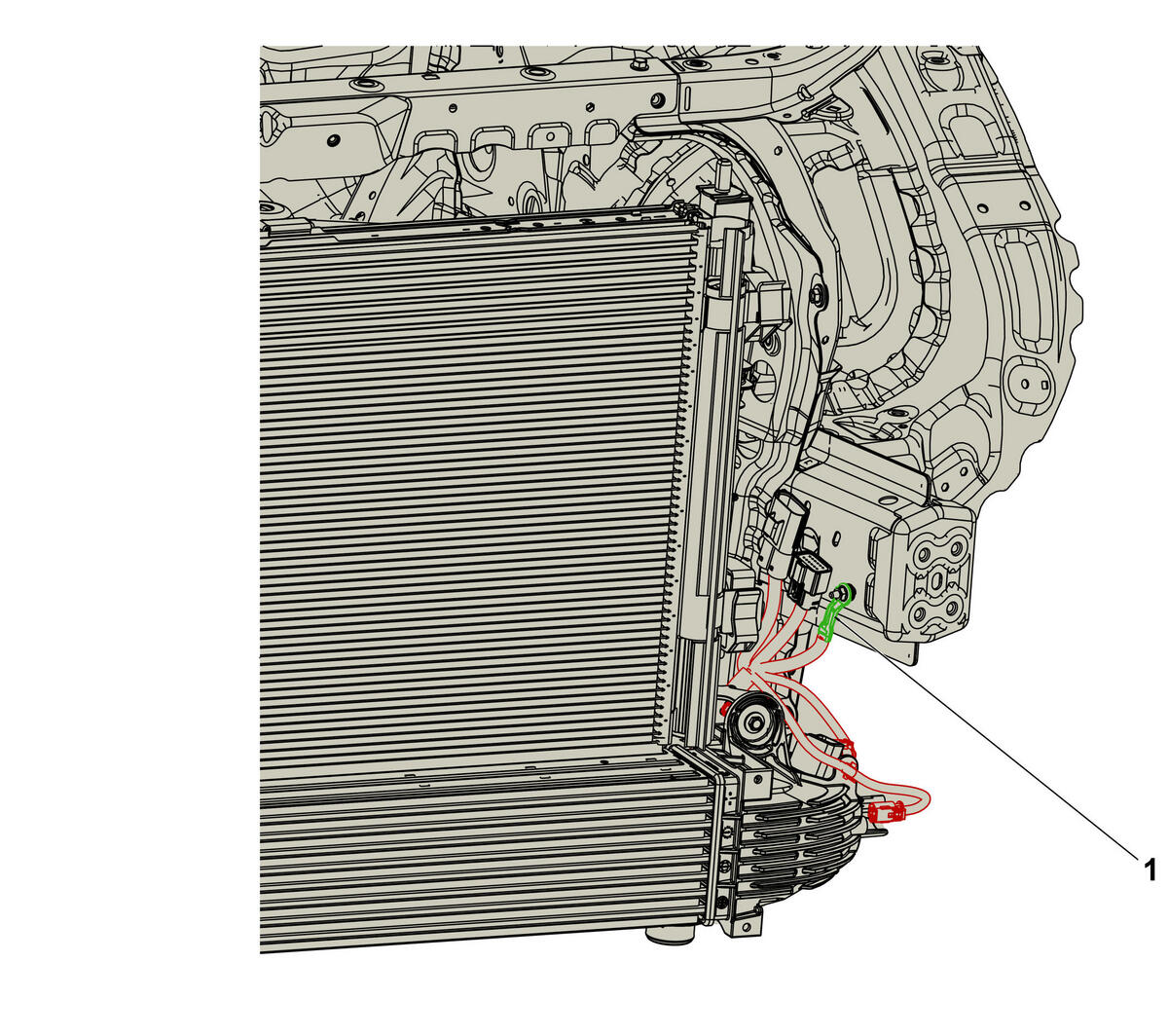

G106
Harness Name
Callout
G106 Engine Cooling Fan Harness
1
Courtesy of GENERAL MOTORS COMPANY
