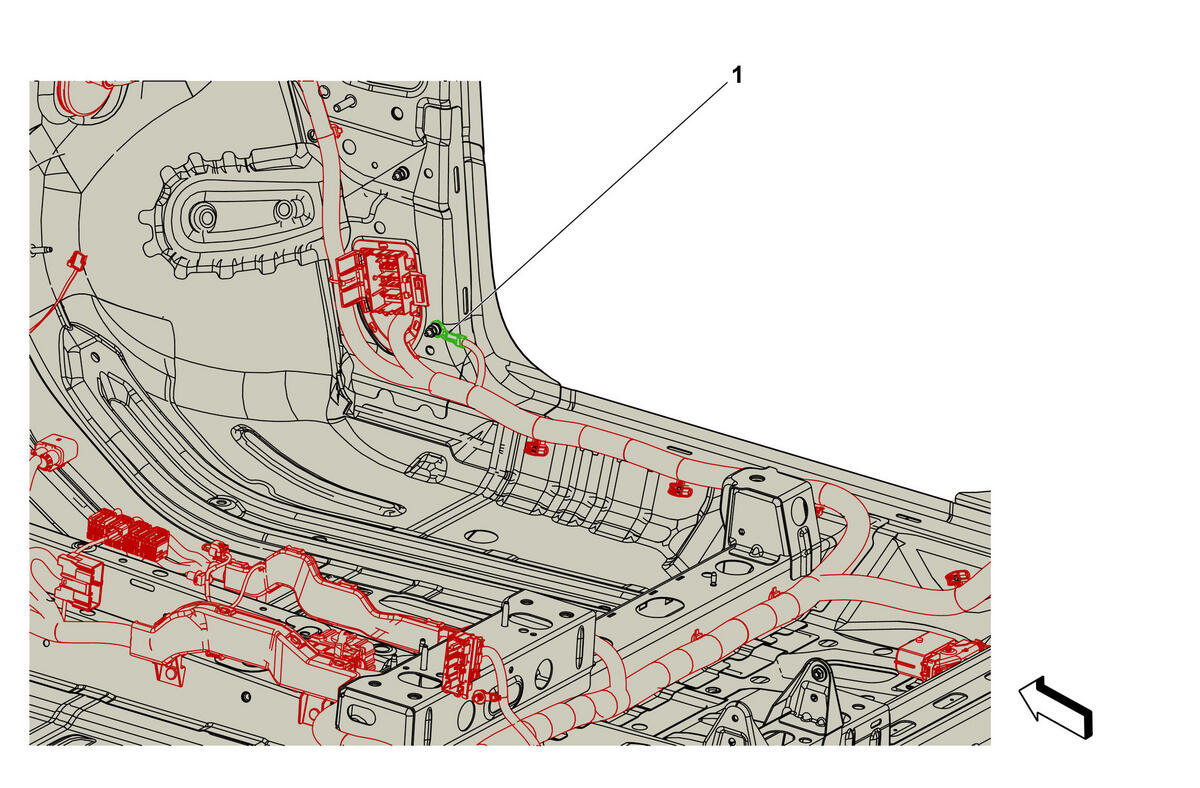

Ground Views: G205
Courtesy of GENERAL MOTORS COMPANY
G205
Harness Name
Callout
G205 Body Harness
1
Courtesy of GENERAL MOTORS COMPANY
