Removal Procedure

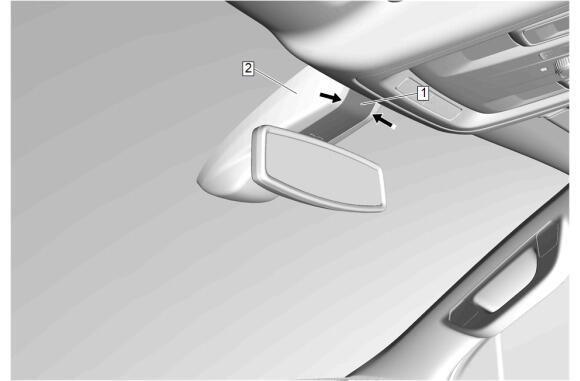

Insert a suitable flat-bladed plastic trim tool between the windshield multifunction sensor mount bracket cover insert (1) and windshield multifunction sensor mount bracket cover (2).
- Separate the windshield multifunction sensor mount bracket cover insert (1) from the windshield multifunction sensor mount bracket cover (2).
Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Remove
Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.
- Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.
Disconnect the electrical connector.
- Release the retaining tabs and rotate the front view camera (1) downward.
Slide the front view camera (1) rearward to release.
- Front View Camera (1) - Remove
NOTE:
Observe the mounting and location of the front view camera to ensure proper reinstallation.
