Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

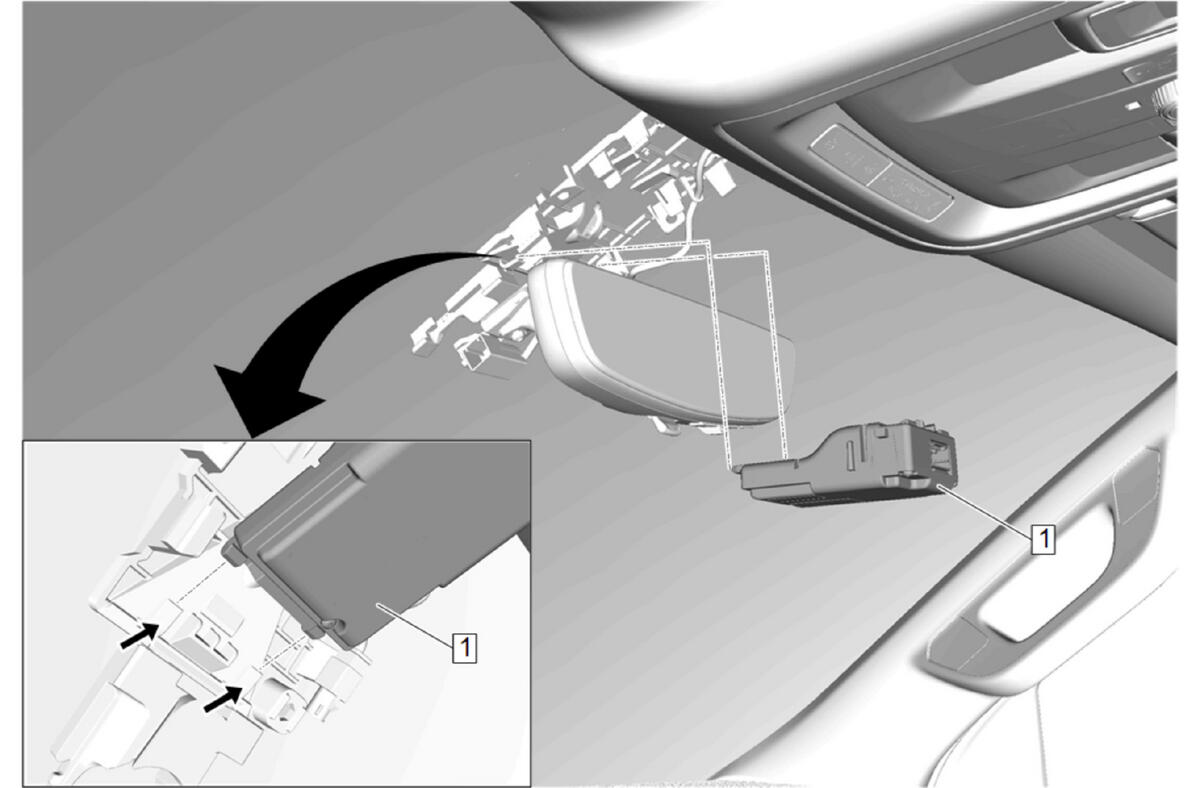

Front View Camera (1) - Install
Slide the front view camera (1) forward to engage.
Courtesy of GENERAL MOTORS COMPANY

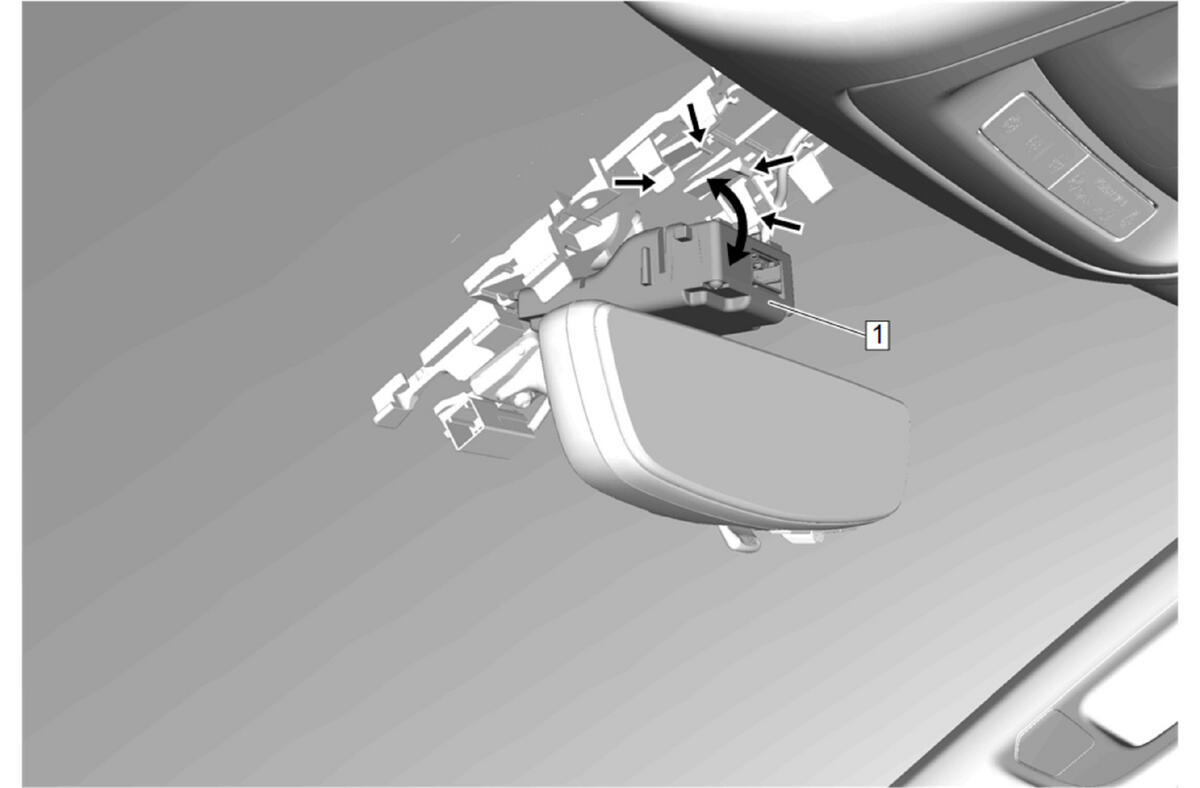

Rotate the front view camera (1) upward and secure the retaining tabs.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

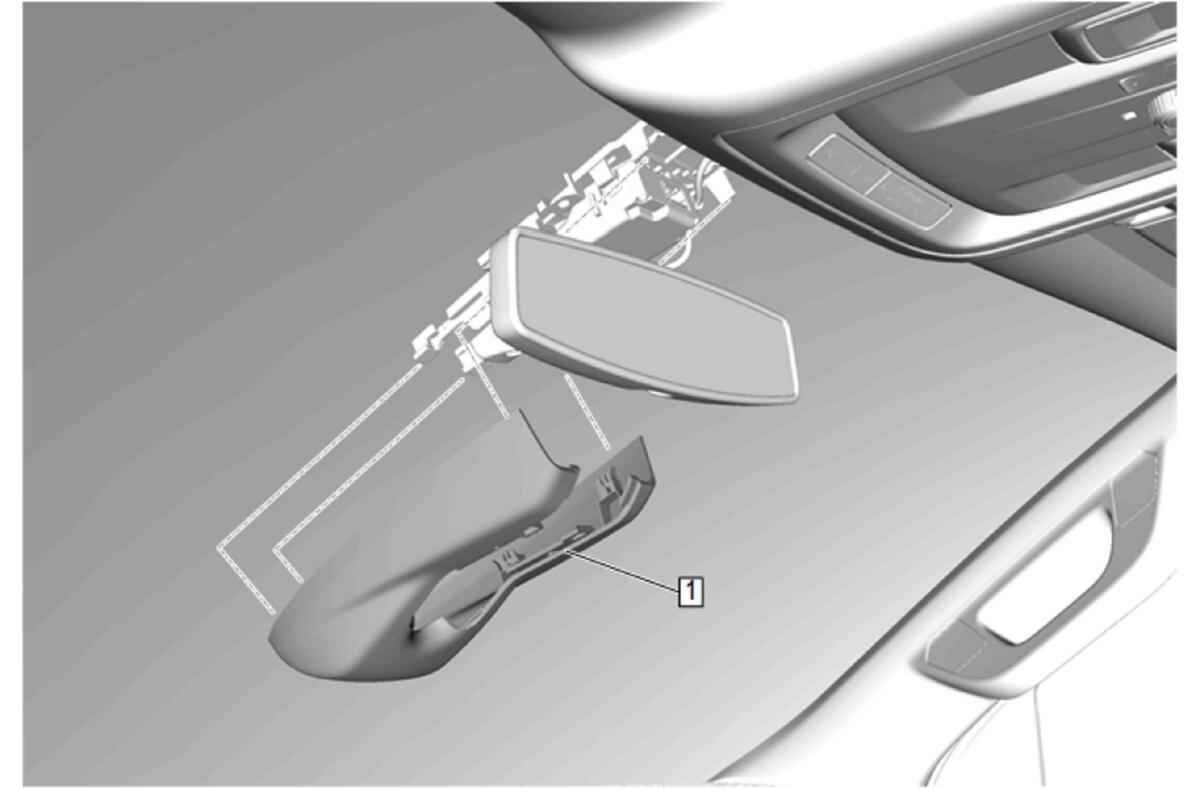

Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.
Courtesy of GENERAL MOTORS COMPANY

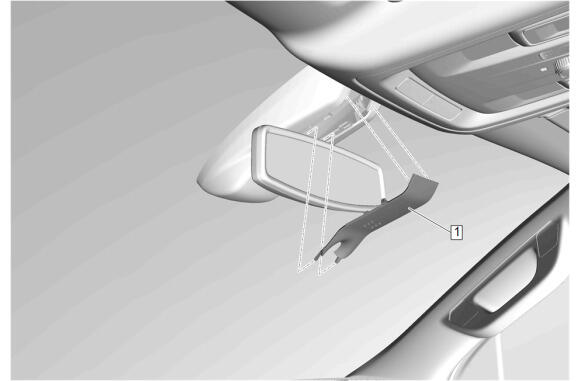

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
Perform the camera calibration procedure. Front View Camera - Windshield Learn
