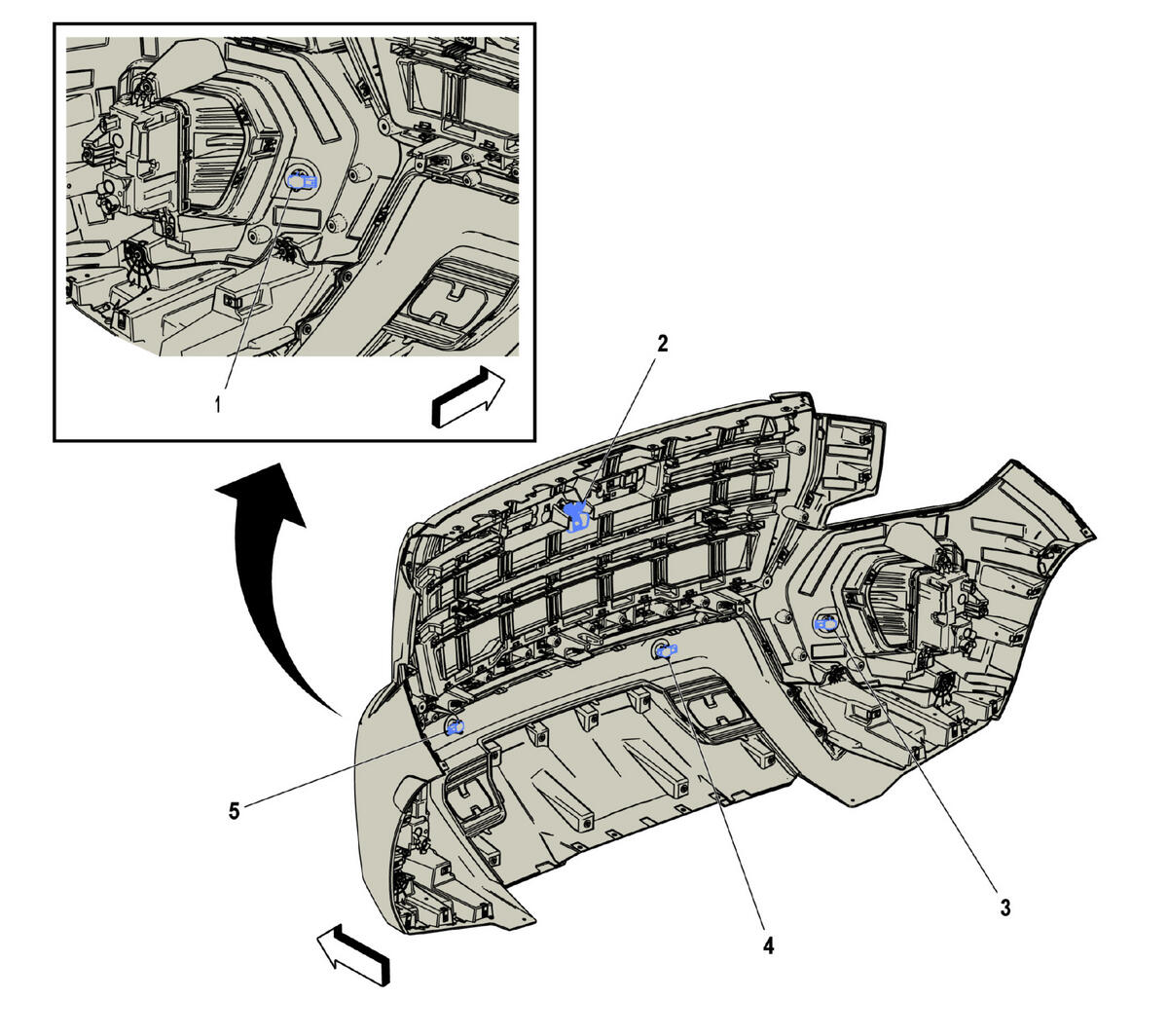

Front Fascia Components

GM5478624Courtesy of GENERAL MOTORS COMPANY
Front Fascia Components

Component Name Callout
B306A Parking Assist Alarm Sensor - Front Left Outer (UD5) B306A Parking Assist Alarm Sensor - Front Left Outer (UD5/UD7) 1
B174G Front View Driver Information Camera - Grille (UV2) B174G Front View Driver Information Camera - Grille (UV2/UVS) 2
B306D Parking Assist Alarm Sensor - Front Right Outer (UD5) B306D Parking Assist Alarm Sensor - Front Right Outer (UD5/UD7) 3
B306C Parking Assist Alarm Sensor - Front Right Middle (UD5) B306C Parking Assist Alarm Sensor - Front Right Middle (UD5/UD7) 4
B306B Parking Assist Alarm Sensor - Front Left Middle (UD5) B306B Parking Assist Alarm Sensor - Front Left Middle (UD5/UD7) 5
