Radiator Components (L84/L87)

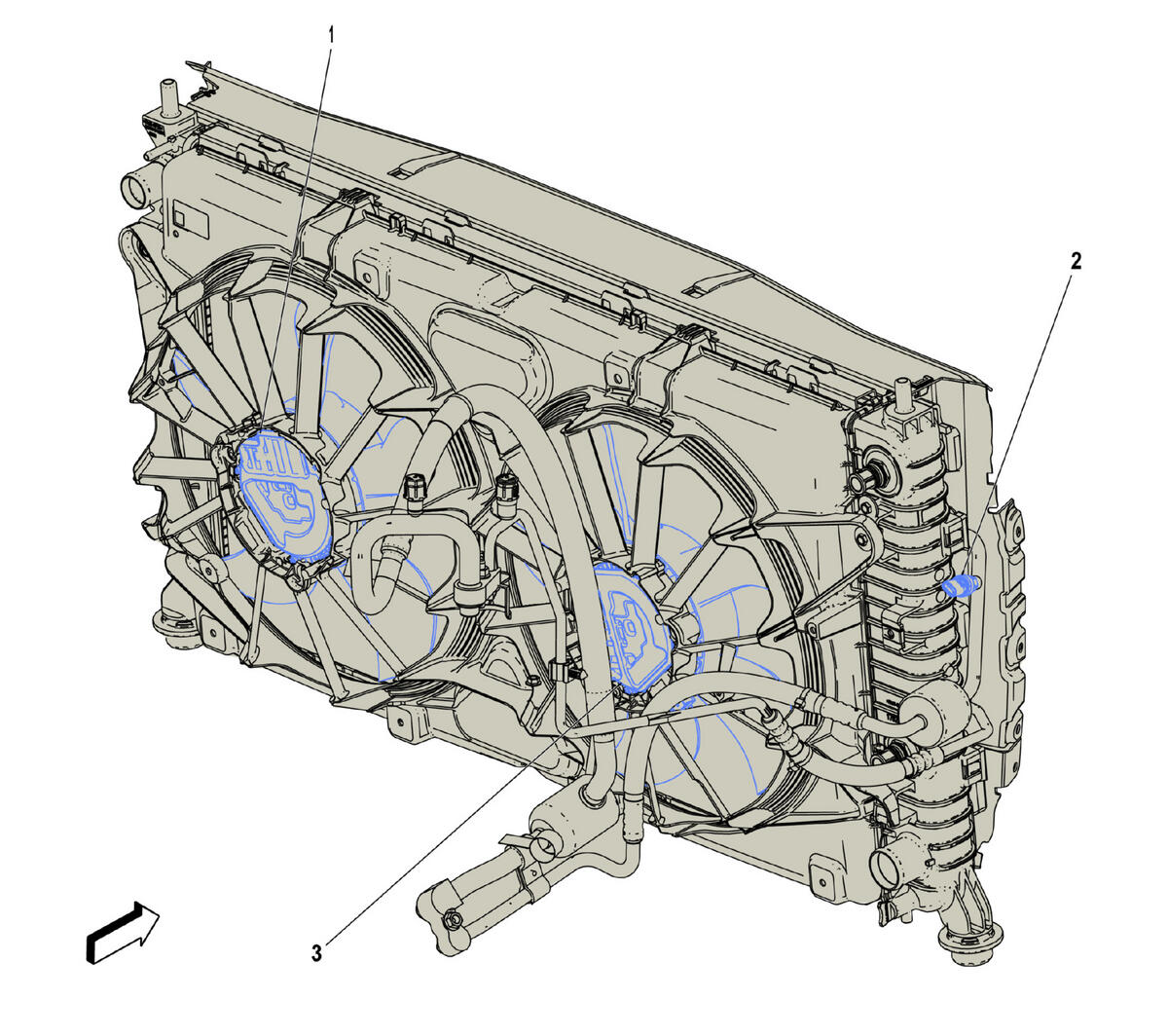

GM5501400Courtesy of GENERAL MOTORS COMPANY
Radiator Components (L84/L87)

Component Name Callout
G10L Engine Cooling Fan Motor - Left G10L Engine Cooling Fan Motor - Left (L84/L87) 1
B1 Air Conditioning Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor 2
G10R Engine Cooling Fan Motor - Right G10R Engine Cooling Fan Motor - Right (L84/L87) 3
