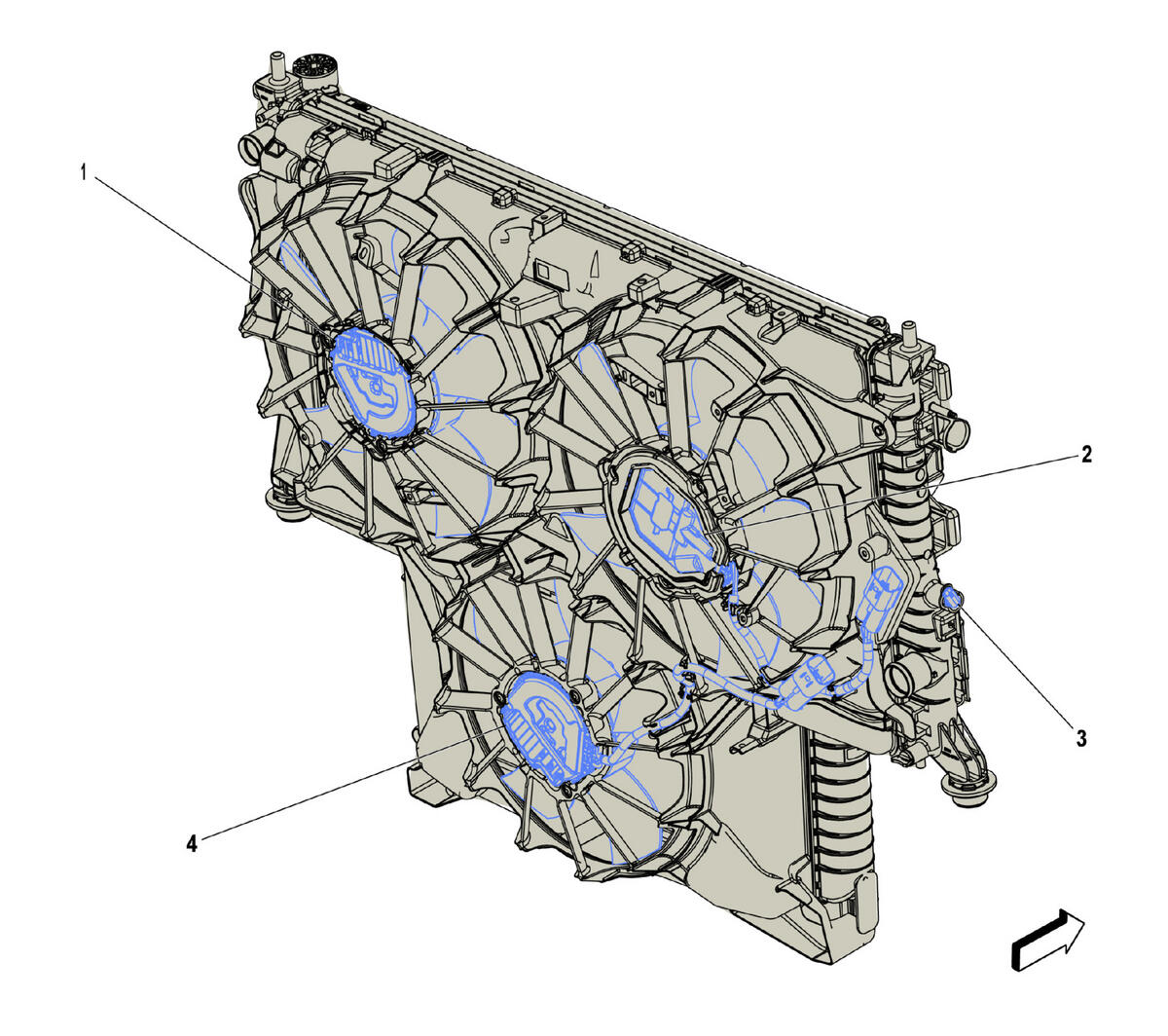

Radiator Components (LM2)

GM5731550Courtesy of GENERAL MOTORS COMPANY
Radiator Components (LM2)

Component Name Callout
G10L Engine Cooling Fan Motor - Left G10L Engine Cooling Fan Motor - Left (LM2) 1
G10LW Engine Cooling Fan Motor - Lower (LM2) G10LW Engine Cooling Fan Motor - Lower (LM2) 2
B203 Radiator Coolant Temperature Sensor (LM2) B203 Radiator Coolant Temperature Sensor (LM2) 3
G10R Engine Cooling Fan Motor - Right G10R Engine Cooling Fan Motor - Right (LM2) 4
