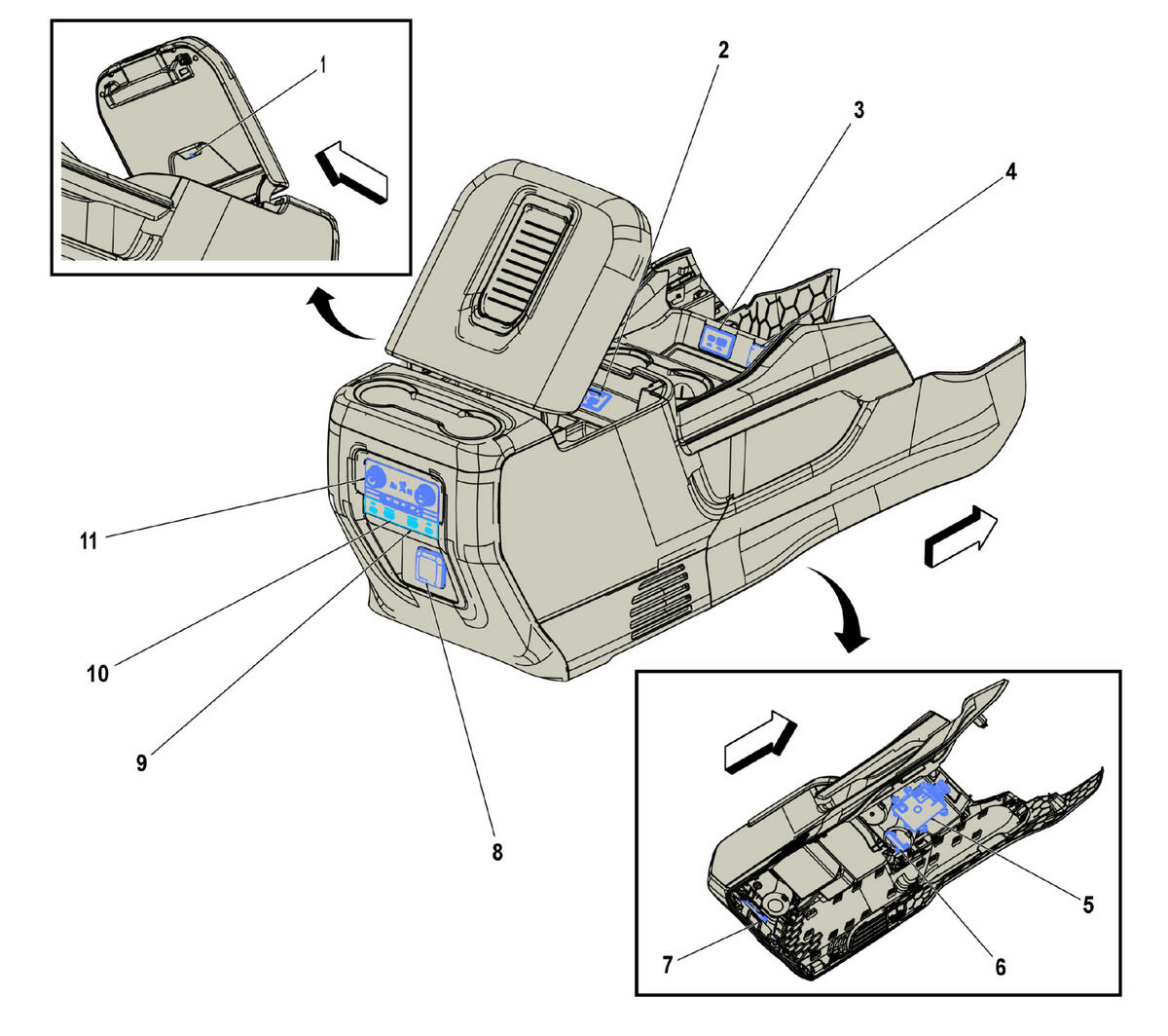

Floor Console Components (D07)

Courtesy of GENERAL MOTORS COMPANY

Items
1. E28 Front Floor Console Compartment Lamp (D07) E28 Front Floor Console Compartment Lamp
2. X92G USB 2 Port Receptacle X92G USB 2 Port Receptacle X1 (AZ3) , or X92G USB 2 Port Receptacle X1 (UW9+DCH) , or X92G USB 2 Port Receptacle X2 , or X92G USB 2 Port Receptacle X3 .
3. X23 Multimedia Receptacle X23 Multimedia Receptacle X1 (UW9) , or X23 Multimedia Receptacle X2 (MCR) , or X23 Multimedia Receptacle X3 (UW9) .
4. X80H Accessory Power Receptacle - Floor Console Front (D07/DCH/DCK) X80H Accessory Power Receptacle - Floor Console Front (D07/DCH/DCK)
5. T22 Wireless Accessory Charging Module (K4C) T22 Wireless Accessory Charging Module (K4C)
6. T10U Low Frequency Console Antenna - Front (-5W4-9C1) T10U Low Frequency Console Antenna - Front (D07/DCH/DCK)
7. T10KA Low Frequency Console Number 2 Antenna ((D07-5W4-9C1)/DCH/DCK) T10KA Low Frequency Console Number 2 Antenna (D07/DCH/DCK)
8. X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4) X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4+AZ3) , or X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4-AZ3) .
9. X92CD Dual Charge Only Receptacle - Floor Console Rear (USS-UW9) X92CD Dual Charge Only Receptacle - Floor Console Rear (USS)
10. X83B Audio/Video Receptacle X83B Audio/Video Receptacle X1 (UW9) , or X83B Audio/Video Receptacle X2 (UW9) , or X83B Audio/Video Receptacle X3 (UW9) .
11. A34 Heater and Air Conditioning Auxiliary Control (C69) A34 Heater and Air Conditioning Auxiliary Control (C69+(5W4/9C1)) , or A34 Heater and Air Conditioning Auxiliary Control (C69-5W4-9C1) .
