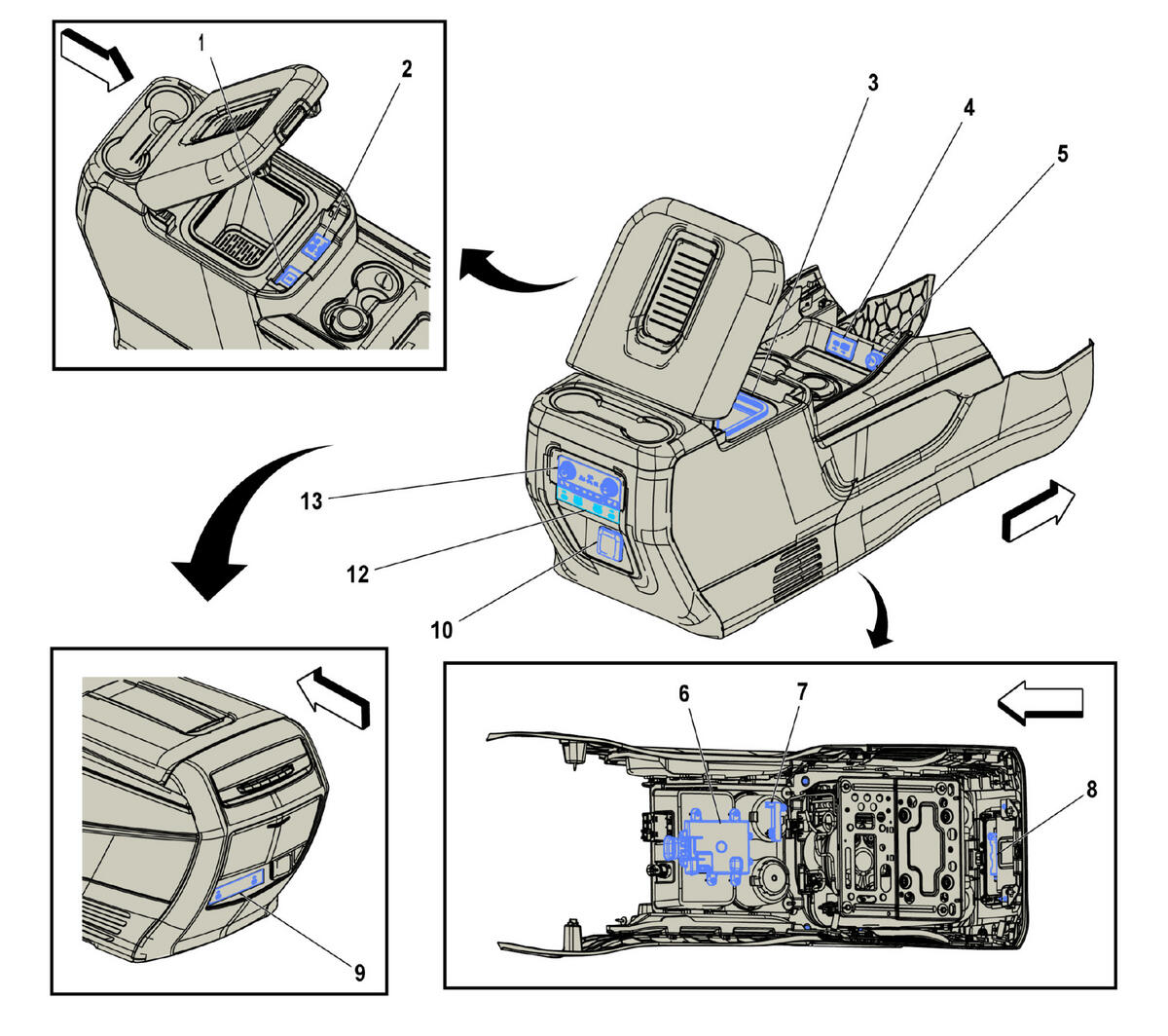

Floor Console Components (DCK)

Courtesy of GENERAL MOTORS COMPANY

Items
1. S145 Beverage Cooler Switch (DCK) S145 Beverage Cooler Switch (DCK)
2. X23 Multimedia Receptacle X23 Multimedia Receptacle X1 (UW9) , or X23 Multimedia Receptacle X2 (MCR) , or X23 Multimedia Receptacle X3 (UW9) .
3. K175 Front Floor Console Compartment Cooler (DCK) K175 Front Floor Console Compartment Cooler (DCK)
4. X92G USB 2 Port Receptacle X92G USB 2 Port Receptacle X1 (AZ3) , or X92G USB 2 Port Receptacle X1 (UW9+DCH) , or X92G USB 2 Port Receptacle X2 , or X92G USB 2 Port Receptacle X3 .
5. X80H Accessory Power Receptacle - Floor Console Front (D07/DCH/DCK) X80H Accessory Power Receptacle - Floor Console Front (D07/DCH/DCK)
6. T22 Wireless Accessory Charging Module (K4C) T22 Wireless Accessory Charging Module (K4C)
7. T10U Low Frequency Console Antenna - Front (-5W4-9C1) T10U Low Frequency Console Antenna - Front (D07/DCH/DCK)
8. T10J Low Frequency Instrument Panel Antenna T10J Low Frequency Instrument Panel Antenna (5W4/9C1/AZ3)
9. X92CD Dual Charge Only Receptacle - Floor Console Rear (USS-UW9) X92CD Dual Charge Only Receptacle - Floor Console Rear (USS)
10. X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4) X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4+AZ3) , or X81AC Accessory Power Receptacle - Floor Console 110V AC (KI4-AZ3) .
11. X83B Audio/Video Receptacle X83B Audio/Video Receptacle X1 (UW9) , or X83B Audio/Video Receptacle X2 (UW9) , or X83B Audio/Video Receptacle X3 (UW9) .
12. A34 Heater and Air Conditioning Auxiliary Control (C69) A34 Heater and Air Conditioning Auxiliary Control (C69+(5W4/9C1)) , or A34 Heater and Air Conditioning Auxiliary Control (C69-5W4-9C1) .
