Instrument Panel Components - Center

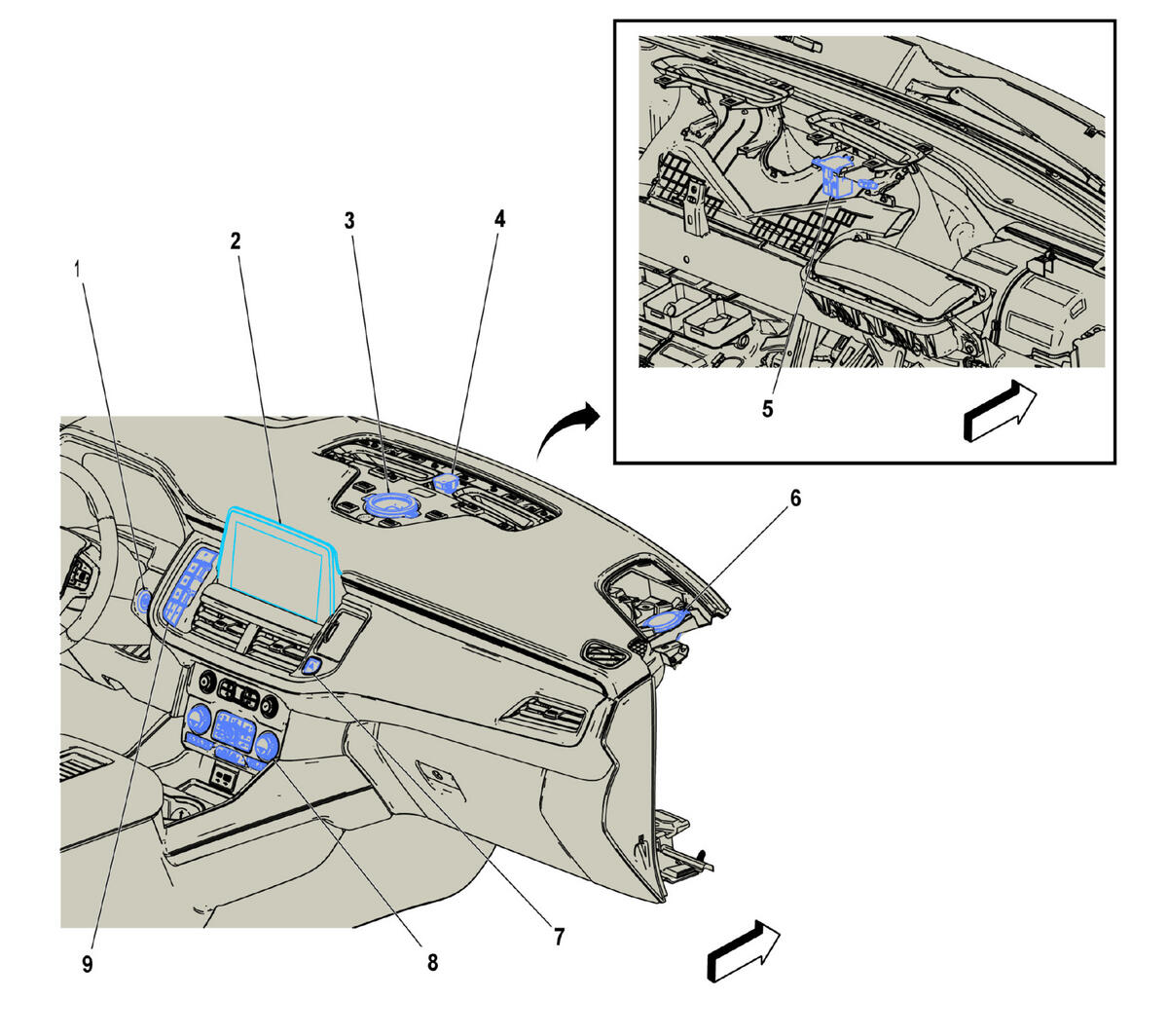

GM5661445Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components - Center

Items
1. S38 On/Off Vehicle Switch (BTM) S38 On/Off Vehicle Switch
2. A22 Radio Control (UIR)
A22 Radio Control X1 , or
A22 Radio Control X2 (UV2/UVB) .
3. P19B Radio Front Center Speaker (UQP/UQS) P19B Radio Front Center Speaker (UQP/UQS)
4. B10D Sun Load and Ambient Light and Security Indicator Sensor B10D Sun Load and Ambient Light and Security Indicator Sensor
5. T4TA Auxiliary Wireless Communication Interface Antenna (VV4) T4TA Auxiliary Wireless Communication Interface Antenna (VV4)
6. P19W Radio Front Speaker - Instrument Panel Right
P19W Radio Front Speaker - Instrument Panel Right (UQF) , or
P19W Radio Front Speaker - Instrument Panel Right (UQA/UQP/UQS) .
7. S26 Hazard Warning Switch S26 Hazard Warning Switch
8. A26 Heater and Air Conditioning User Interface Control - Front (IOR) A26 Heater and Air Conditioning User Interface Control - Front
9. K212 Gear Shift Control Module K212 Gear Shift Control Module
