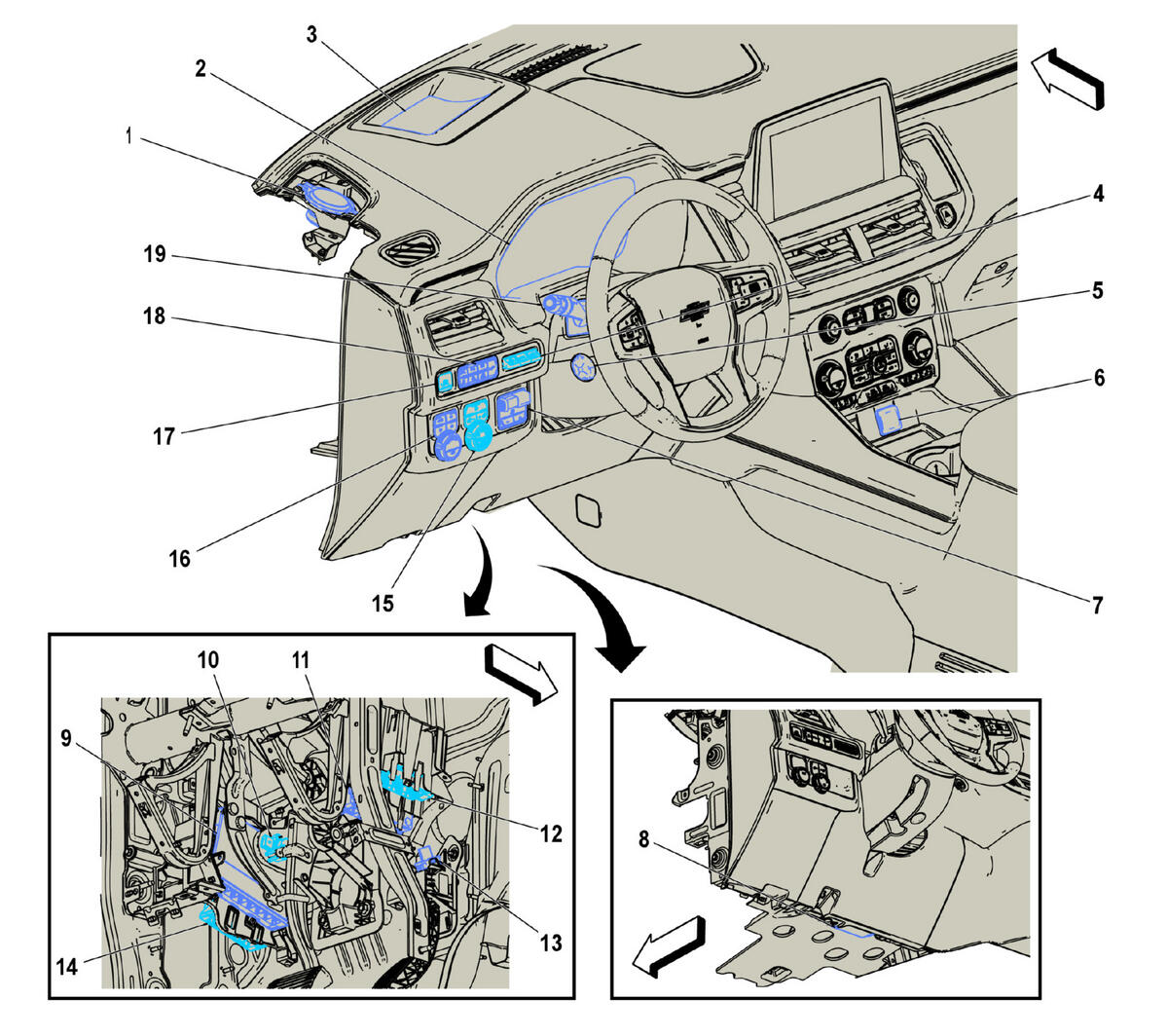

Instrument Panel Components - Left

GM5508904Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components - Left

Items
1. P19J Radio Front Speaker - Instrument Panel Left
P19J Radio Front Speaker - Instrument Panel Left (UQF) , or
P19J Radio Front Speaker - Instrument Panel Left (UQA/UQS/UQP) .
2. P16 Instrument Panel Cluster Control Module
P16 Instrument Panel Cluster Control Module X1 , or
P16 Instrument Panel Cluster Control Module X2 (UV6) .
3. P43 Forward Collision Alert Display ((UHX/UEU)-UV6) P43 Forward Collision Alert Display (UEU-UV6)
4. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6)
5. S71 Steering Column Tilt Wheel and Telescope Switch (N38) S71 Steering Column Tilt Wheel and Telescope Switch (N38)
6. X80G Accessory Power Receptacle - Instrument Panel (AZ3) X80G Accessory Power Receptacle - Instrument Panel (KC5)
7. S76 Trailer Brake Control Switch S76 Trailer Brake Control Switch (JL1)
8. X51AX Instrument Panel Wiring Harness Junction Block - Auxiliary (5W4/9C1) X51AX Instrument Panel Wiring Harness Junction Block - Auxiliary (5W4/9C1)
9. K9 Body Control Module
K9 Body Control Module X1 , or
K9 Body Control Module X2 , or
K9 Body Control Module X3 , or
K9 Body Control Module X4 , or
K9 Body Control Module X5 , or
K9 Body Control Module X6 , or
K9 Body Control Module X7 , or
K9 Body Control Module X8 .
10. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
11. K73 Telematic Control Module (UE1)
K73 Telematic Control Module X1 (-5W4-9C1) , or
K73 Telematic Control Module X1 (5W4/9C1) , or
K73 Telematic Control Module X2 , or
K73 Telematic Control Module X3 .
12. K56 Serial Data Gateway Module
K56 Serial Data Gateway Module X1 , or
K56 Serial Data Gateway Module X2 , or
K56 Serial Data Gateway Module X3 .
13. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
14. K219 Lighting Control Module
K219 Lighting Control Module X1 , or
K219 Lighting Control Module X2 , or
K219 Lighting Control Module X3 , or
K219 Lighting Control Module X4 , or
K219 Lighting Control Module X5 .
15. S30 Headlamp Switch S30 Headlamp Switch
16. S126 Ride Control Switch (URC) S126 Ride Control Switch
17. S91 Parking Brake Control Switch S91 Parking Brake Control Switch
18. S86 Vehicle Stability Control System Switch S86 Vehicle Stability Control System Switch
19. S78 Turn Signal Switch S78 Turn Signal Switch
