Instrument Panel Components - Right

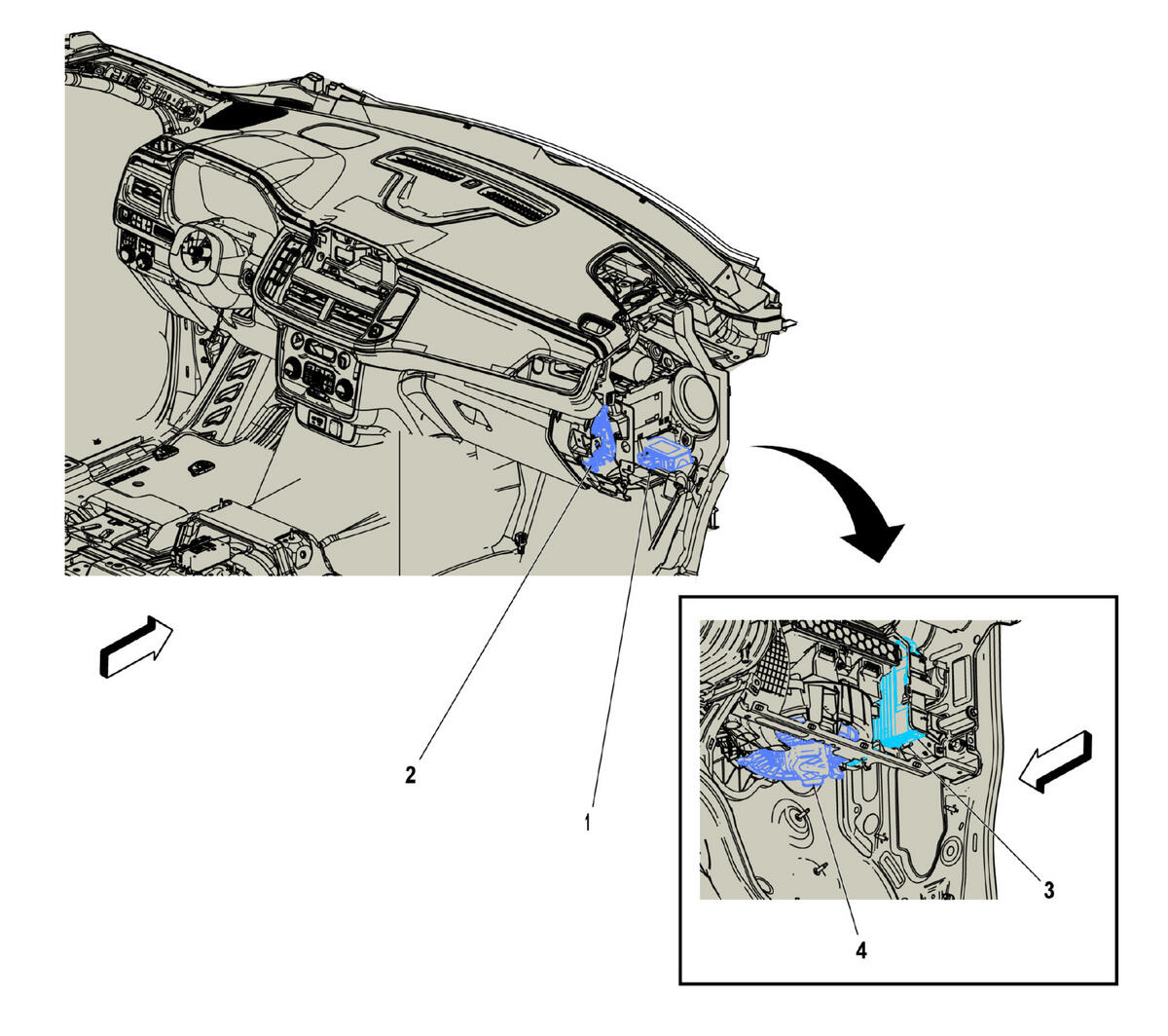

GM5508906Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components - Right

Items
1. T19 Multifunction Power Supply Converter (KL9) T19 Multifunction Power Supply Converter
2. X51R Instrument Panel Wiring Harness Junction Block - Right
X51R Instrument Panel Wiring Harness Junction Block - Right X1 , or
X51R Instrument Panel Wiring Harness Junction Block - Right X2 , or
X51R Instrument Panel Wiring Harness Junction Block - Right X3 .
3. A11 Radio
A11 Radio X1 (IOR+(5W4/9C1)) , or
A11 Radio X1 (IOR-5W4-9C1) , or
A11 Radio X1 (IOS/IOT) , or
A11 Radio X10 (IOS/IOT) , or
A11 Radio X2 (IOR+(5W4/9C1)) , or
A11 Radio X2 (IOR-5W4-9C1) , or
A11 Radio X2 (IOS/IOT) , or
A11 Radio X3 (IOR) , or
A11 Radio X3 (IOS/IOT) , or
A11 Radio X4 (IOR) , or
A11 Radio X4 (IOS/IOT) , or
A11 Radio X5 , or
A11 Radio X6 (IOR) , or
A11 Radio X6 (IOS/IOT) , or
A11 Radio X7 (IOS/IOT) , or
A11 Radio X8 (IOR) , or
A11 Radio X9 (IOS/IOT) .
4. M8 Blower Motor M8 Blower Motor
