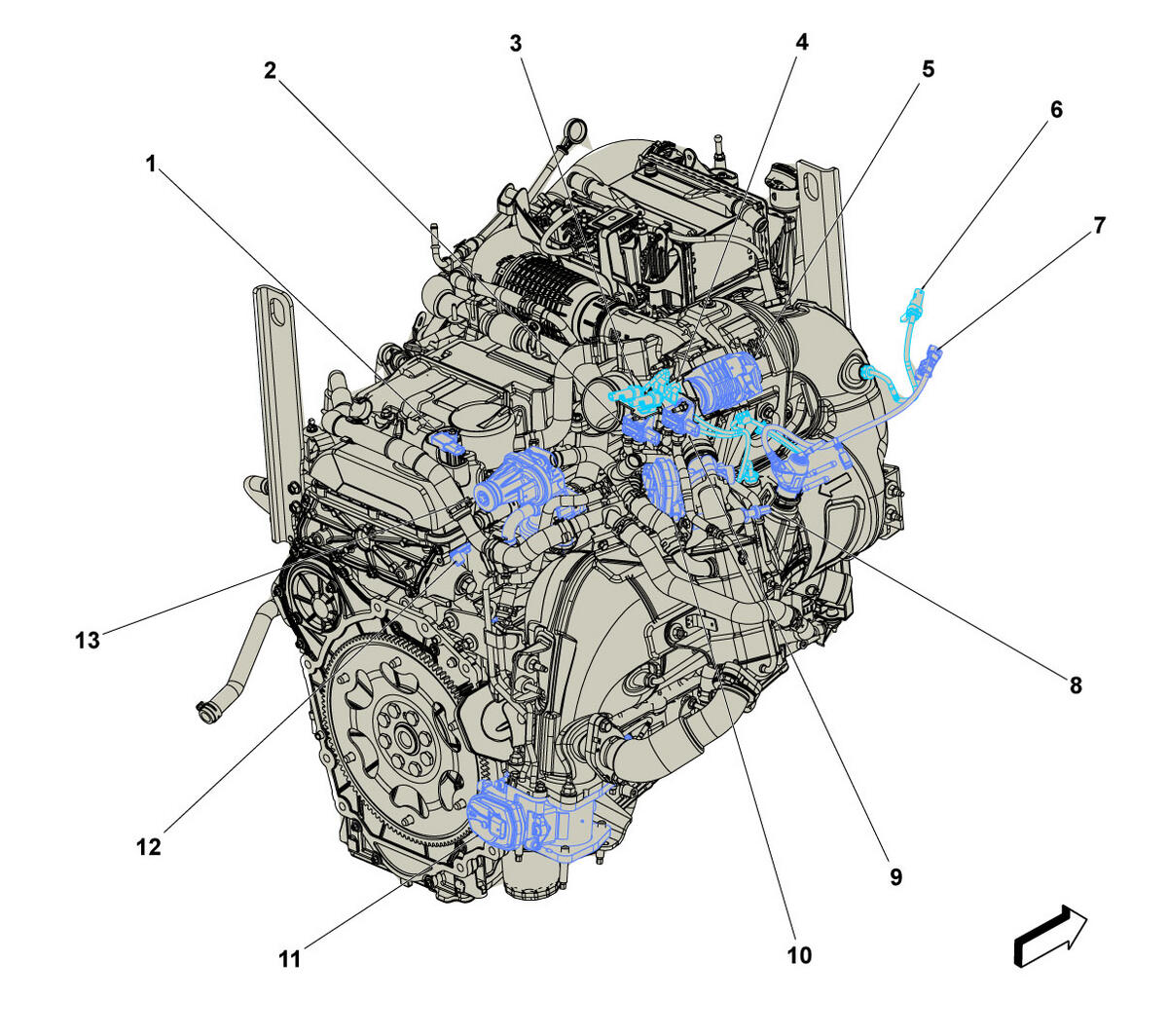

Engine Components - Right Rear (LM2)
Engine Components - Right Rear (LM2)
| Component Name | Callout |
|---|---|
| B321 Crankcase Pressure Sensor (LM2) B321 Crankcase Pressure Sensor (LM2) | 1 |
| B345P Exhaust Pressure Differential Sensor - Particulate Filter (LM2) B345P Exhaust Pressure Differential Sensor - Particulate Filter (LM2) | 2 |
| B130A Exhaust Gas Recirculation Temperature Sensor 1 (LM2) B130A Exhaust Gas Recirculation Temperature Sensor 1 (LM2) | 3 |
| B131B Exhaust Gas Temperature Sensor 2 (LM2) B131B Exhaust Gas Temperature Sensor 2 (LM2) | 4 |
| M103 Turbocharger Vane Position Actuator (LM2) M103 Turbocharger Vane Position Actuator (LM2) | 5 |
| B131A Exhaust Gas Temperature Sensor 1 (LM2) B131A Exhaust Gas Temperature Sensor 1 (LM2) | 6 |
| Q61 Reductant Fluid Injector (LM2) Q61 Reductant Fluid Injector (LM2) | 7 |
| B130C Exhaust Gas Recirculation Temperature Sensor 3 (LM2) B130C Exhaust Gas Recirculation Temperature Sensor 3 (LM2) | 8 |
| B345R Exhaust Pressure Differential Sensor - Exhaust Gas Recirculation (LM2) B345R Exhaust Pressure Differential Sensor - Exhaust Gas Recirculation (LM2) | 9 |
| Q14B Exhaust Gas Recirculation Valve 2 (LM2) Q14B Exhaust Gas Recirculation Valve 2 (LM2) | 10 |
| M122 Exhaust Pressure Regulator Valve (LM2) M122 Exhaust Pressure Regulator Valve (LM2) | 11 |
| B23E Camshaft Position Sensor - Exhaust (LM2) B23E Camshaft Position Sensor - Exhaust (LM2) | 12 |
| Q14A Exhaust Gas Recirculation Valve 1 (LM2) Q14A Exhaust Gas Recirculation Valve 1 (LM2) | 13 |
