Transfer Case Components (NP0/NQH)

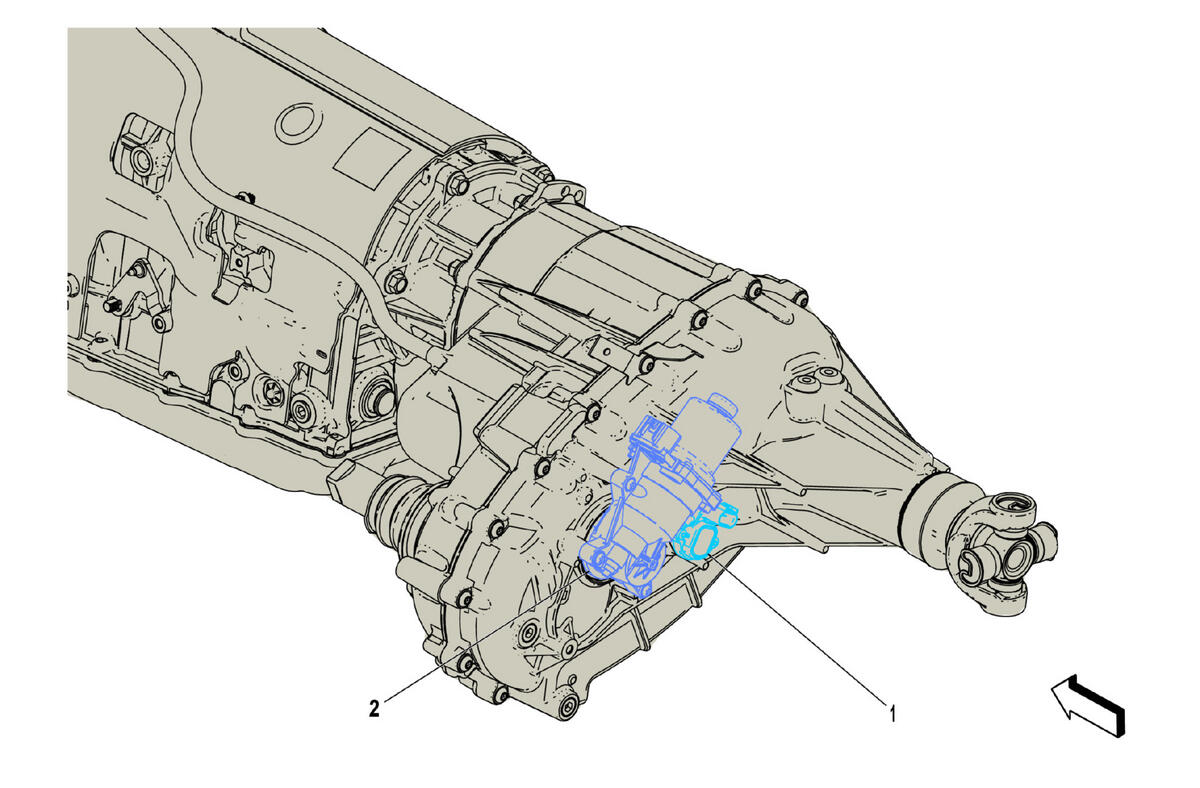

GM5479524Courtesy of GENERAL MOTORS COMPANY
Transfer Case Components (NP0/NQH)

Component Name Callout
B139 Transfer Case Two/Four Wheel Drive Actuator Position Sensor (NP0/NQH) B139 Transfer Case Two/Four Wheel Drive Actuator Position Sensor (NP0/NQH) 1
A16 Transfer Case Four Wheel Drive Actuator (NP0/NQH) A16 Transfer Case Four Wheel Drive Actuator (NP0/NQH) 2
