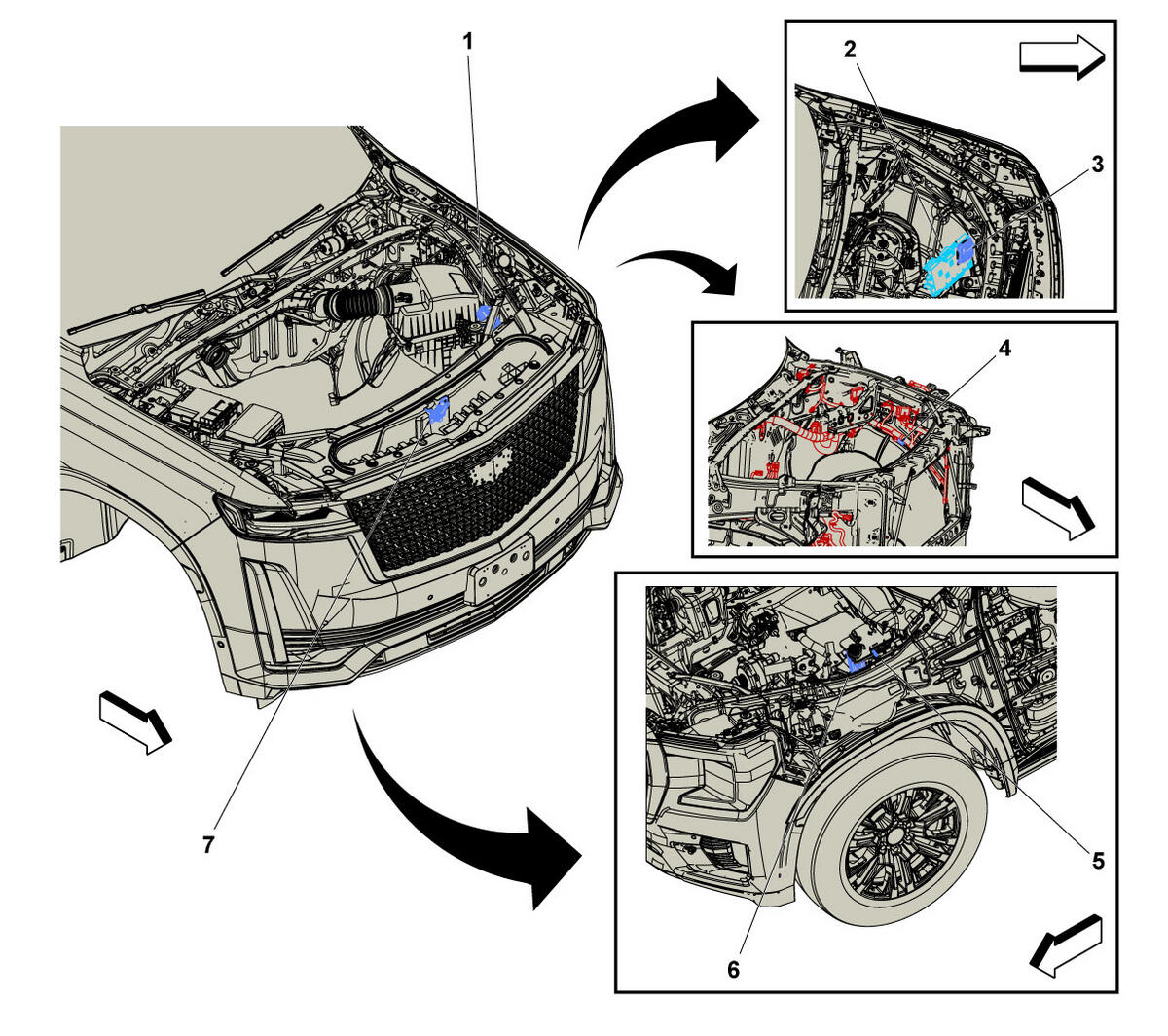

Engine Compartment Components - Left
Engine Compartment Components - Left
| Items |
|---|
| 1. X50UA Accessory Wiring Junction Block - Underhood (LM2) X50UA Accessory Wiring Junction Block - Underhood (LM2) |
| 2. K20 Engine Control Module K20 Engine Control Module X1 (L84/L87) , or K20 Engine Control Module X1 (LM2) , or K20 Engine Control Module X2 (L84/L87) , or K20 Engine Control Module X2 (LM2) , or K20 Engine Control Module X3 (L84/L87) . |
| 3. K71 Transmission Control Module K71 Transmission Control Module |
| 4. R6A Terminating Resistor - High Speed Bus (U1D+TB4-UKC-UKV) R6A Terminating Resistor - High Speed Bus |
| 5. B20A Brake Fluid Level Indicator Switch B20A Brake Fluid Level Indicator Switch |
| 6. K160 Brake System Control Module K160 Brake System Control Module |
| 7. B55 Engine Compartment Cover Switch B55 Engine Compartment Cover Switch |
