Engine Components - Left Front (L84/L87)

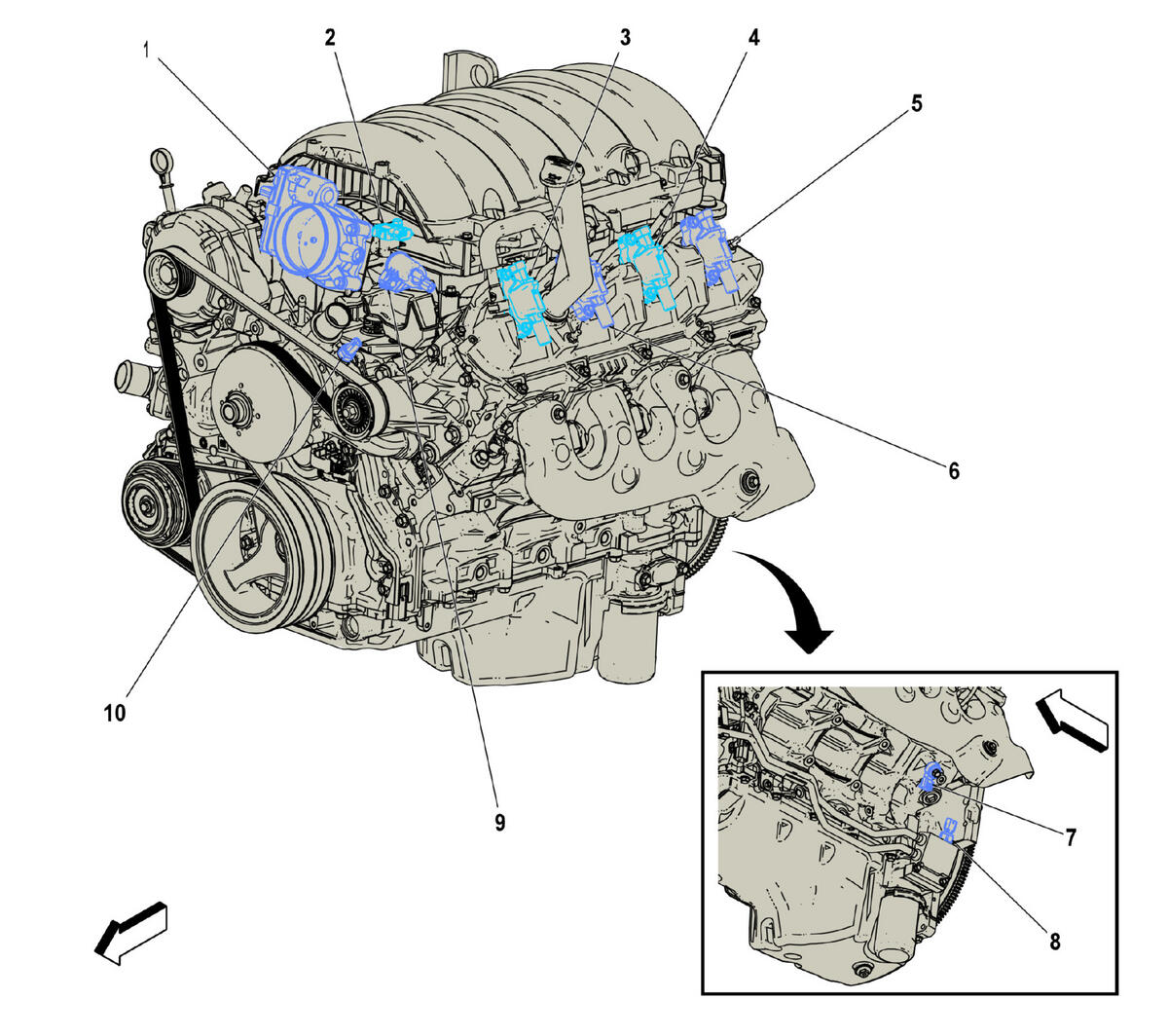

GM5479520Courtesy of GENERAL MOTORS COMPANY
Engine Components - Left Front (L84/L87)

Component Name Callout
Q38 Throttle Body Q38 Throttle Body (L84/L87) 1
B74 Manifold Absolute Pressure Sensor (L84/L87) B74 Manifold Absolute Pressure Sensor (L84/L87) 2
T8A Ignition Coil 1 (L84/L87) T8A Ignition Coil 1 (L84/L87) 3
T8E Ignition Coil 5 (L84/L87) T8E Ignition Coil 5 (L84/L87) 4
T8G Ignition Coil 7 (L84/L87) T8G Ignition Coil 7 (L84/L87) 5
T8C Ignition Coil 3 (L84/L87) T8C Ignition Coil 3 (L84/L87) 6
B68A Knock Sensor 1 (L84/L87) B68A Knock Sensor 1 (L84/L87) 7
B37B Engine Oil Pressure Sensor (L84/L87) B37B Engine Oil Pressure Sensor (L84/L87) 8
Q12 Evaporative Emission Canister Purge Solenoid Valve (L84/L87) Q12 Evaporative Emission Canister Purge Solenoid Valve (L84/L87) 9
B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L84/L87) 10
