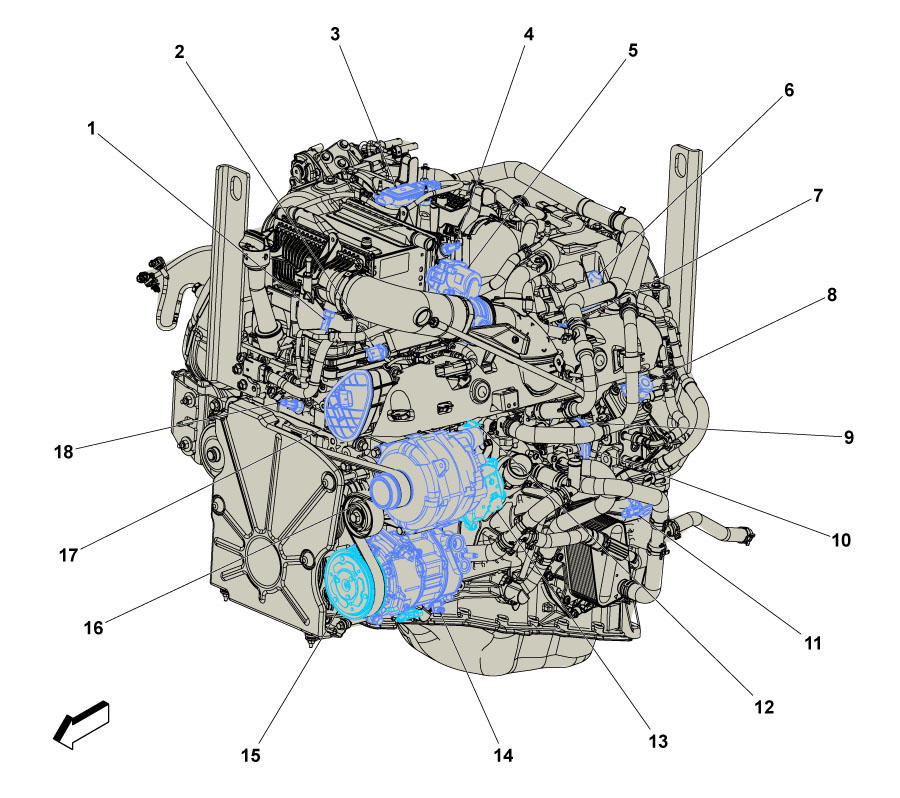

Engine Components - Left Front (LM2)
Engine Components - Left Front (LM2)
| Items |
|---|
| 1. B193B Charge Air Cooler Air Temperature Sensor - Outlet (LM2) B193B Charge Air Cooler Air Temperature Sensor - Outlet (LM2) |
| 2. B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LM2) |
| 3. B195A Nitrogen Oxides Sensor 1 (LM2) B195A Nitrogen Oxides Sensor 1 (LM2) |
| 4. B193A Charge Air Cooler Air Temperature Sensor - Inlet (LM2) B193A Charge Air Cooler Air Temperature Sensor - Inlet (LM2) |
| 5. Q38 Throttle Body Q38 Throttle Body (LM2) |
| 6. Q18B Fuel Pressure Regulator 2 (LM2) Q18B Fuel Pressure Regulator 2 (LM2) |
| 7. B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LM2) B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LM2) |
| 8. Q18C Fuel Pressure Regulator 3 (LM2) Q18C Fuel Pressure Regulator 3 (LM2) |
| 9. B34E Engine Coolant Temperature Sensor 5 (LM2) B34E Engine Coolant Temperature Sensor 5 (LM2) |
| 10. Q97 Engine Coolant Flow Control Valve |
| 11. Q18A Fuel Pressure Regulator 1 (LM2) Q18A Fuel Pressure Regulator 1 (LM2) |
| 12. B34B Engine Coolant Temperature Sensor 2 (LM2) B34B Engine Coolant Temperature Sensor 2 (LM2) |
| 13. Q97 Engine Coolant Flow Control Valve |
| 14. Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve |
| 15. Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch |
| 16. G13 Generator G13 Generator X1 , or G13 Generator X2 . |
| 17. Q22 Intake Manifold Tuning Solenoid Valve (LM2) Q22 Intake Manifold Tuning Solenoid Valve (LM2) |
| 18. B271 Engine Metal Temperature Sensor (LM2) B271 Engine Metal Temperature Sensor (LM2) |
