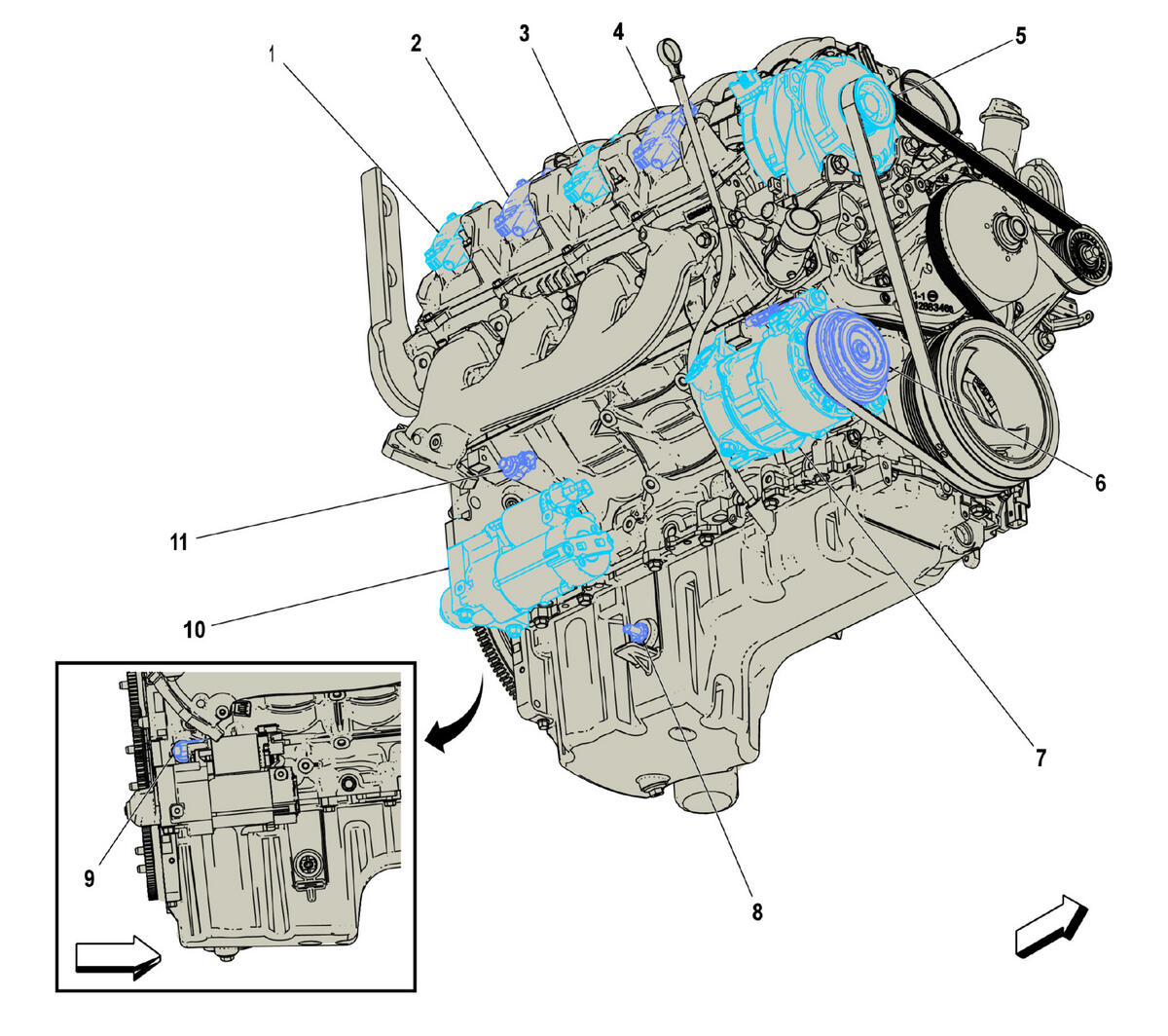

Engine Components - Right Front (L84/L87)
Engine Components - Right Front (L84/L87)
| Component Name | Callout |
|---|---|
| T8H Ignition Coil 8 (L84/L87) T8H Ignition Coil 8 (L84/L87) | 1 |
| T8F Ignition Coil 6 (L84/L87) T8F Ignition Coil 6 (L84/L87) | 2 |
| T8D Ignition Coil 4 (L84/L87) T8D Ignition Coil 4 (L84/L87) | 3 |
| T8B Ignition Coil 2 (L84/L87) T8B Ignition Coil 2 (L84/L87) | 4 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 | 5 |
| Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch | 6 |
| Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve | 7 |
| B35 Engine Oil Level Indicator Switch (L84/L87) B35 Engine Oil Level Indicator Switch (L84/L87) | 8 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L84/L87) | 9 |
| M64 Starter M64 Starter X1 (L84/L87) , or M64 Starter X2 | 10 |
| B68B Knock Sensor 2 (L84/L87) B68B Knock Sensor 2 (L84/L87) | 11 |
