Engine Components - Right Front (LM2)

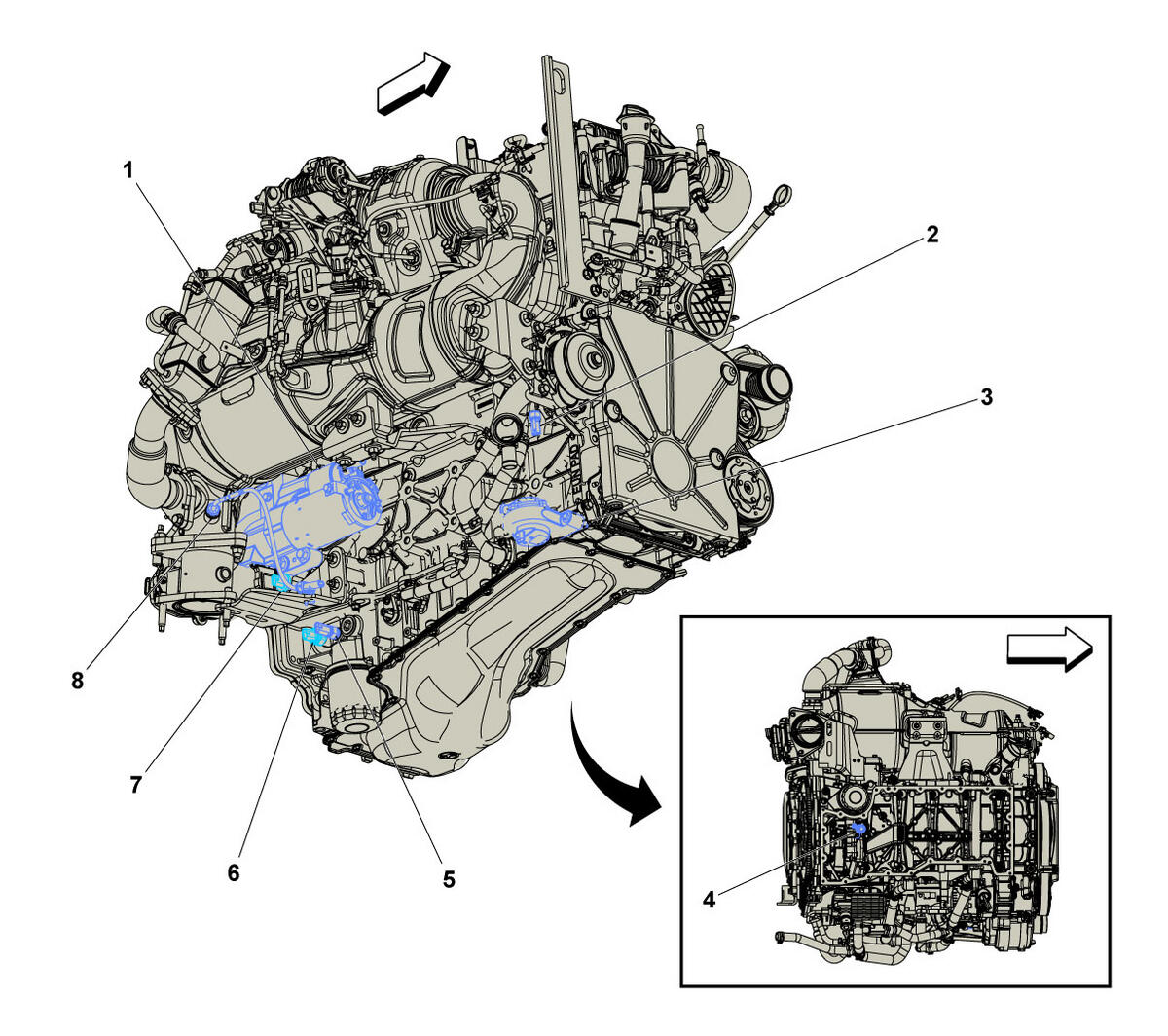

GM5731553Courtesy of GENERAL MOTORS COMPANY
Engine Components - Right Front (LM2)

Items
1. M64 Starter
M64 Starter X1 (LM2) , or
M64 Starter X2 .
2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LM2)
3. G17 Heater Coolant Pump G17 Heater Coolant Pump (LM2)
4. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LM2)
5. B36 Engine Oil Temperature Sensor (LM2) B36 Engine Oil Temperature Sensor (LM2)
6. B37B Engine Oil Pressure Sensor (L84/L87) B37B Engine Oil Pressure Sensor (LM2)
7. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LM2)
8. B131C Exhaust Gas Temperature Sensor 3 (LM2) B131C Exhaust Gas Temperature Sensor 3 (LM2)
