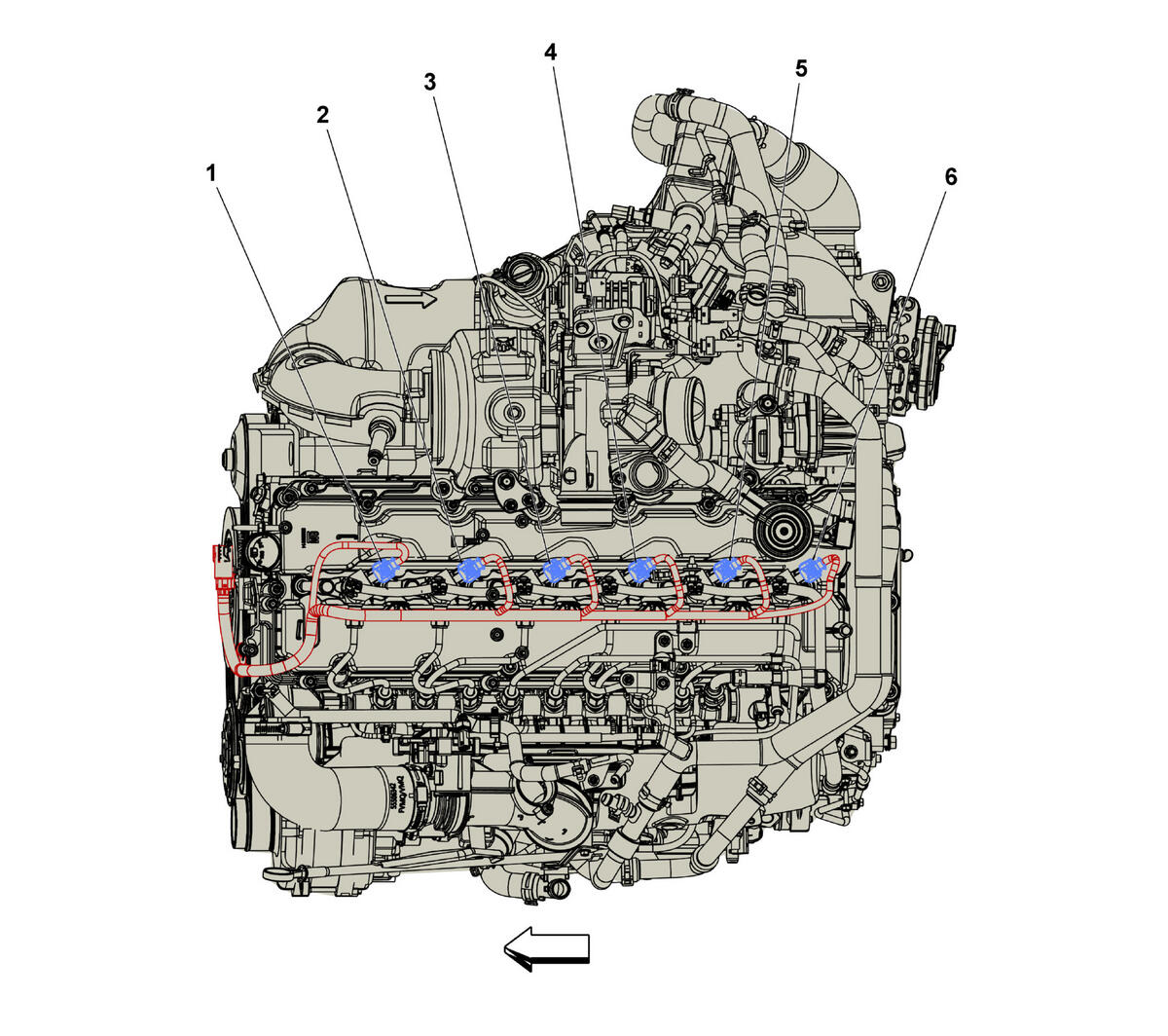

Engine Components - Top (LM2)

GM5034212Courtesy of GENERAL MOTORS COMPANY
Engine Components - Top (LM2)

Component Name Callout
Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LM2) 1
Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LM2) 2
Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LM2) 3
Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LM2) 4
Q17E Fuel Injector 5 Q17E Fuel Injector 5 (LM2) 5
Q17F Fuel Injector 6 Q17F Fuel Injector 6 (LM2) 6
