Installation Procedure

  1. GM5549533Courtesy of GENERAL MOTORS COMPANY

    Column Lock Module (1) - Install

  2. GM5549529Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Lock Control Module Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

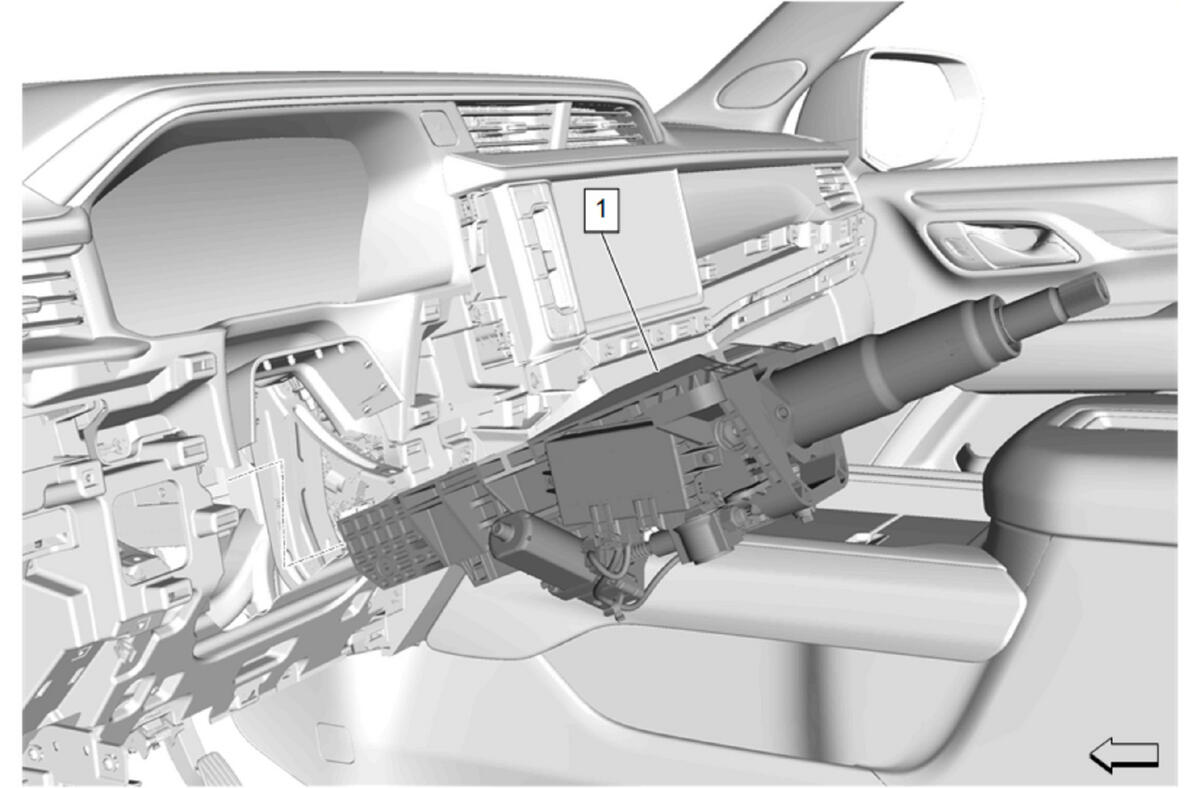

  3. GM5607636Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install

  4. Connect the electrical connectors attached to the steering column.

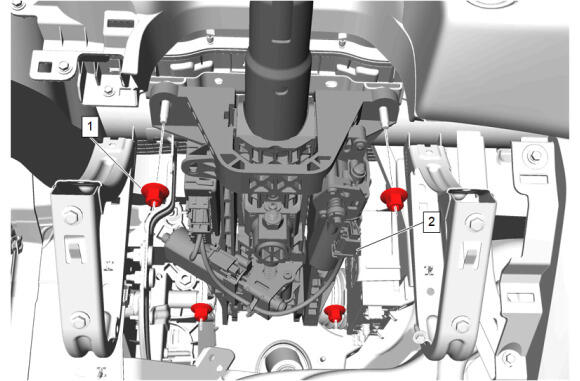

  5. GM5596440Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (1) - Install and tighten [ 4x ] - Fastener Specifications

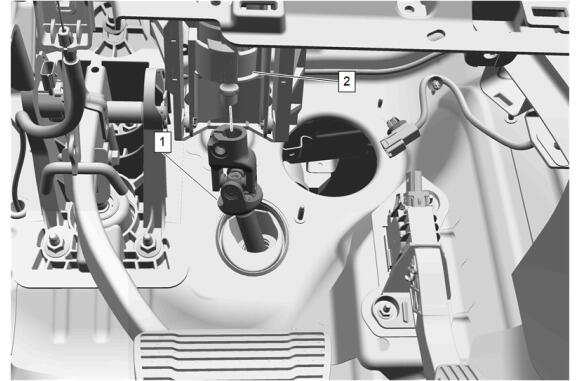

  6. GM5519908Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft (1) - Install

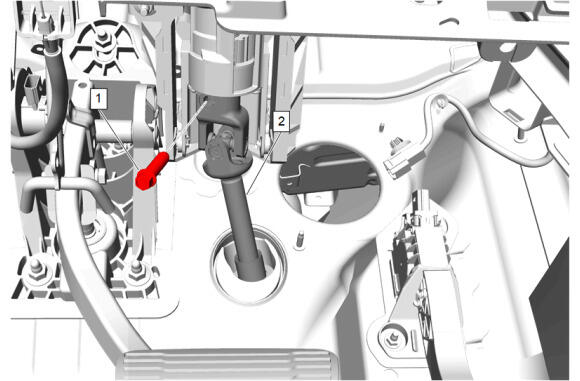

  7. GM5519907Courtesy of GENERAL MOTORS COMPANY

    Upper Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications

  8. GM5519906Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (1) - Install

  9. GM5519904Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications

  10. Enable the SIR System. SIR Disabling and Enabling

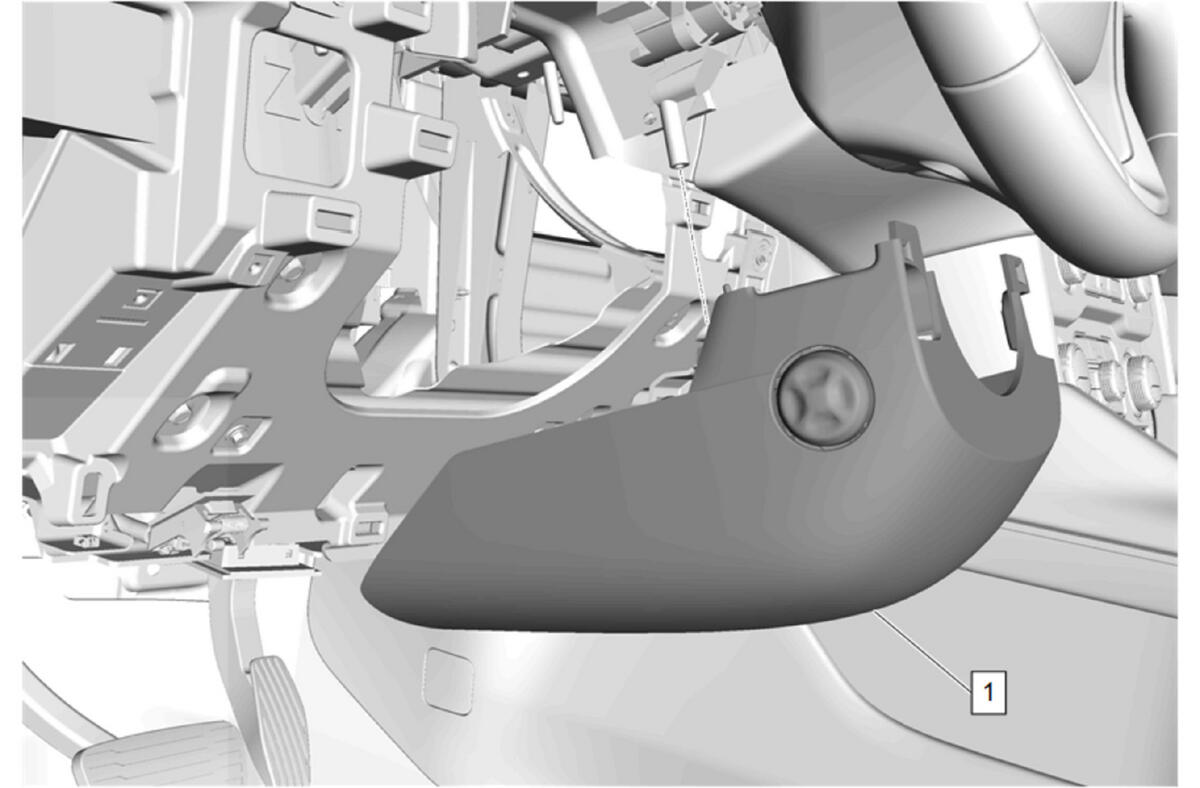

  11. GM5598937Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (1) - Install

  12. Connect the electrical connector.

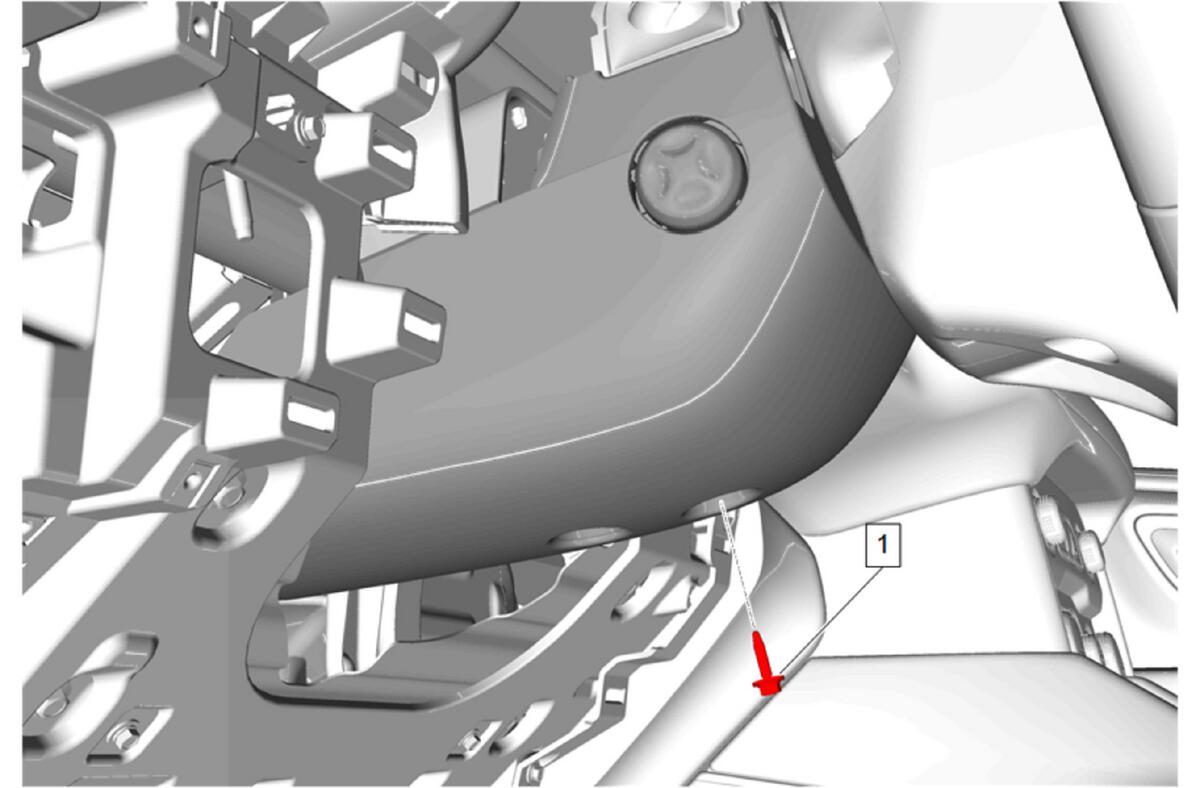

  13. GM5598936Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

  14. GM5589913Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  15. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  16. GM5589898Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  17. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  18. Turn the steering wheel to the centered position.
  19. GM5527242Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  20. GM5589884Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  21. GM5517090Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

  22. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

  23. Hood Primary Latch Release Cable Handle (1) - Install

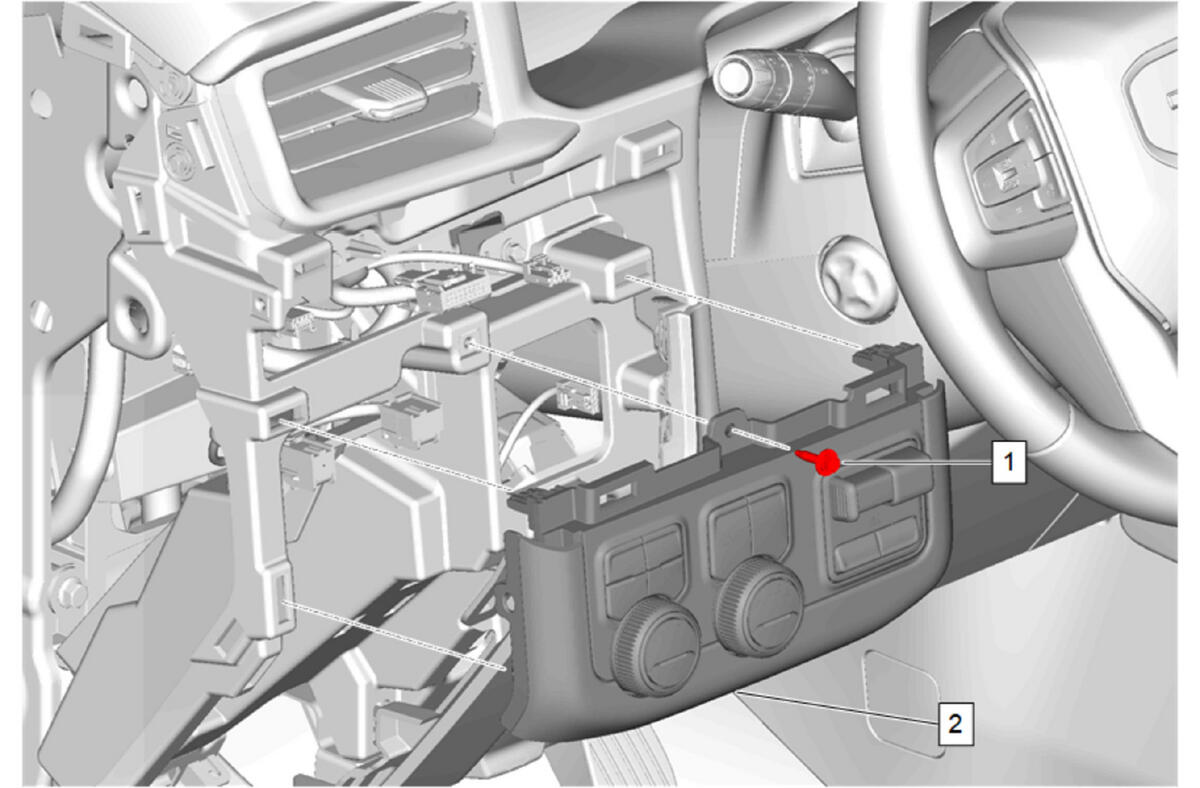

  24. GM5596403Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  25. Instrument Panel Switch Trim Plate (2) - Install
  26. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

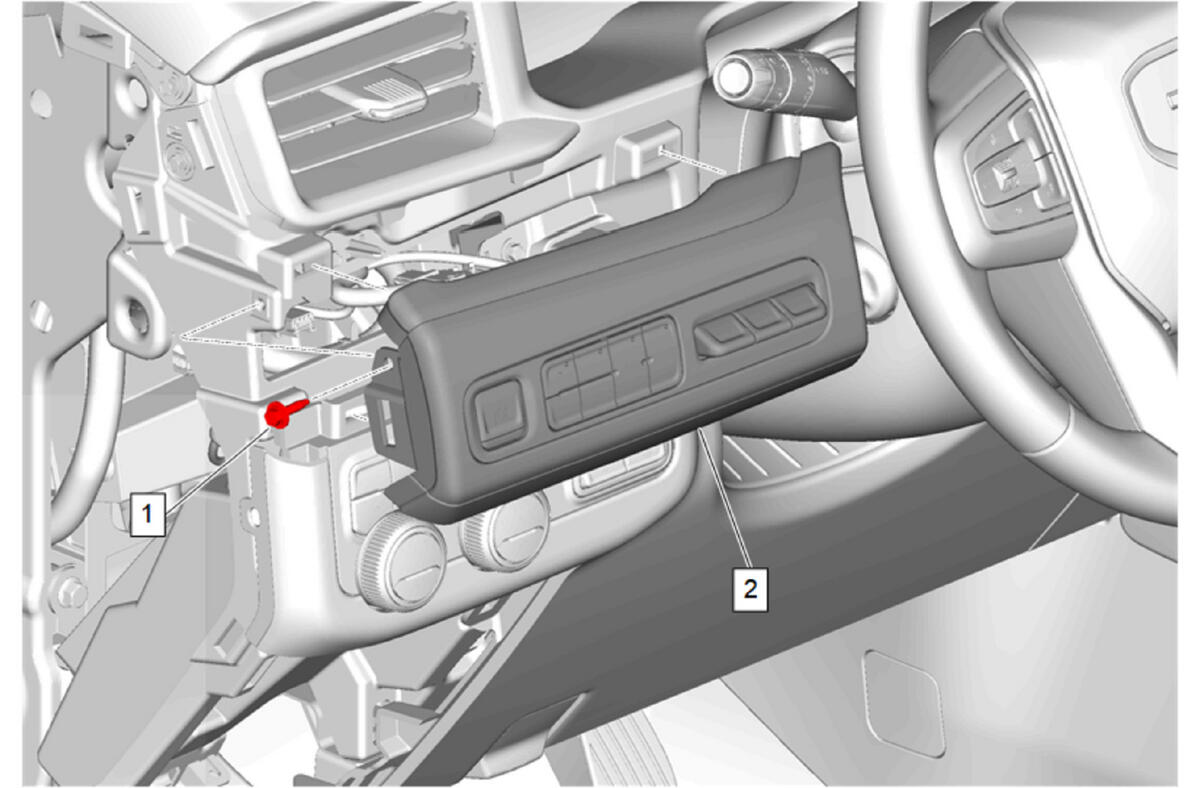

  27. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  28. Instrument Panel Trim Pad (2) - Install
  29. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications

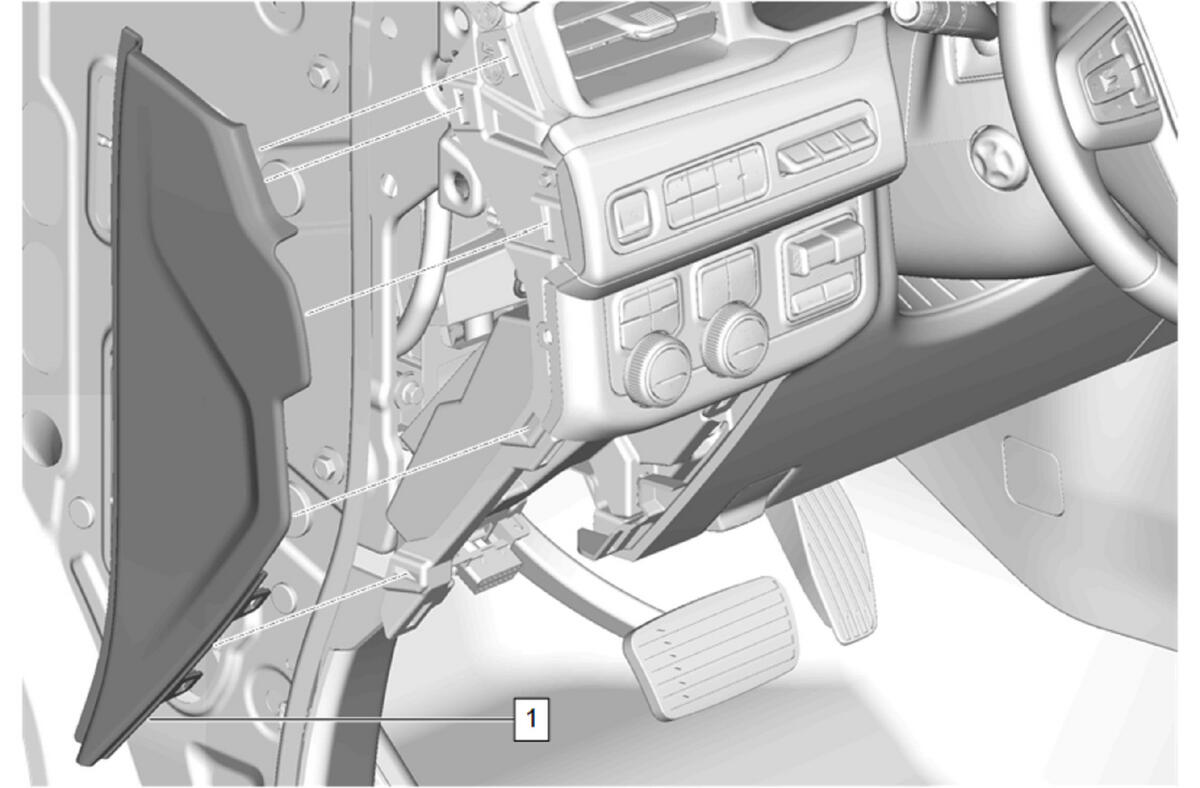

  30. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

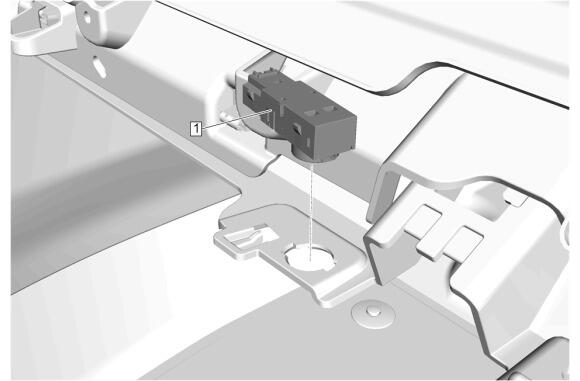

  31. GM5562886Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  32. Front Floor Courtesy Lamp (1) - Install

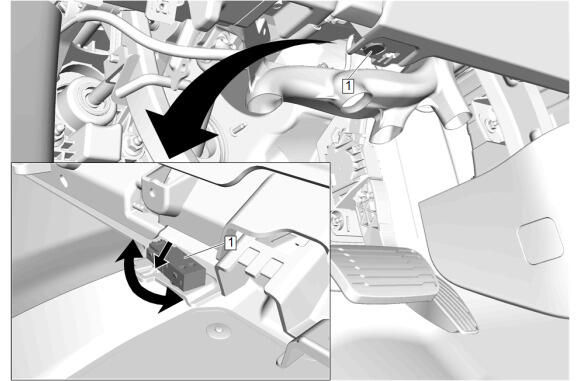

  33. GM5562885Courtesy of GENERAL MOTORS COMPANY

    Rotate the front floor courtesy lamp (1) a quarter turn clockwise to secure.

  34. Secure the retaining tab.

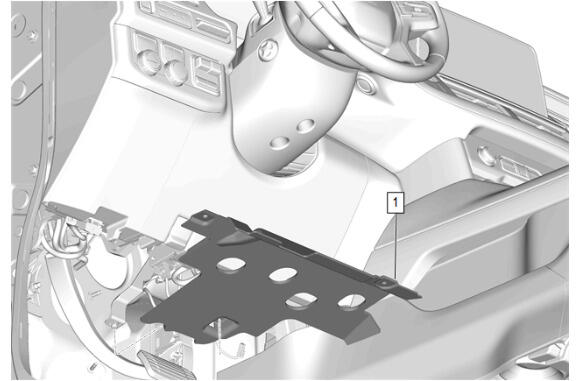

  35. GM5515685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

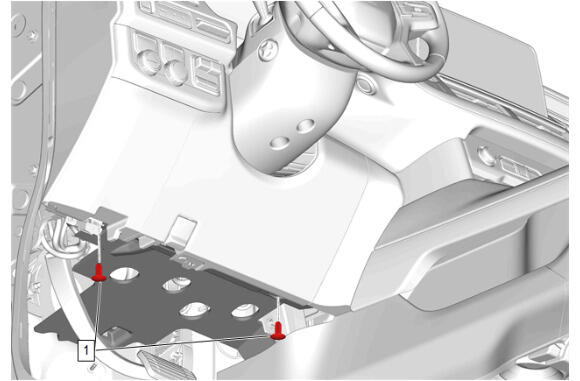

  36. GM5515684Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [ 2x ]

  37. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  38. Program the column lock module. Control Module References
