Fastener Specifications

GM5504064Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [ 4x ] - - 9 N.m (80 lb in) Front Side Door Latch Replacement (without NWM) , or Front Side Door Latch Replacement (with NWM)
GM5504186Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [ 2x ] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement

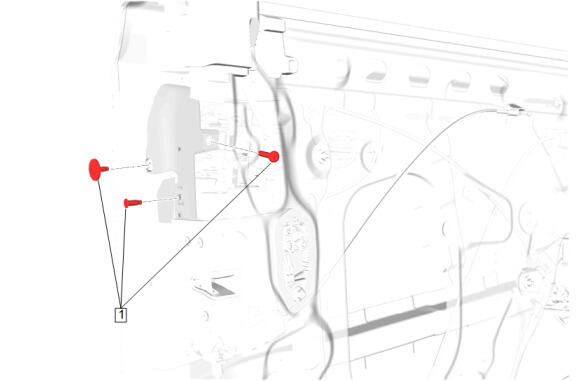

GM5668889Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Lock Cover Bolt [ 3x ] - - 2.2 N.m (19 lb in) Front Side Door Lock Cover Replacement

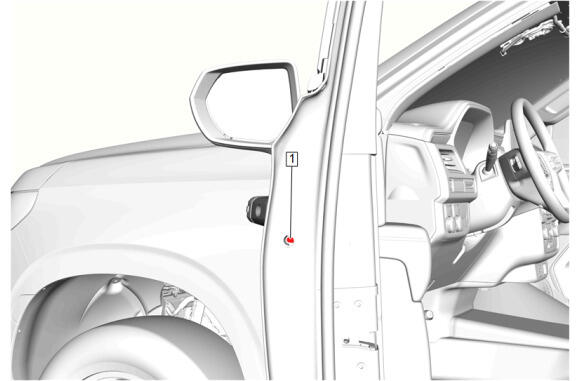

GM5520677Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Cylinder Bezel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Front Side Door Lock Cylinder Bezel Replacement (without NWM) , or Front Side Door Lock Cylinder Bezel Replacement (with NWM)
GM5442374Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement (without NWM) , or Front Side Door Outside Handle Bracket Replacement (with NWM)

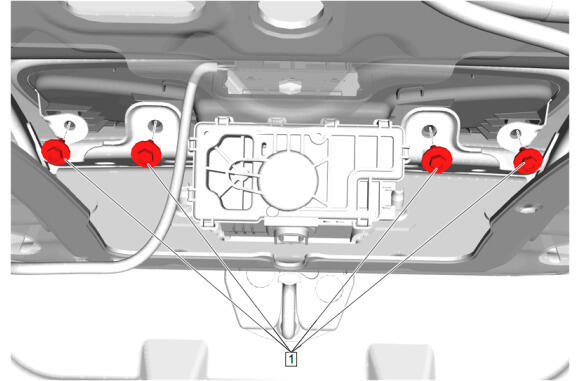

GM5635630Courtesy of GENERAL MOTORS COMPANY
Rear Closure Fixed Handle Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Fixed Handle Bolt [ 4x ] - - 4.7 N.m (42 lb in) Rear Closure Fixed Handle Applique Replacement

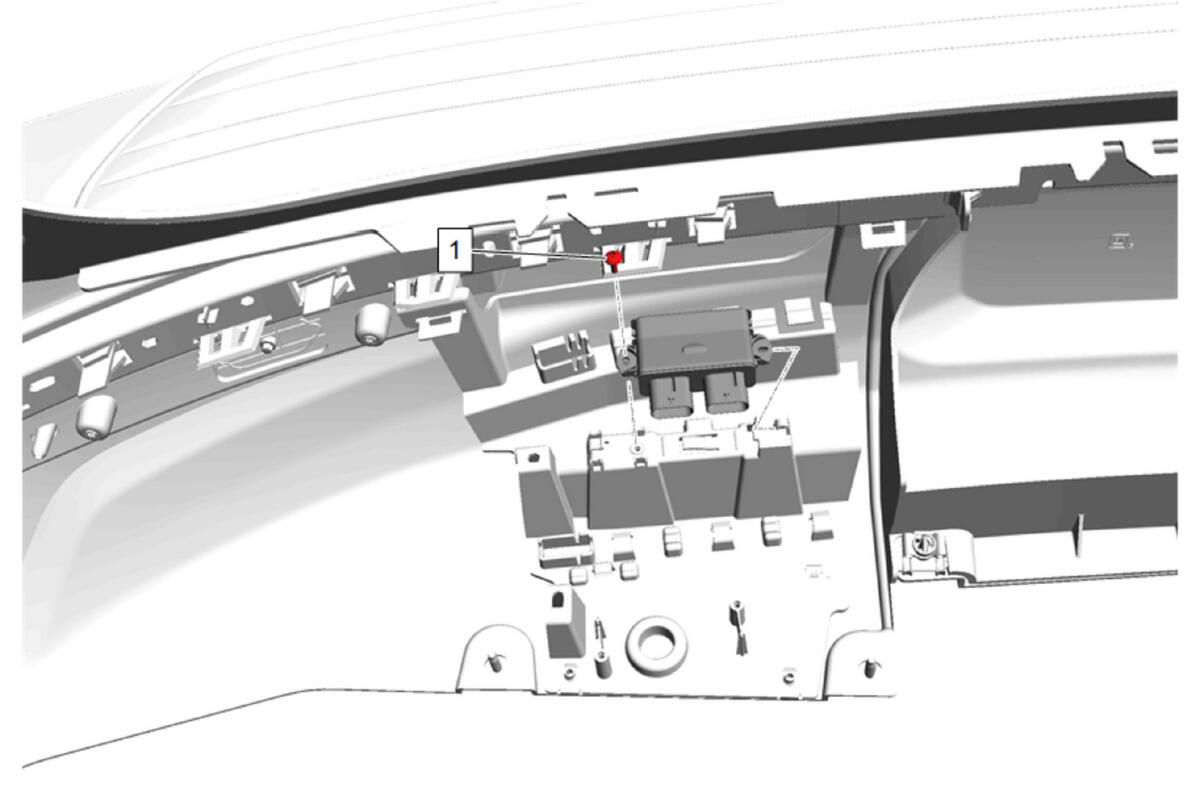

GM5644346Courtesy of GENERAL MOTORS COMPANY
Rear Closure Hands Free Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Hands Free Module Bolt - - 1 N.m (9 lb in) Rear Closure Hands Free Module Replacement

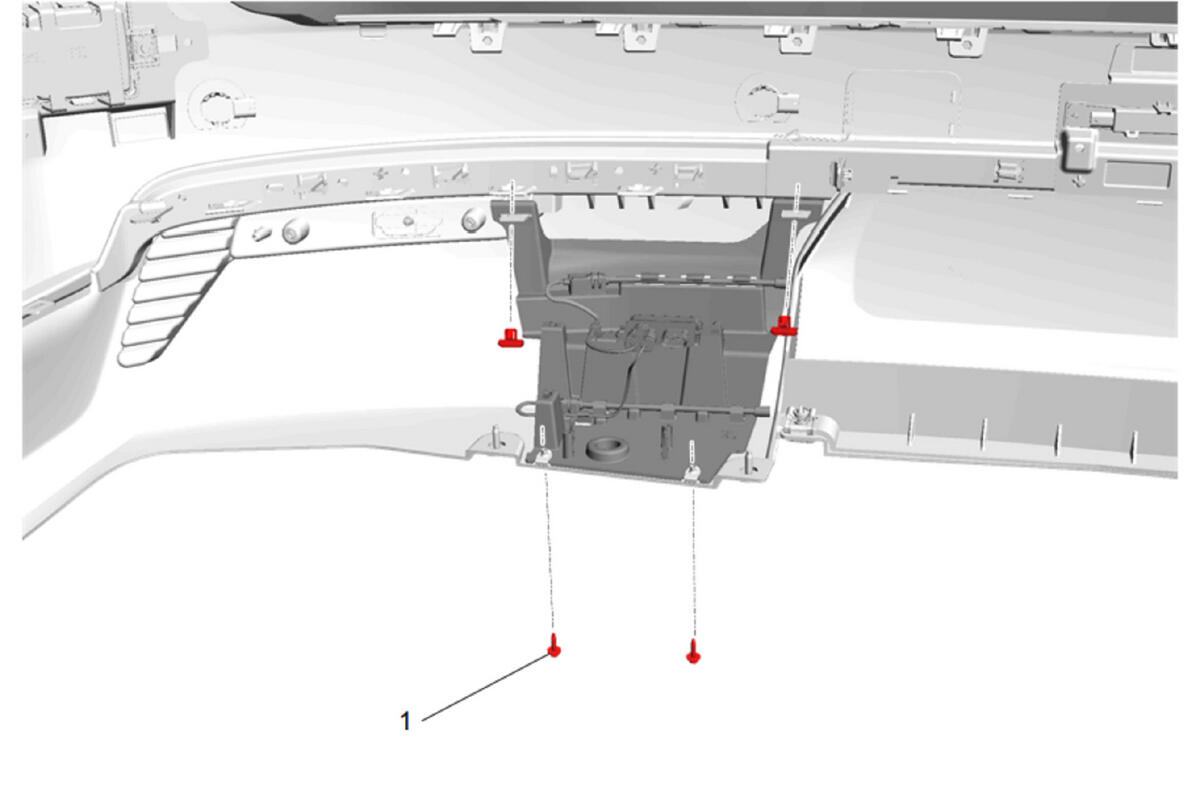

GM5644424Courtesy of GENERAL MOTORS COMPANY
Rear Closure Hands Free Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Hands Free Module Bracket Bolt [ 2x ] - - 2.5 N.m (22 lb in) Rear Closure Hands Free Module Bracket Replacement

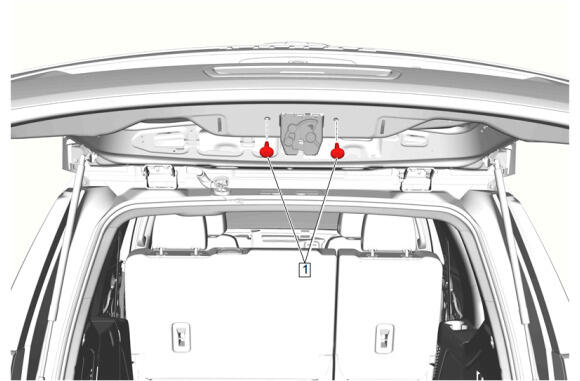

GM5522794Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [ 2x ] - - 22 N.m (16 lb ft) Liftgate Latch Replacement

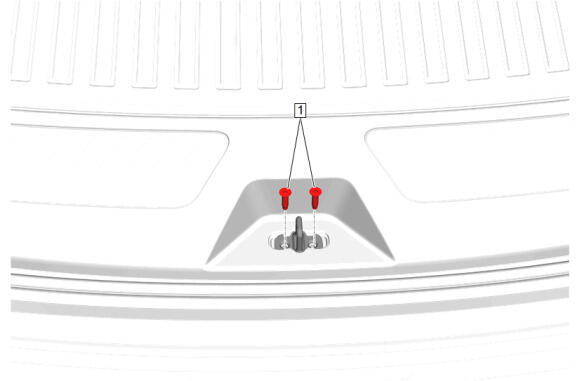

GM5521065Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [ 2x ] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

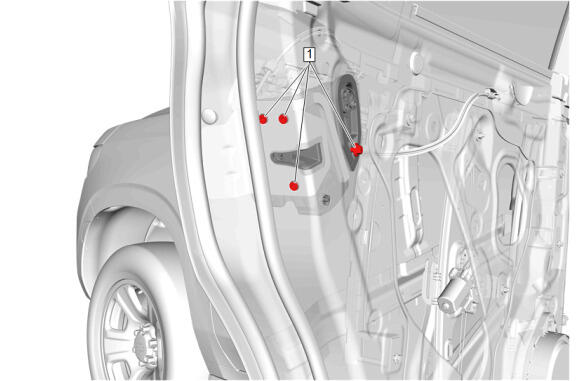

GM5521208Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [ 4x ] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement

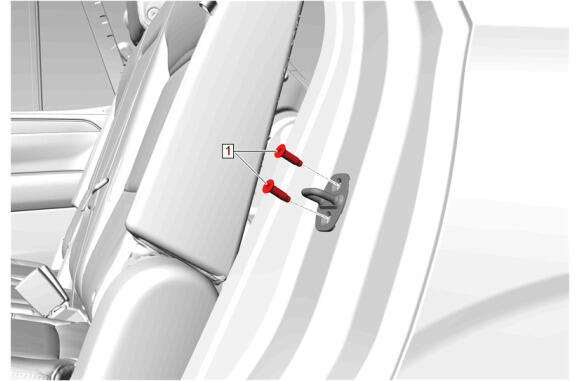

GM5521971Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [ 2x ] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

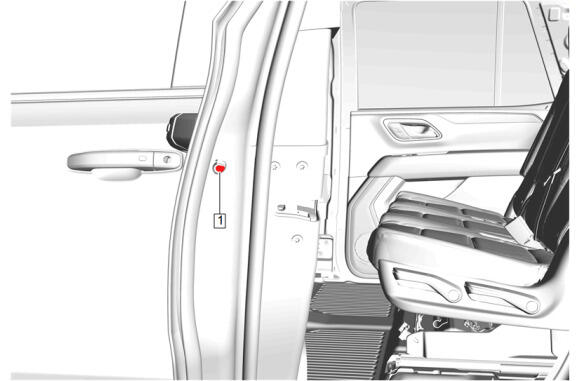

GM5521961Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Cylinder Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Rear Side Door Lock Cylinder Opening Cover Replacement
GM5521952Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
